Marker Beacon Annunciations are displayed on the PFD to the left of the Selected Altitude. Outer marker
reception is indicated in blue, middle in yellow, and inner in white. Refer to the Audio Panel and CNS Section
for more information on Marker Beacon Annunciations.

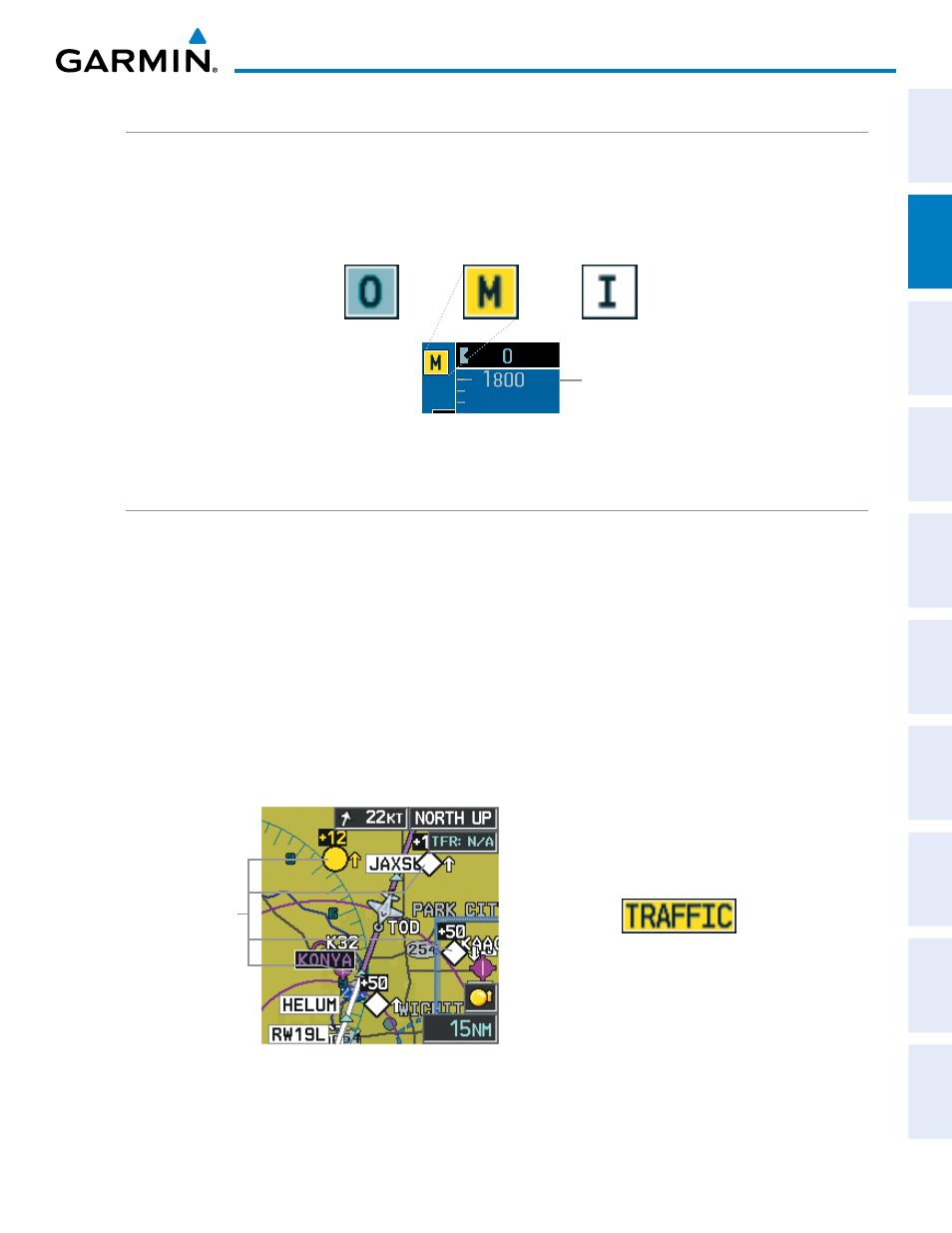

Figure 2-42 Marker Beacon Annunciations
Inner Marker Middle Marker Outer Marker
Altimeter
TRAFFIC ANNUNCIATION
The System displays traffic symbolically on the Inset Map (PFD), the Navigation Map Page (MFD), and various
other MFD page maps. Refer to the Hazard Avoidance Section for more details about the Traffic Information
Service (TIS) and optional Traffic Advisory Systems (TAS). When a traffic advisory (TA) is detected, the following
automatically occurs:
• The PFD Inset Map is enabled, displaying traffic (Figure 2-43)
• A flashing black-on-yellow TRAFFIC annunciation (Figure 2-44) appears to the top left of the Attitude
Indicator for five seconds and remains displayed until no TAs are detected in the area
• A single “Traffic” aural alert is generated, unless an optional Traffic Advisory System (TAS) is installed (refer to
the applicable TAS documentation for alerts generated by TAS equipment)
If additional TAs appear, new aural and visual alerts are generated.
Figure 2-43 Inset Map with Traffic Displayed
Traffic
Symbols
Figure 2-44 Traffic Annunciation
