Garmin G1000 King Air C90GT - Manual (Page 354)

Garmin G1000 Pilot’s Guide for the Hawker Beechcraft C90A/GT 190-00663-01 Rev. A 340
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
6.3 STORMSCOPE WX-500 SERIES II WEATHER MAPPING SENSOR
(OPTIONAL)
NOTE: The Stormscope system is not intended for hazardous thunderstorm penetration. Weather information
on the G1000 MFD is approved for weather avoidance only. Refer to the WX-500 User’s Guide for a detailed
description of Stormscope operation.
NOTE: L-3 STORMSCOPE® WX-500 Lightning and GDL 69/69A XM® Satellite Weather Lightning are
mutually exclusive.
The following pages can display Stormscope data:
• PFD Inset Map • AUX - Trip Planning Page
• Stormscope Page • Nearest Pages
• Navigation Map
To display Stormscope data on any map besides the Stormscope Page, select the MAP Softkey (or the INSET
Softkey for the PFD Inset Map), then select the STRMSCP Softkey. These pages can also display cell or strike data
using the yellow lightning strike symbology shown in Table 6-7.

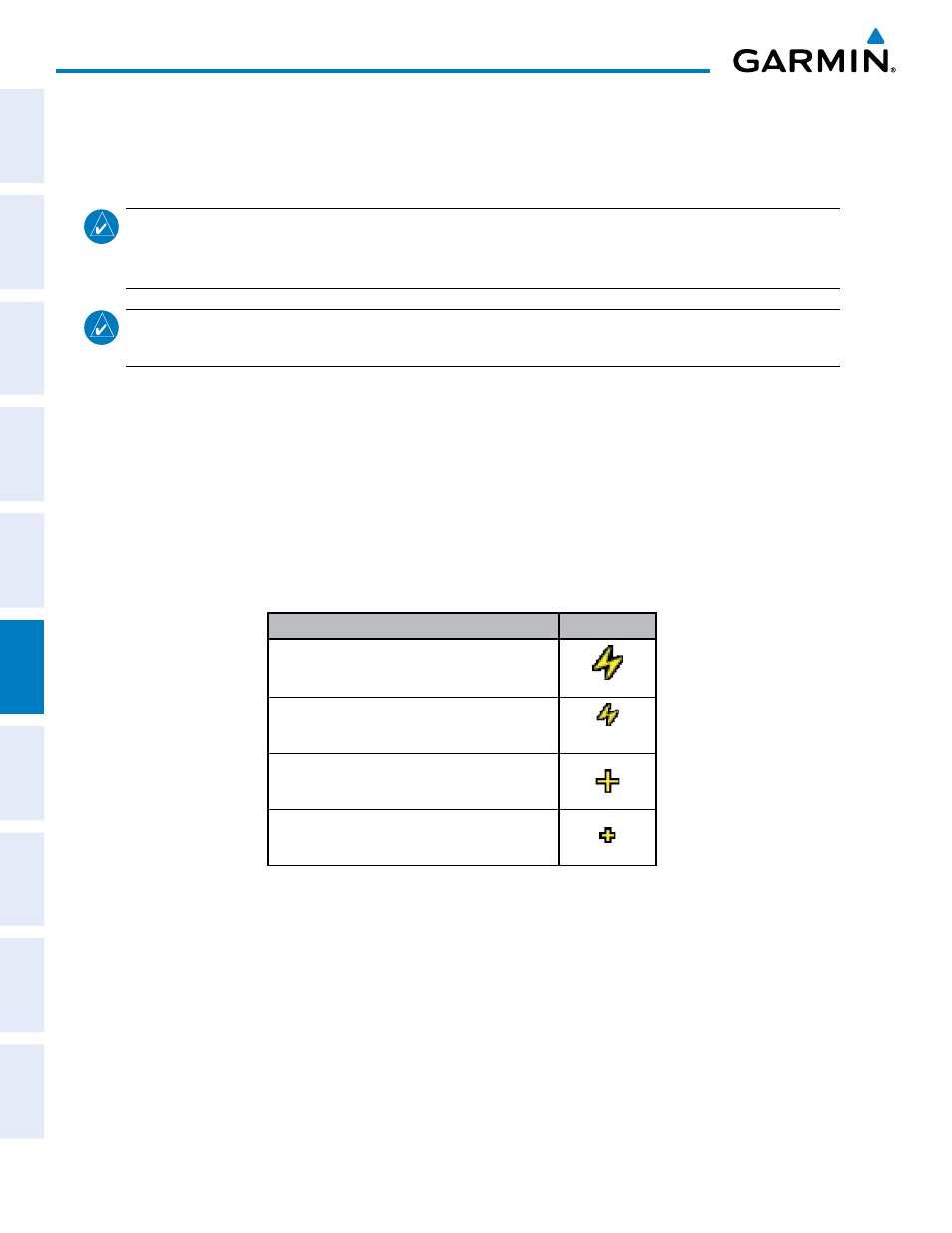

Lightning Age Symbol
Strike is less than 6 seconds old
Strike is between 6 and 60 seconds old
Strike is between 1 and 2 minutes old
Strike is between 2 and 3 minutes old
Table 6-7 Lightning Age and Symbols
