APPENDIX A

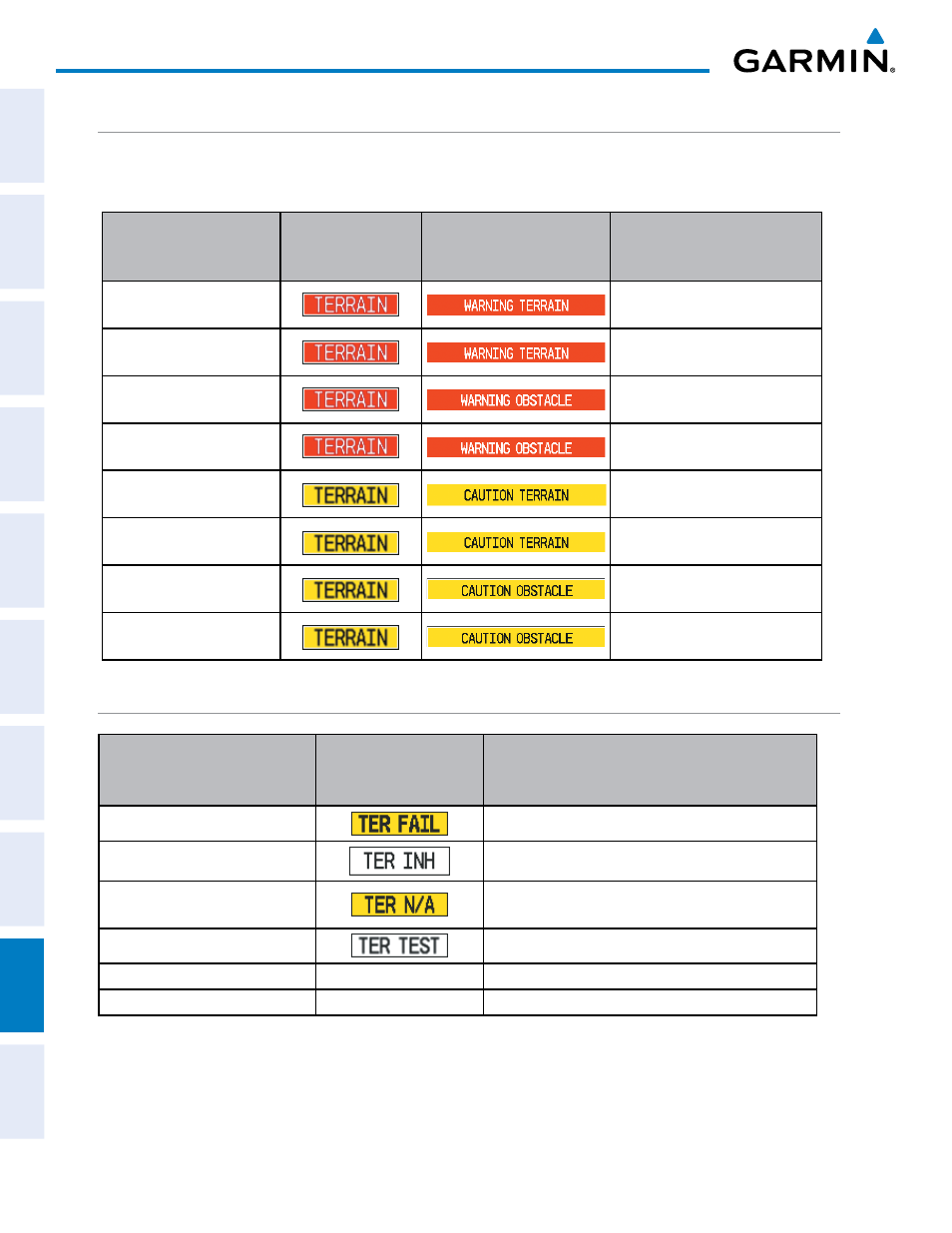

TERRAIN-SVS ALERTS
Annunciations appear on the PFD and MFD. Pop-up alerts appear only on the MFD. For more information
on Terrain-SVS, refer to the Hazard Avoidance Section.
Alert Type
PFD/MFD
TERRAIN-SVS Page
Annunciation
Pop-Up Alert
(MFD Navigation Map
Page)
Aural Message
Reduced Required Terrain
Clearance Warning (RTC)
“Warning; Terrain, Terrain”
Imminent Terrain Impact
Warning (ITI)
“Warning; Terrain, Terrain”
Reduced Required Obstacle
Clearance Warning (ROC)
“Warning; Obstacle, Obstacle”
Imminent Obstacle Impact
Warning (IOI)
“Warning; Obstacle, Obstacle”
Reduced Required Terrain
Clearance Caution (RTC)
“Caution; Terrain, Terrain”
Imminent Terrain Impact
Caution (ITI)
“Caution; Terrain, Terrain”
Reduced Required Obstacle
Clearance Caution (ROC)
“Caution; Obstacle, Obstacle”
Imminent Obstacle Impact
Caution (IOI)
“Caution; Obstacle, Obstacle”
TERRAIN-SVS STATUS ANNUNCIATIONS
Alert Type
PFD/MFD
TERRAIN-SVS Page
Annunciation
Aural Message
System Test Fail “Terrain System Failure”
Terrain Alerting is disabled None
No GPS position or excessively
degraded GPS signal
“Terrain System Not Available”
System Test in progress None
System Test pass None Single Chime
GPS signal is re-established None “Terrain System Available”
