190-00663-01 Rev. A Garmin G1000 Pilot’s Guide for the Hawker Beechcraft C90A/GT 351
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX

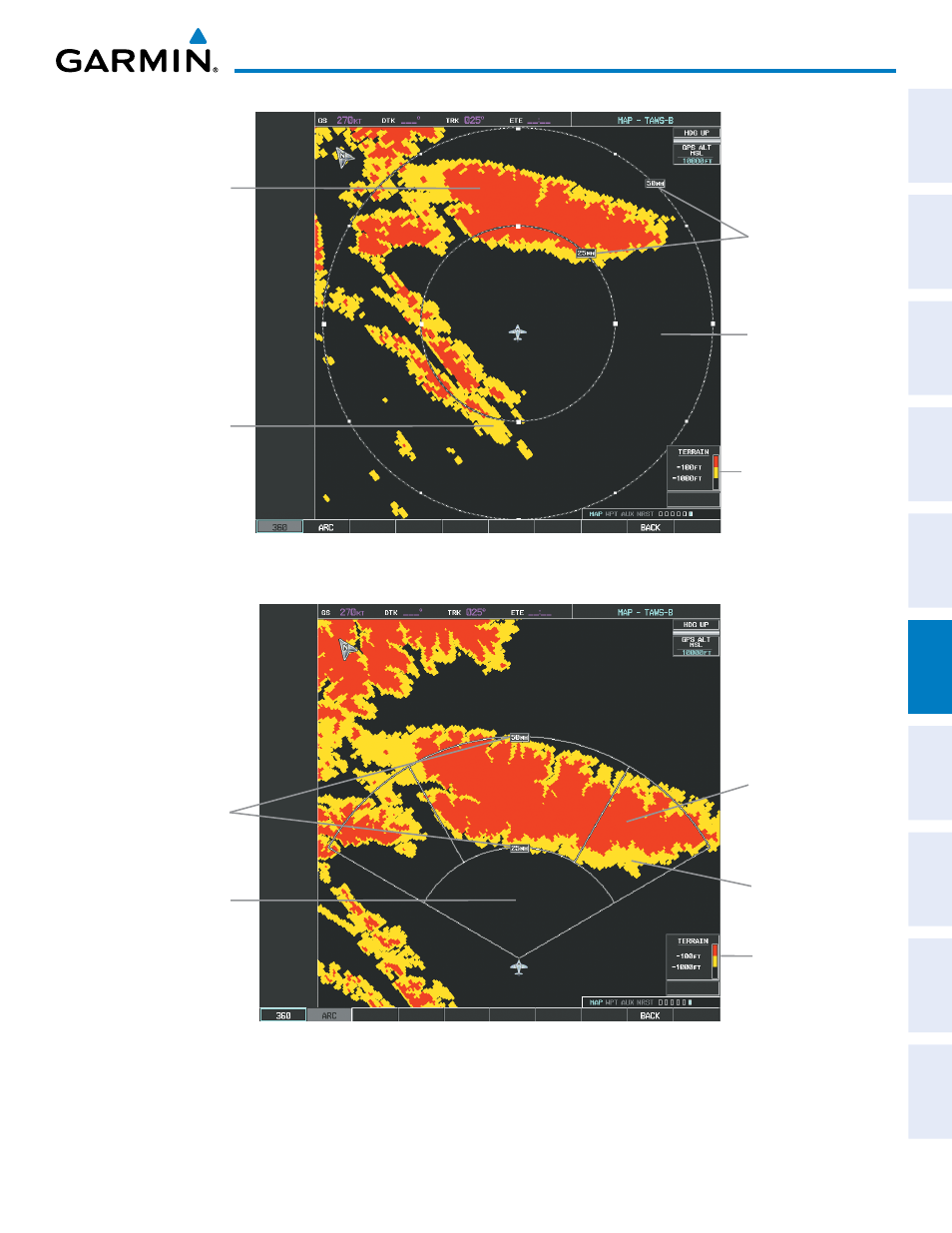

Figure 6-75 TAWS-B Page, 360º View
Yellow Terrain
(Caution - Terrain
Between 100’ and
1000’ Below the
Aircraft Altitude)
Red Terrain
(Warning - Terrain
Above or Within
100’ Below the
Aircraft Altitude)
Terrain Legend
Map Range
Black Terrain
(Terrain More than
1000’ Below the
Aircraft Altitude)
Figure 6-76 TAWS-B Page (ARC View)
Red Terrain
(Warning - Terrain
Above or Within
100’ Below the
Aircraft Altitude)
Terrain Legend
Map Range Arc
Black Terrain
(Terrain More than
1000’ Below the
Aircraft Altitude)
Yellow Terrain
(Caution - Terrain
Between 100’
and 1000’ Below
the Aircraft
Altitude)
