190-00663-01 Rev. A Garmin G1000 Pilot’s Guide for the Hawker Beechcraft C90A/GT
ENGINE INDICATION SYSTEM
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
93
ENGINE INDICATION SYSTEM
OIL PRESSURE
The Oil Pressure Gauge is located beneath the Fuel Flow gauge. Oil pressure is displayed in pounds per
square inch (psi) from 0 to 200 psi. Safe operating pressure is more than 80 psi and less than 100 psi. A red
triangle represents the maximum oil pressure 200 psi.

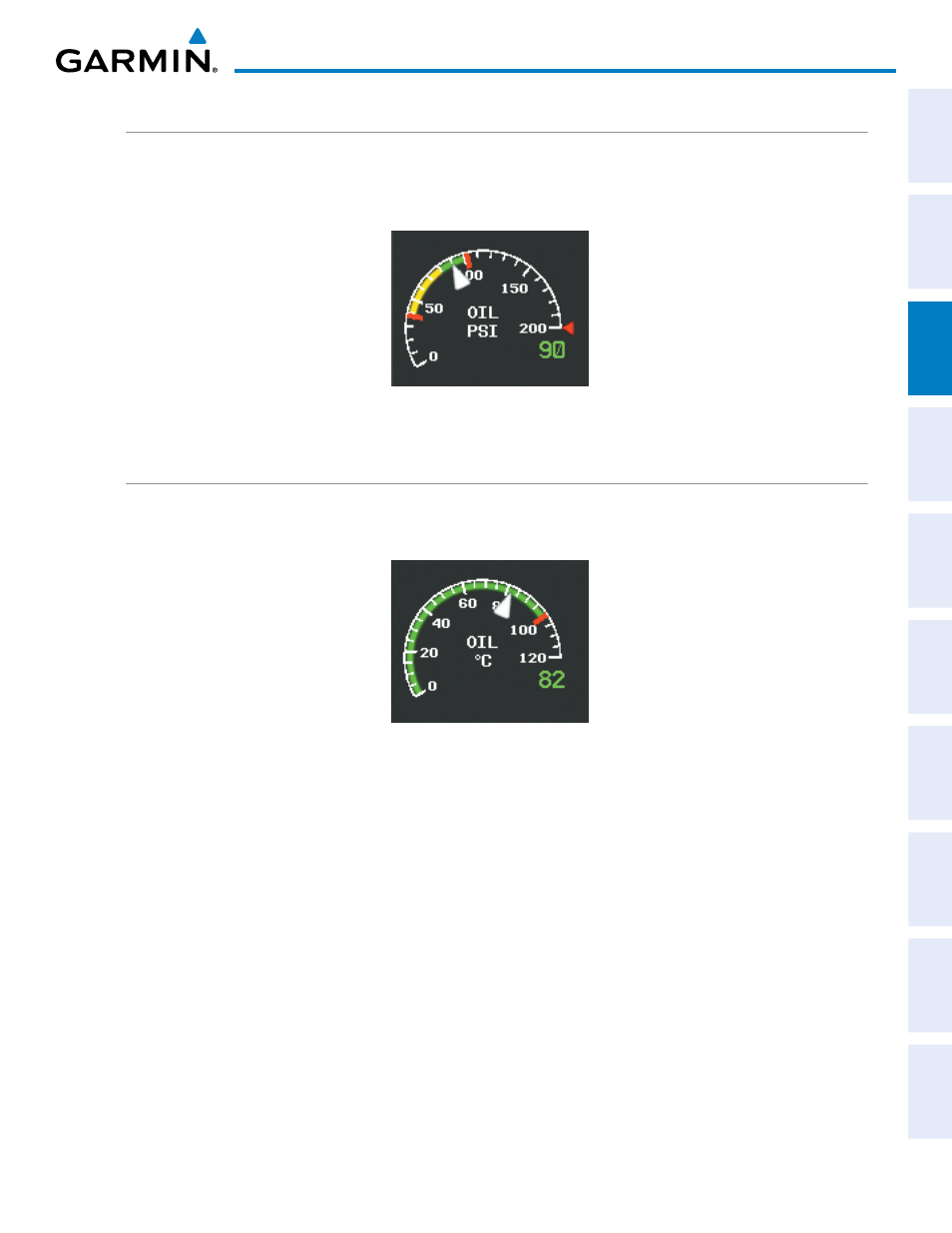

Figure 3-10 Oil Pressure Gauge
OIL TEMPERATURE
The Oil Temperature Gauge is located beneath the Oil Pressure gauge. Oil temperature is displayed in
degrees Celsius (°C). Safe operating range for oil temperature is 0 to 99° C
Figure 3-11 Oil Temperature Gauge
