Garmin G1000 King Air C90GT - Manual (Page 67)

190-00663-01 Rev. A Garmin G1000 Pilot’s Guide for the Hawker Beechcraft C90A/GT 53
FLIGHT INSTRUMENTS
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
2
3
4
6
1
8
7
11
12
16
9
14
10
5
15
13

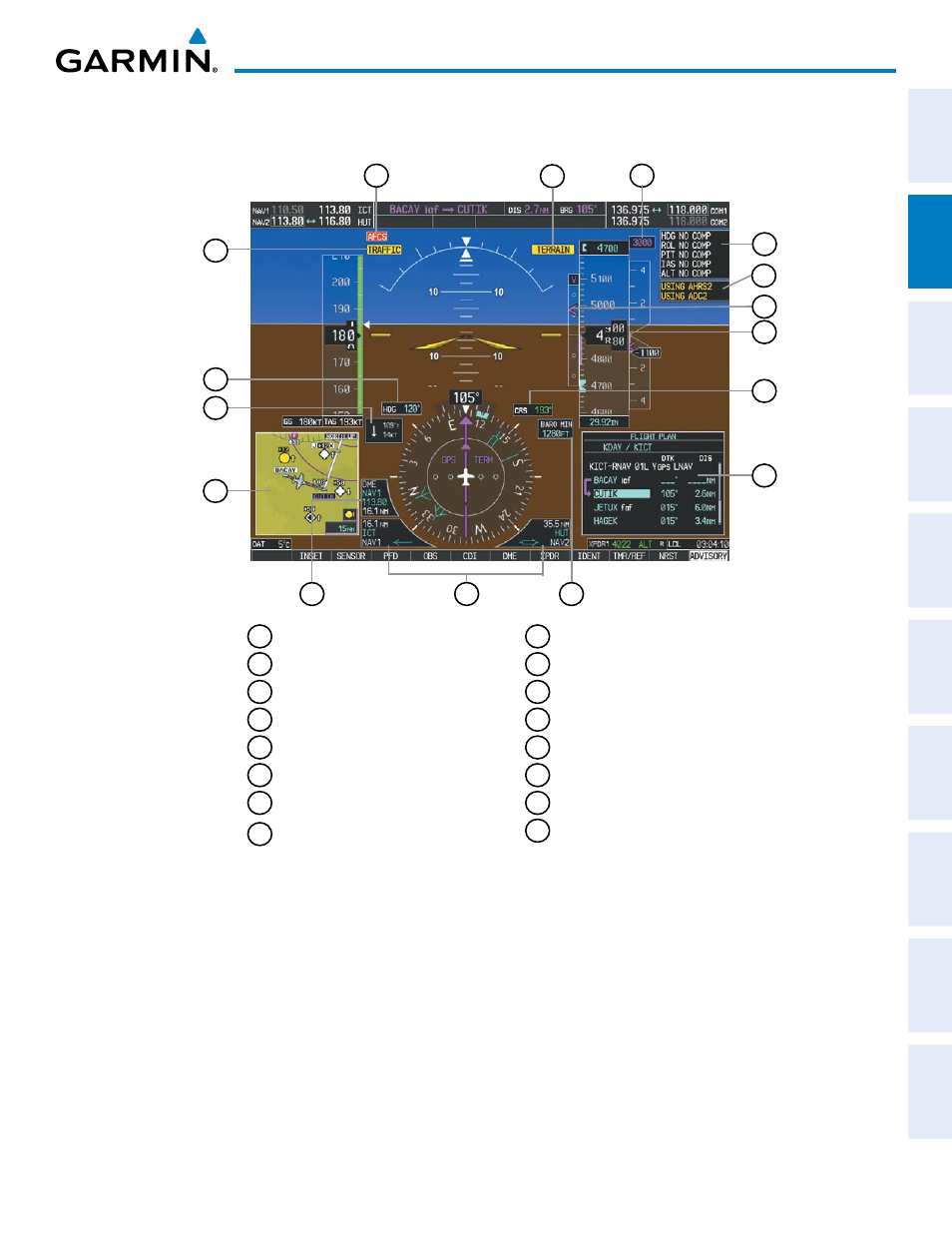

1 Traffic Annunciation
2 Selected Heading
3 Wind Data
4 Inset Map
5 DME Information Window (optional)
6 Bearing Information Windows
7 Minimum Descent Altitude/
Decision Height
8 Flight Plan Window
9 Selected Course
10 Vertical Speed Required
11 Vertical Deviation Indicator (VDI)
12 Reversionary Sensor Window
13 Comparator Window
14 Current VNV Target Altitude
15 Terrain Annunciation
16 AFCS Status Annunciation
Figure 2-2 Additional PFD Information
