ICING (CIP & SLD)
Current Icing Product (CIP) data (Figure 6-37) shows a graphical view of the current icing environment.
Icing severity is displayed in four categories: light, moderate, severe, and extreme (not specific to aircraft type).
The CIP product is not a forecast, but a presentation of the current conditions at the time of the analysis.
Supercooled Large Droplet (SLD) icing conditions are characterized by the presence of relatively large,
super cooled water droplets indicative of freezing drizzle and freezing rain aloft. SLD threat areas are depicted
as magenta dots over the CIP colors.
Displaying Icing data:
1) Select the Weather Data Link Page.
2) Select the MORE WX Softkey.
3) Select the ICNG Softkey.
4) Select the desired altitude level: 1,000 feet up to 30,000 feet. Select the NEXT or PREV Softkey to cycle through
the altitude softkeys. The ICNG Softkey label changes to reflect the altitude selected.

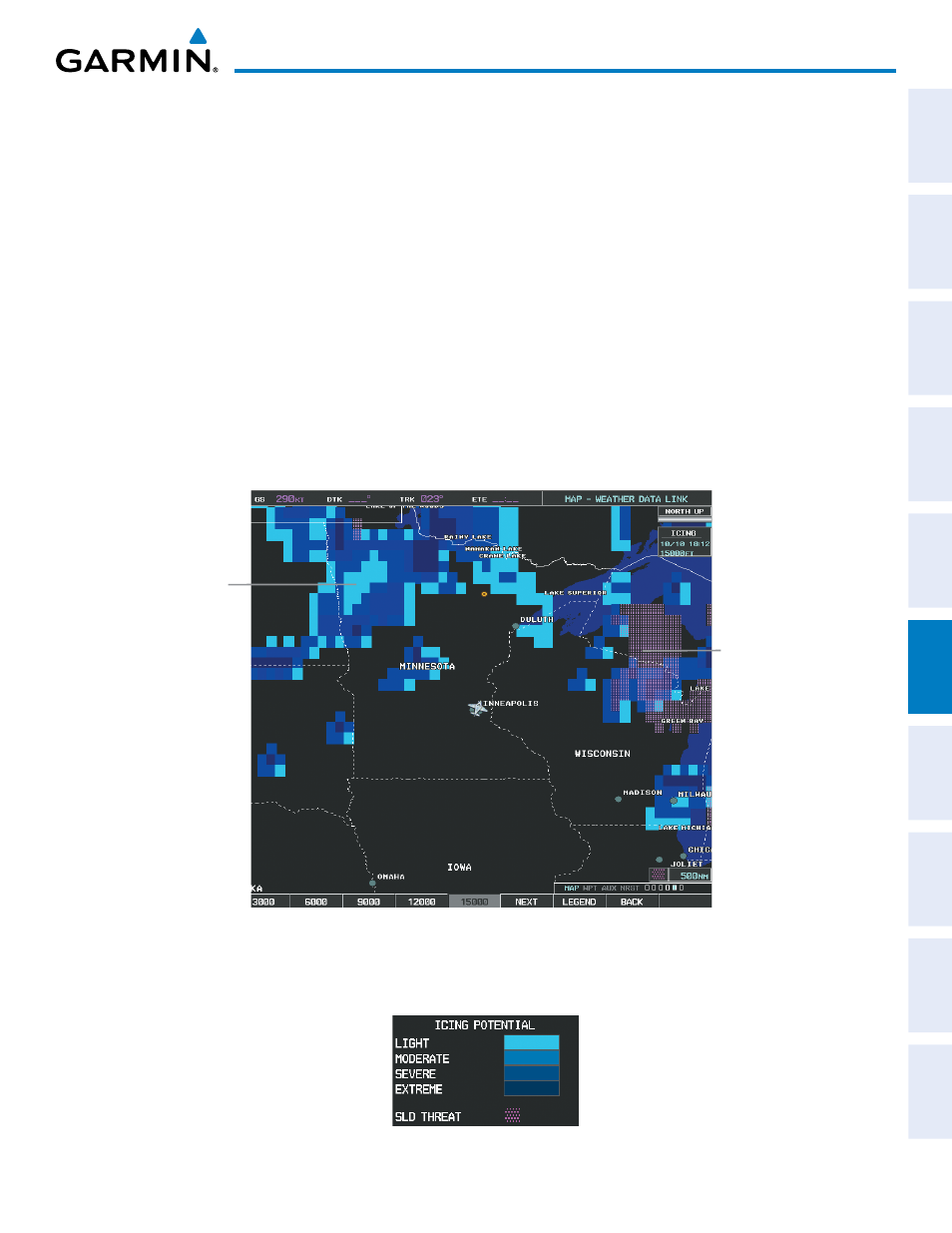

Figure 6-37 Icing Data at 15,000 Feet
Icing
Supercooled
large droplets
To display the Icing Potential legend (Figure 6-38), press the LEGEND Softkey when Icing is selected for
display.
Figure 6-38 Icing Potential Legend
