AUDIO PANEL CONTROLS

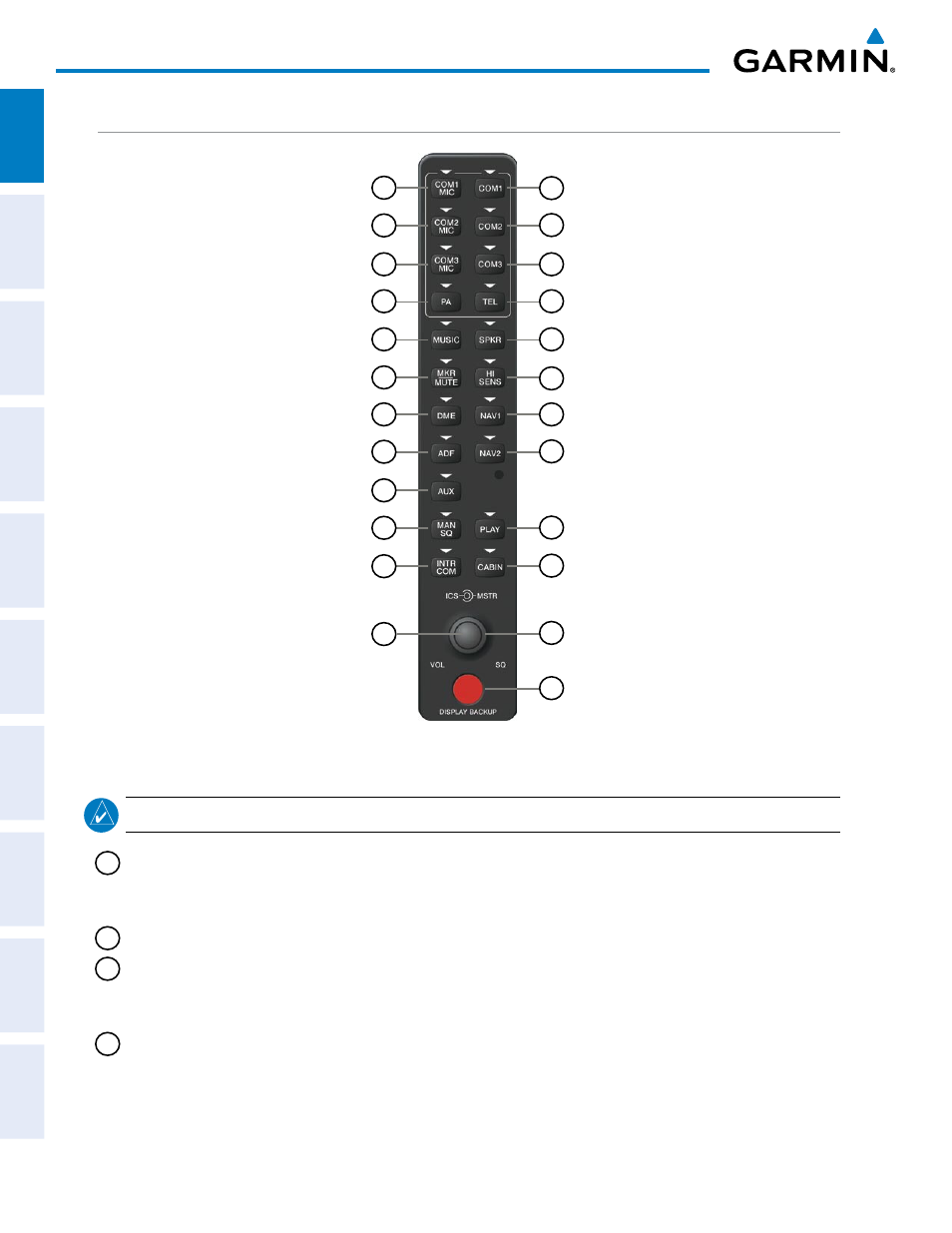

Figure 1-5 Audio Panel Controls (GMA 1347D-20)
17
18
15
13
11
9
20
7
5
3
1
22
14
2
16
4
6
8
10
12
24
23
21
19
NOTE:
When a key is selected, a triangular annunciator above the key is illuminated.
1
COM1 MIC – Selects the #1 transmitter for transmitting. COM1 receive is simultaneously selected when
this key is pressed allowing received audio from the #1 COM receiver to be heard. COM2 receiver audio
can be added by pressing the COM2 Key.
2
COM1 – When selected, audio from the #1 COM receiver can be heard.
3
COM2 MIC – Selects the #2 transmitter for transmitting. COM2 is simultaneously selected when this key
is pressed allowing received audio from the #2 COM receiver to be heard. COM2 can be deselected by
pressing the COM2 Key, or COM1 can be added by pressing the COM1 Key.
4
COM2 – When selected, audio from the #2 COM receiver can be heard.
