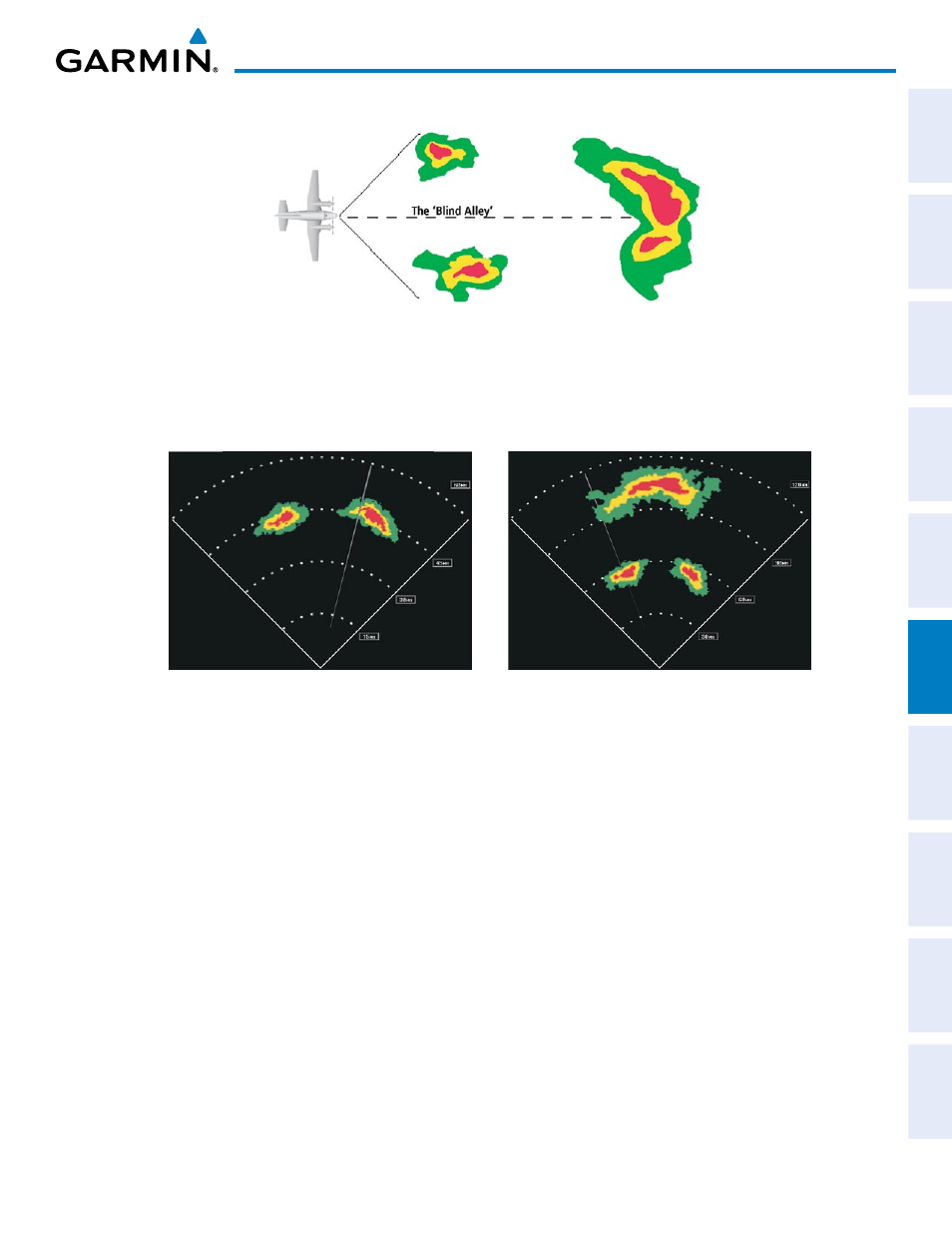

Figure 6-51 The Blind Alley - Horizontal Scan
In areas of multiple heavy cells, use the Vertical Scan feature along with antenna tilt management to
examine the areas. Remember to avoid shadowed areas behind targets.
Figure 6-52 The Blind Alley
The Blind Alley at Close Range The Large Storm Behind
t
ornaDoes
There are no conclusive radar target return characteristics which identify a tornado. However, tornadoes
may be present if the following characteristics are observed:
• A narrow, finger-like portion extends and in a short time curls into a hook and closes on itself.
• A hook, which may be in the general shape of the numeral 6 (numeral 9 in the southern hemisphere),
especially if bright and projecting from the southwest quadrant (northeast quadrant in the southern
hemisphere) of a major thunderstorm.
• V-shaped notches.
• Doughnut shapes.
These shapes do not always indicate tornadoes, and tornado returns are not limited to these characteristics.
Confirmed radar observations of tornadoes most often have not shown shapes different from those of a
normal thunderstorm display.
