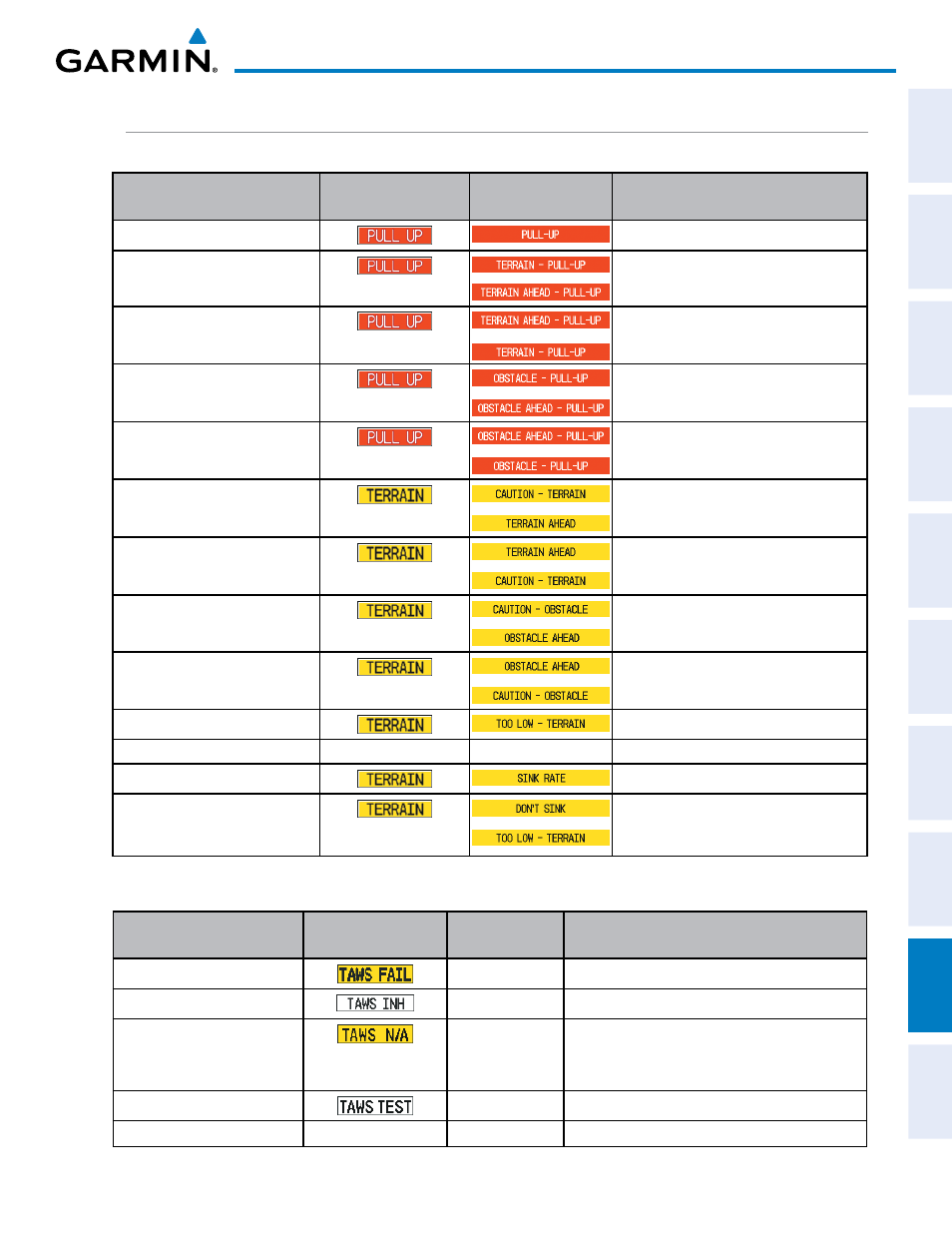

APPENDIX A
TAWS ALERTS
Annunciations appear on both PFDs and the MFD. Pop-up alerts appear only on the MFD.
Alert Type
PFD/MFD TAWS Page
Annunciation
MFD Map Page
Pop-Up Alert
Aural Message
Excessive Descent Rate Warning (EDR) “Pull Up”
Reduced Required Terrain Clearance
Warning (RTC) or
“Terrain, Terrain; Pull Up, Pull Up”
or
“Terrain Ahead, Pull Up; Terrain Ahead, Pull Up”
Imminent Terrain Impact Warning (ITI)
or
Terrain Ahead, Pull Up; Terrain Ahead, Pull Up”
or
“Terrain, Terrain; Pull Up, Pull Up”
Reduced Required Obstacle Clearance
Warning (ROC)
or
“Obstacle, Obstacle; Pull Up, Pull Up”
or
“Obstacle Ahead, Pull Up; Obstacle Ahead, Pull Up”
Imminent Obstacle Impact Warning (IOI)
or
“Obstacle Ahead, Pull Up; Obstacle Ahead, Pull Up”
or
“Obstacle, Obstacle; Pull Up, Pull Up”
Reduced Required Terrain Clearance
Caution (RTC)
or
“Caution, Terrain; Caution, Terrain”
or
“Terrain Ahead; Terrain Ahead”
Imminent Terrain Impact Caution (ITI)
or
“Terrain Ahead; Terrain Ahead”
or
“Caution, Terrain; Caution, Terrain”
Reduced Required Obstacle Clearance
Caution (ROC)
or
“Caution, Obstacle; Caution, Obstacle”
or
“Obstacle Ahead; Obstacle Ahead”
Imminent Obstacle Impact Caution (IOI)
or
“Obstacle Ahead; Obstacle Ahead”
or
“Caution, Obstacle; Caution, Obstacle”
Premature Descent Alert Caution (PDA) “Too Low, Terrain”
Altitude Callout “500” None None “Five-Hundred”
Excessive Descent Rate Caution (EDR) “Sink Rate”
Negative Climb Rate Caution (NCR)
or
“Don’t Sink”
or
“Too Low, Terrain”
TAWS SYSTEM STATUS ANNUNCIATIONS
Alert Type
PFD/MFD TAWS Page
Annunciation
MFD Map Page
Pop-Up Alert
Aural Message
TAWS System Test Fail None “TAWS System Failure”
TAWS Alerting is disabled None None
No GPS position or excessively
degraded GPS signal
None “TAWS Not Available”
“TAWS Available” when sufficient GPS signal is
re-established.
System Test in progress None None
System Test pass None None Chime
