Garmin G1000 Pilot’s Guide for the Hawker Beechcraft C90A/GT 190-00663-01 Rev. A 306
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
XM LIGHTNING
NOTE: XM Lightning and optional L-3 STORMSCOPE® WX-500 Lightning are mutually exclusive.

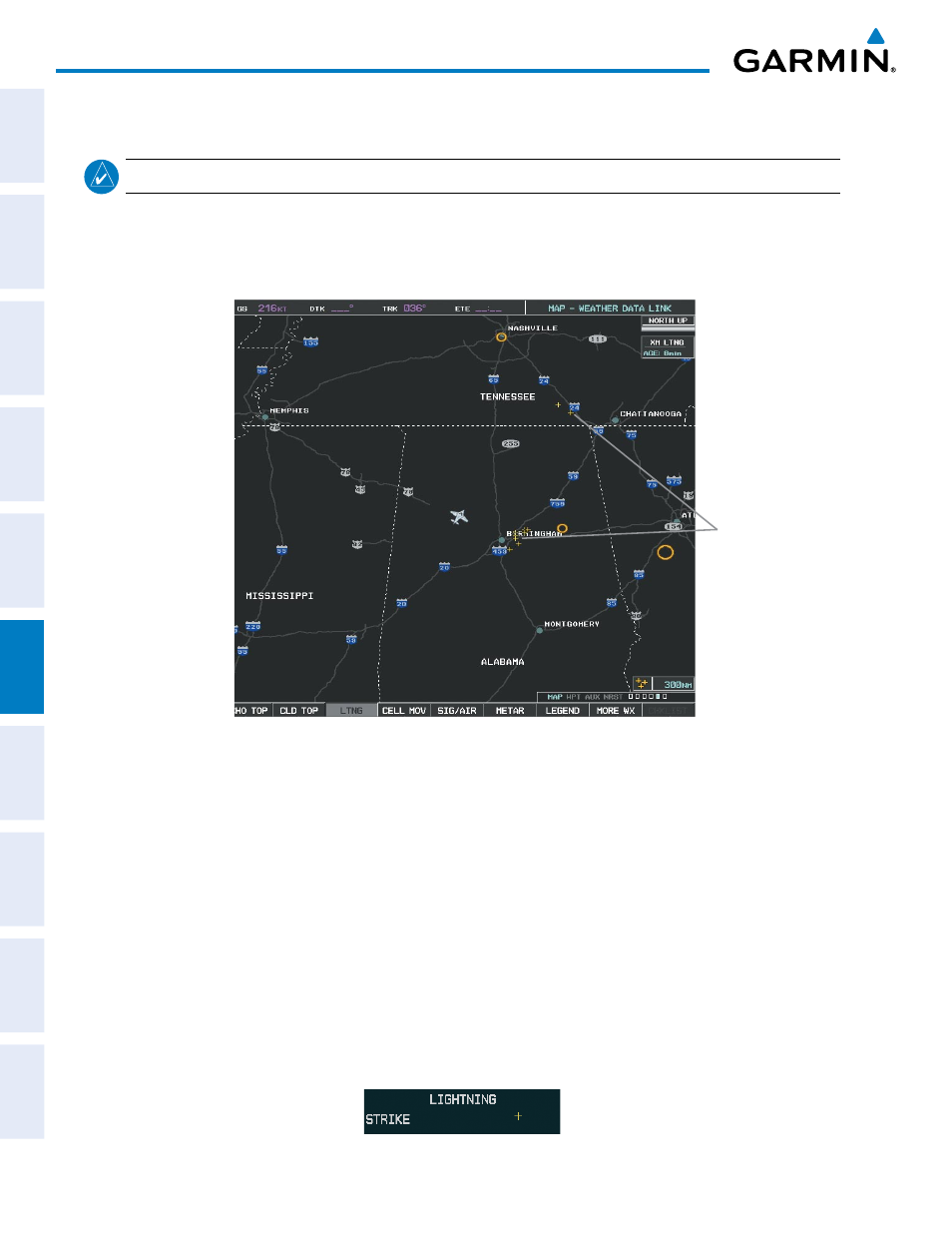

Lightning data (Figure 6-18) shows the approximate location of cloud-to-ground lightning strikes. A strike
icon represents a strike that has occurred within a two-kilometer region. The exact location of the lightning
strike is not displayed.
Lightning
Strikes
Figure 6-18 Lightning Data
XM Lightning data displays on the following maps:
• PFD Inset Map
• Navigation Map Page
• Weather Data Link Page
• Trip Planning Page
• Nearest Pages
• Flight Plan Pages
Displaying XM Lightning information:
1) Select the MAP Softkey (for the PFD Inset Map, press the INSET Softkey). This step is not necessary on the
Weather Data Link Page.
2) Select the XM LTNG Softkey (LTNG Softkey on the Weather Data Link Page).
To display the XM Lightning legend on the Weather Data Link Page (Figure 6-19), select the LEGEND
Softkey when XM Lightning is selected for display.
Figure 6-19 Lightning Legend
