1 NAV Frequency Box
2 Airspeed Indicator
3 Ground Speed
4 True Airspeed
5 Current Heading
6 Selected Heading Bug
7 Outside Air Temperature (OAT)
8 Softkeys
9 System Time
10 Transponder Data Box
11 Horizontal Situation Indicator ( HSI)
12 Turn Rate Indicator
13 Altimeter Barometric Setting
14 Vertical Speed Indicator (VSI)
15 Selected Altitude Bug
16 Altimeter
17 Selected Altitude
18 COM Frequency Box
19 AFCS Status Box
20 Navigation Status Box
21 Slip/Skid Indicator
22 Attitude Indicator

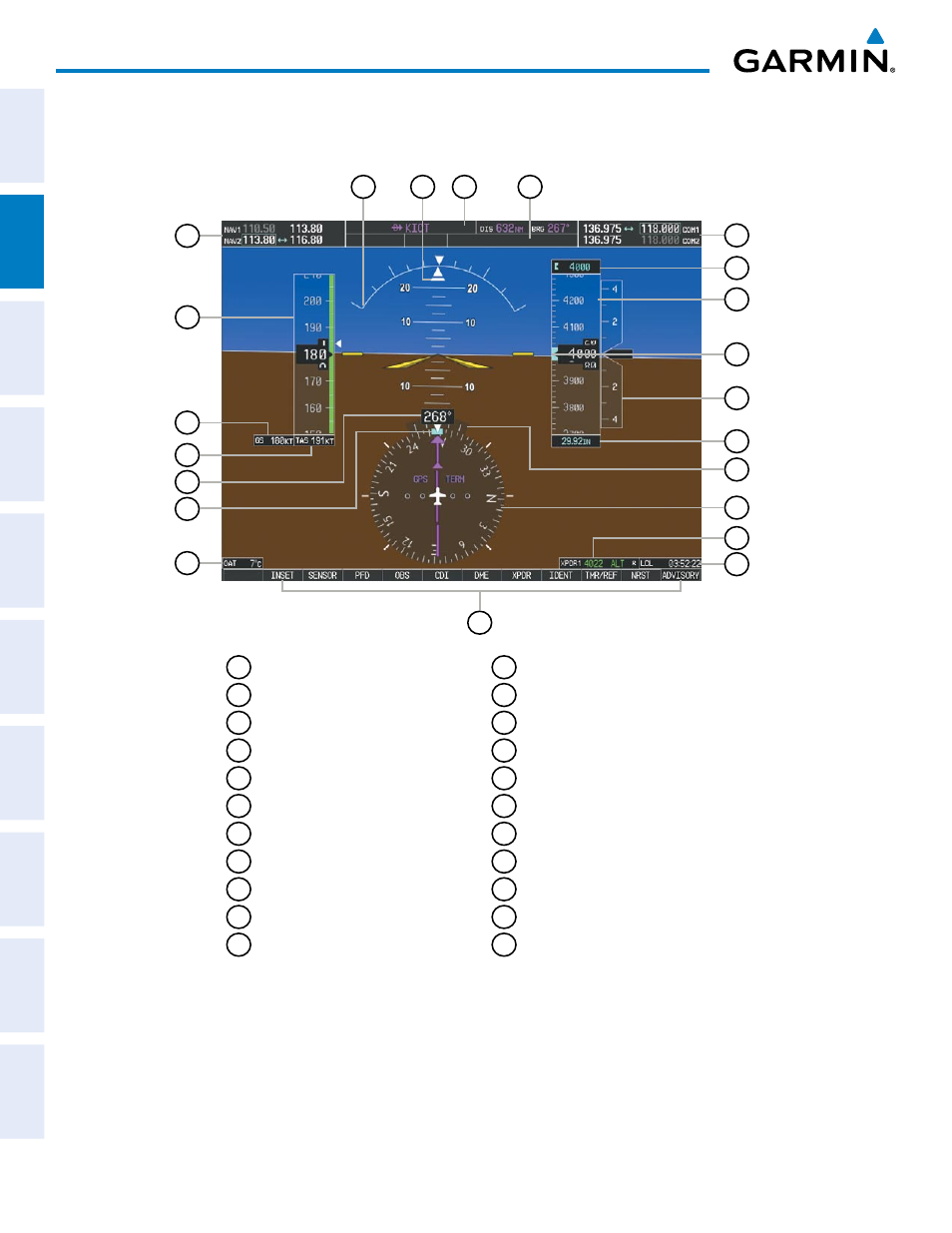

Figure 2-1 Primary Flight Display (Default)
