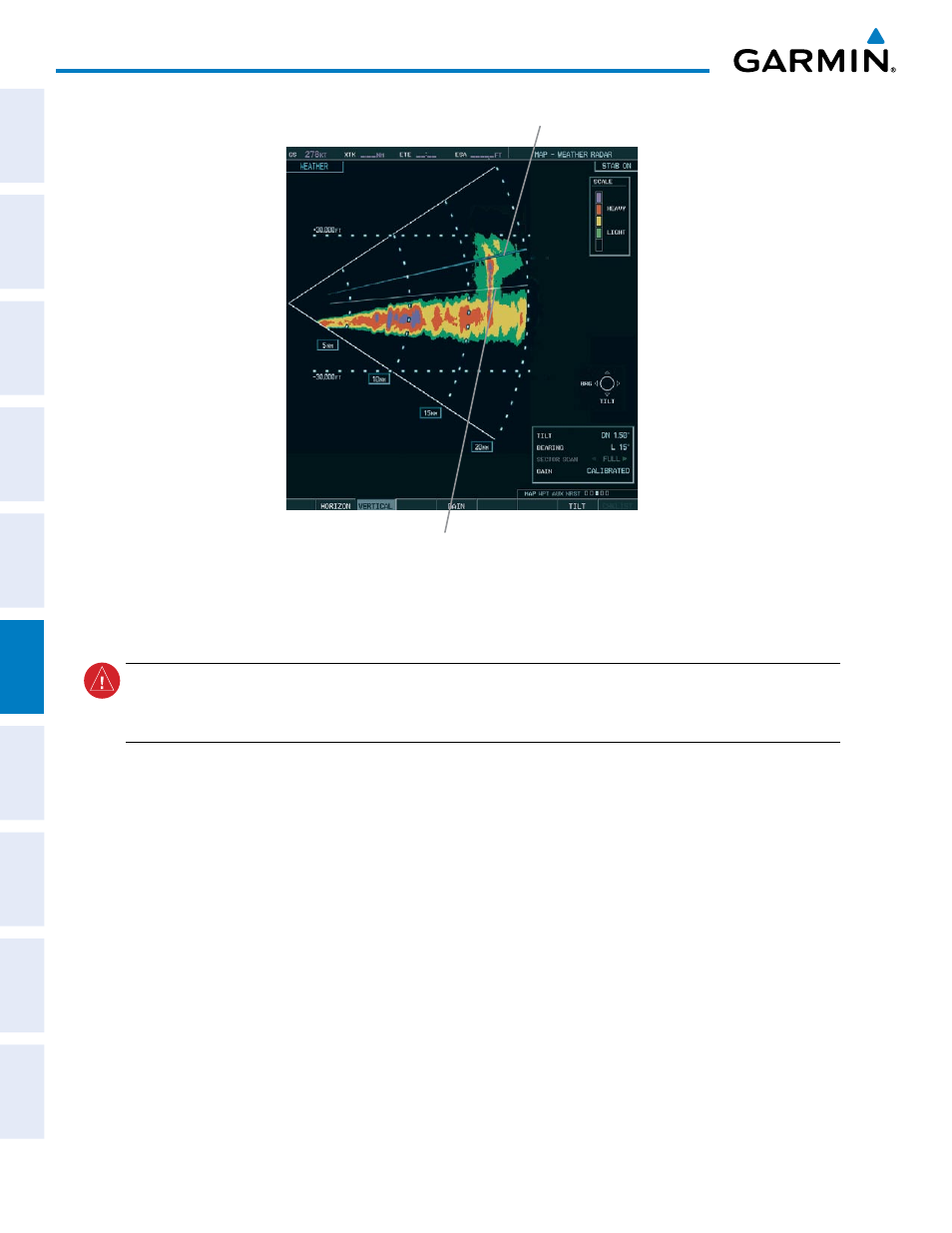

Figure 6-57 Adjusting Tilt on Vertical Scan Display
Scan Line
Tilt Line
a
DjUsting
g
ain
WARNING: Changing the gain in weather mode causes precipitation intensity to be displayed as a color
not representative of the true intensity. Remember to return the gain setting to Calibrated for viewing the
actual intensity of precipitation.
1) Select the GAIN Softkey to activate the cursor in the GAIN field.
2) Turn the small FMS Knob to adjust the gain for the desirable level. The gain setting is visible in the GAIN field
as a movable horizontal bar in a flashing box. The line pointer is a reference depicting the calibrated position.
3) Press the FMS Knob to remove the cursor.
4) Select the GAIN Softkey again to recalibrate the gain. CALIBRATED is displayed in the GAIN field.
