ES-4024A User’s Guide
82 Chapter 8 VLAN

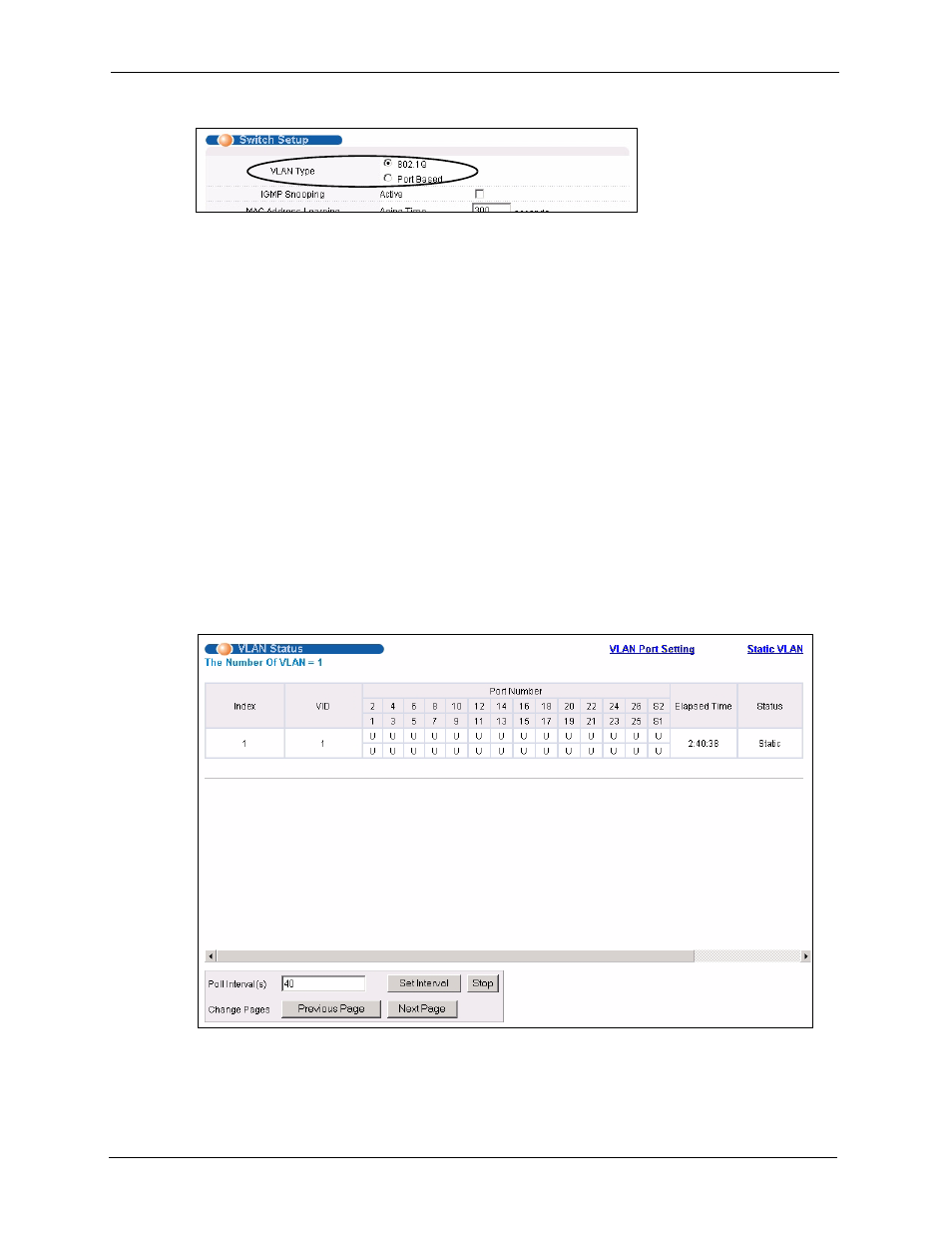

Figure 35 Switch Setup: Select VLAN Type
8.5 Static VLAN
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depends on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing frames (that were previously untagged) from a port with the
specified VID.
8.5.1 Static VLAN Status
Click Advanced Application, VLAN from the navigation panel to display the VLAN Status
screen as shown next.
Figure 36 VLAN: VLAN Status
The following table describes the labels in this screen.
