ES-4024A User’s Guide
Chapter 7 Basic Setting 77
7.8 Port Setup
Click Basic Setting and then Port Setup in the navigation panel to enter the port
configuration screen.

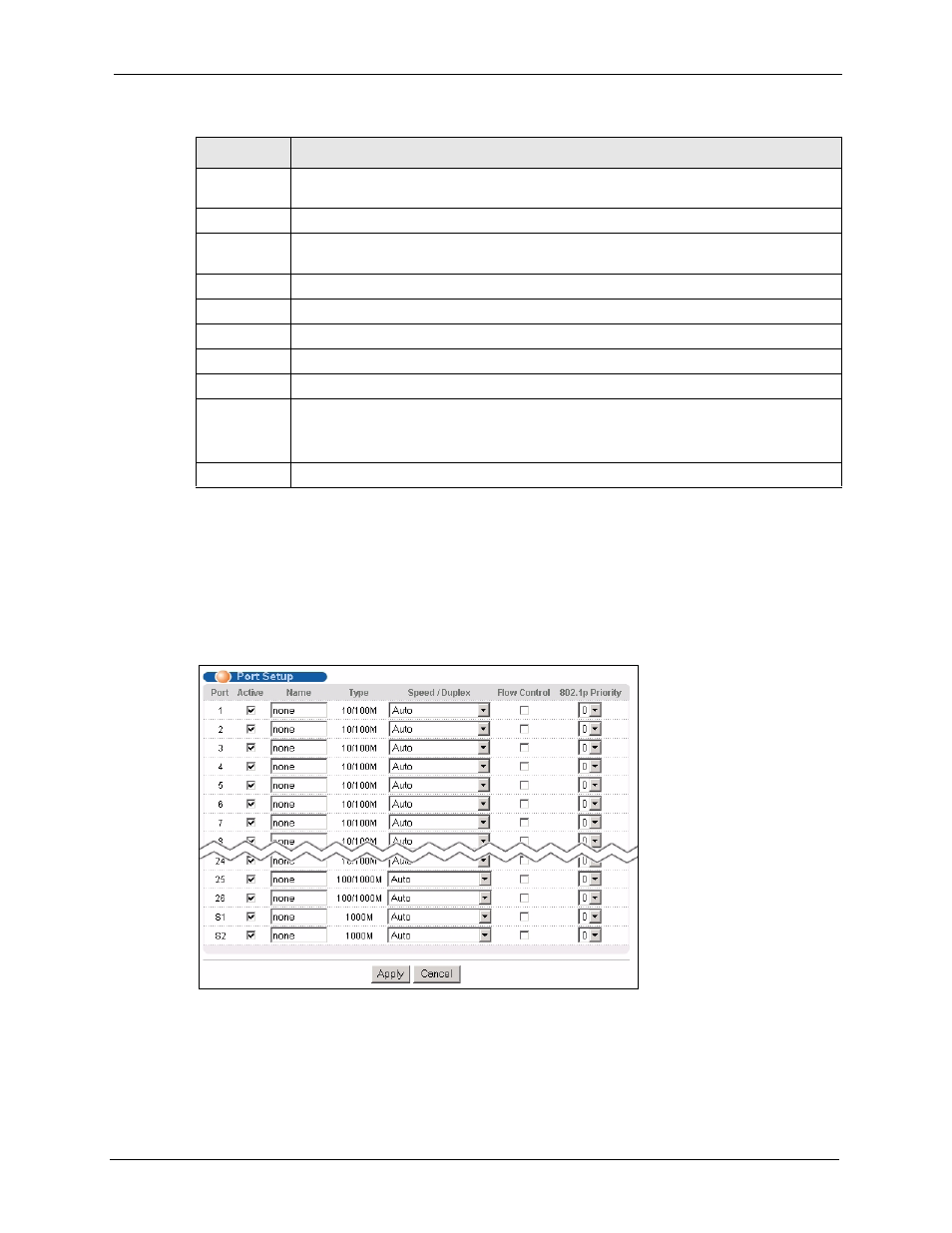

Figure 33 Port Setup
The following table describes the labels in this screen.
IP Subnet
Mask
Enter the IP subnet mask of an IP routing domain in dotted decimal notation. For
example, 255.255.255.0.
VID Enter the VLAN identification number to which an IP routing domain belongs.
Add Click Add to save the new rule to the switch. It then displays in the summary table at the
bottom of the screen.
Cancel Click Cancel to reset the fields to your previous configuration.
Index This field displays the index number of an entry.
IP Address This field displays IP address of the switch in the IP domain.
Subnet Mask This field displays the subnet mask of the switch in the IP domain.
VID This field displays the VLAN identification number of the IP domain on the switch.
Delete Click Delete to remove the selected entry from the summary table.
Note: Deleting all IP domains locks you out from the switch.
Cancel Click Cancel to clear the Delete check boxes.
Table 11 IP Setup (continued)
LABEL DESCRIPTION
