ES-4024A User’s Guide
Chapter 21 Differentiated Services 141
21.3 Configuring Marking Rules
Create DiffServ marking rules to set the DSCP values in the packets for the traffic flows.
In the DiffServ screen, click the Making Rule Setting link to display the screen as shown
next.

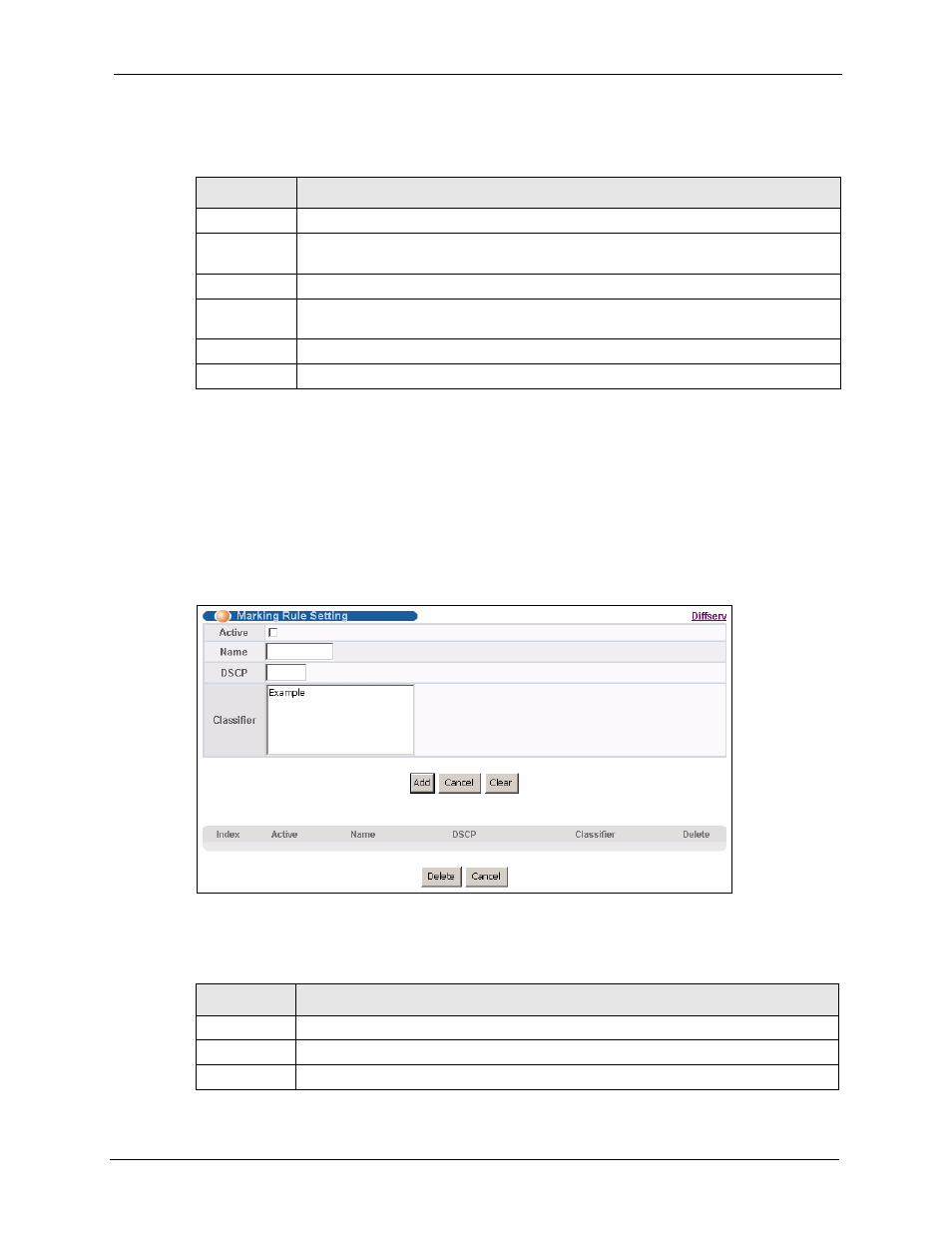

Figure 73 DiffServ: Marking Rule Setting
The following table describes the labels in this screen.
Table 47 DiffServ
LABEL DESCRIPTION
Active Select this option to enable DiffServ on the switch.
Default DSCP Enter the default DSCP value (between 0 to 63) to use if no marking rule is configured
for a traffic type.
Port This field displays the index number of a port on the ES-4024A.
Active Select this option to apply the default DSCP value you set in the Default DSCP field on
a port.
Apply Click Apply to save the changes.
Cancel Click Cancel to start configuring this screen again.
Table 48 DiffServ: Marking Rule Setting
LABEL DESCRIPTION
Active Select this option to enable this rule.
Name Enter a description name for identification purposes.
DSCP Enter a DSCP value (between 0 and 63) for this rule.
