ES-4024A User’s Guide
Chapter 28 OSPF 173
28.4.1 Viewing OSPF Area Information Table
The bottom of the OSPF Configuration screen displays a summary table of all the OSPF
areas you have configured.

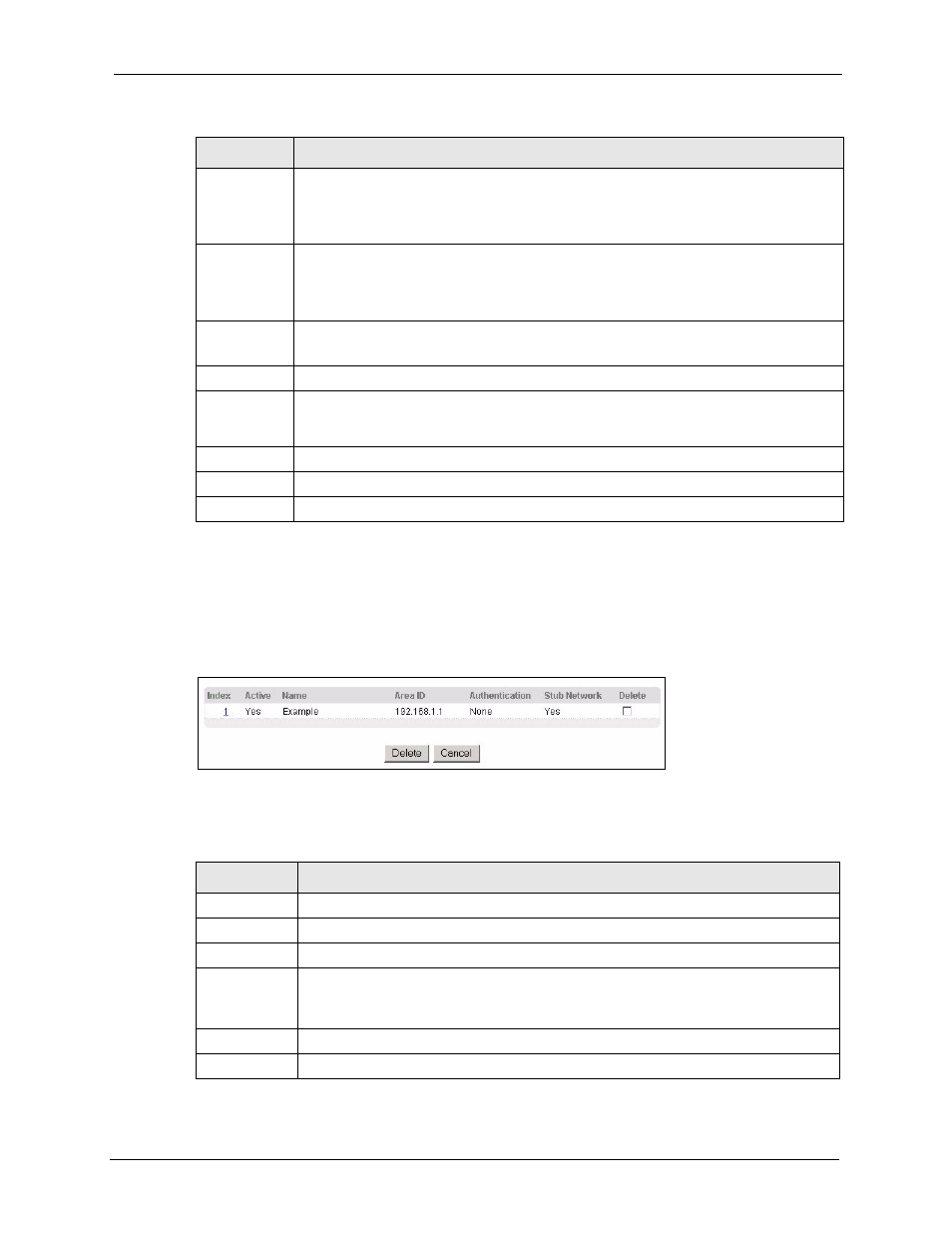

Figure 103 OSPF Configuration: Summary Table
The following table describes the related labels in this screen.
Area ID Enter a 32-bit ID (that uses the format of an IP address in dotted decimal notation) that
uniquely identifies an area.
A value of 0.0.0.0 indicates that this is a backbone (also known as Area 0). You can
create only one backbone area on the ES-4024A.
Authentication Select an authentication method (Simple or MD5) to activate authentication. Select
None to disable authentication.
Interface(s) and virtual interface(s) must use the same authentication method as the
associated area.
Stub Area Select this option to set the area as a stub area.
If you enter 0.0.0.0 in the Area ID field, the settings in the Stub Area fields are ignored.
No Summary Select this option to set the ES-4024A to not send/receive LSAs.
Default Route
Cost
Specify a cost (between 0 and 16777214) used to add a default route into a stub area
for routes which are external to an OSPF domain. If you do not set a route cost, no
default route is added.
Add Click Add to apply the changes.
Cancel Click Cancel to start configuring the above fields again.
Clear Click Clear to set the above fields back to the factory defaults.
Table 66 OSPF Configuration: Area Setup (continued)
LABEL DESCRIPTION
Table 67 OSPF Configuration: Summary Table
LABEL DESCRIPTION
Index This field displays the index number of an area.
Active This field displays whether an area is enabled (Yes) or not (No).
Name This field displays the descriptive name of an area.
Area ID This field displays the area ID (that uses the format of an IP address in dotted decimal
notation) that uniquely identifies an area.
An area ID of 0.0.0.0 indicates the backbone.
Authentication This field displays the authentication method used (None, Simple or MD5).
Stub Network This field displays whether an area is a stub network (Yes) or not (No).
