ES-4024A User’s Guide
Chapter 23 VRRP 155

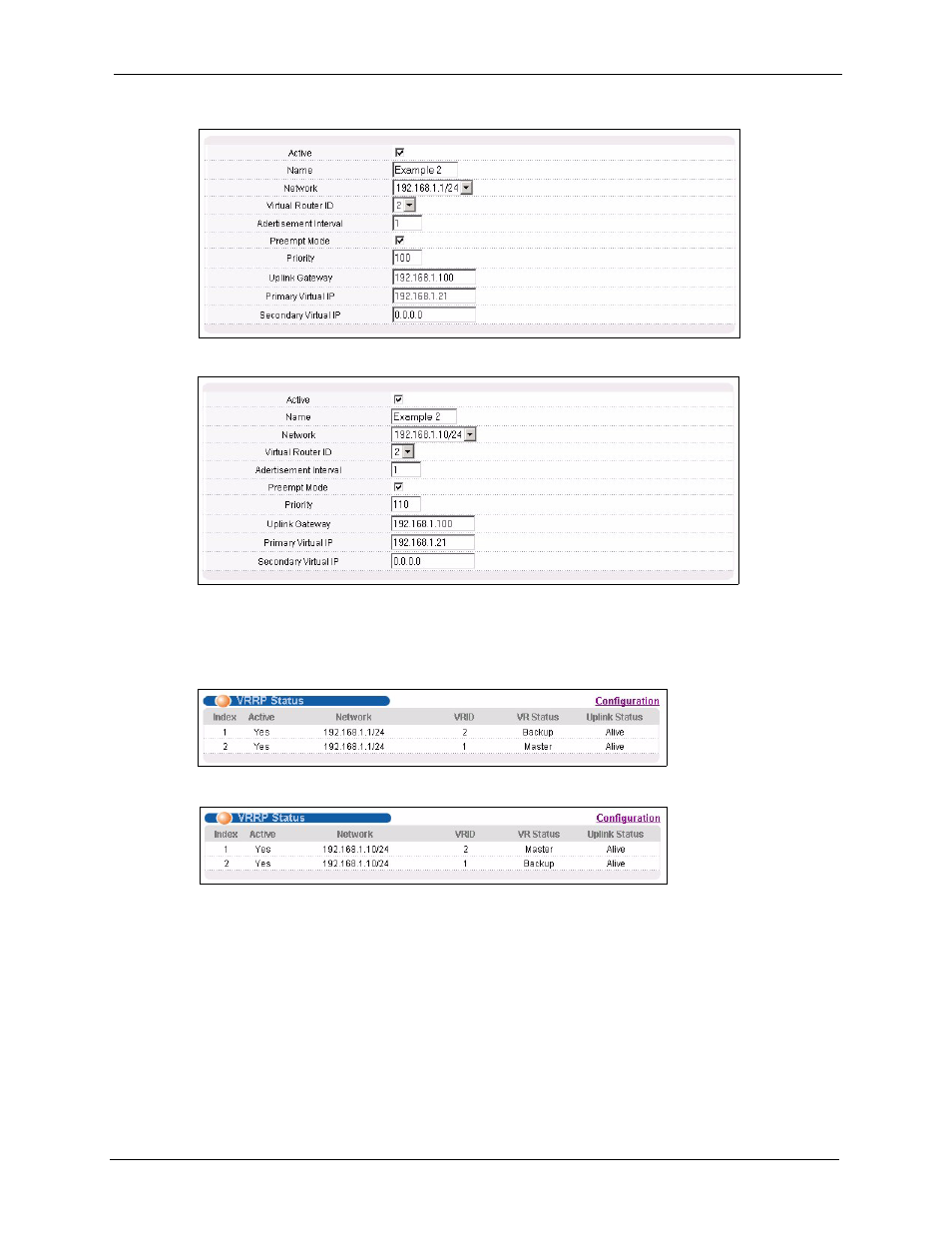

Figure 87 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch A
Figure 88 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for both
switches are shown next.
Figure 89 VRRP Example 2: VRRP Status on Switch A
Figure 90 VRRP Example 2: VRRP Status on Switch B
