ES-4024A User’s Guide
122 Chapter 18 DHCP
18.3.1 DHCP Relay Configuration Example
The follow figure shows a network example where the switch is used to relay DHCP requests
for the RD and Sales network. There is only one DHCP server that services the DHCP clients
in both networks.

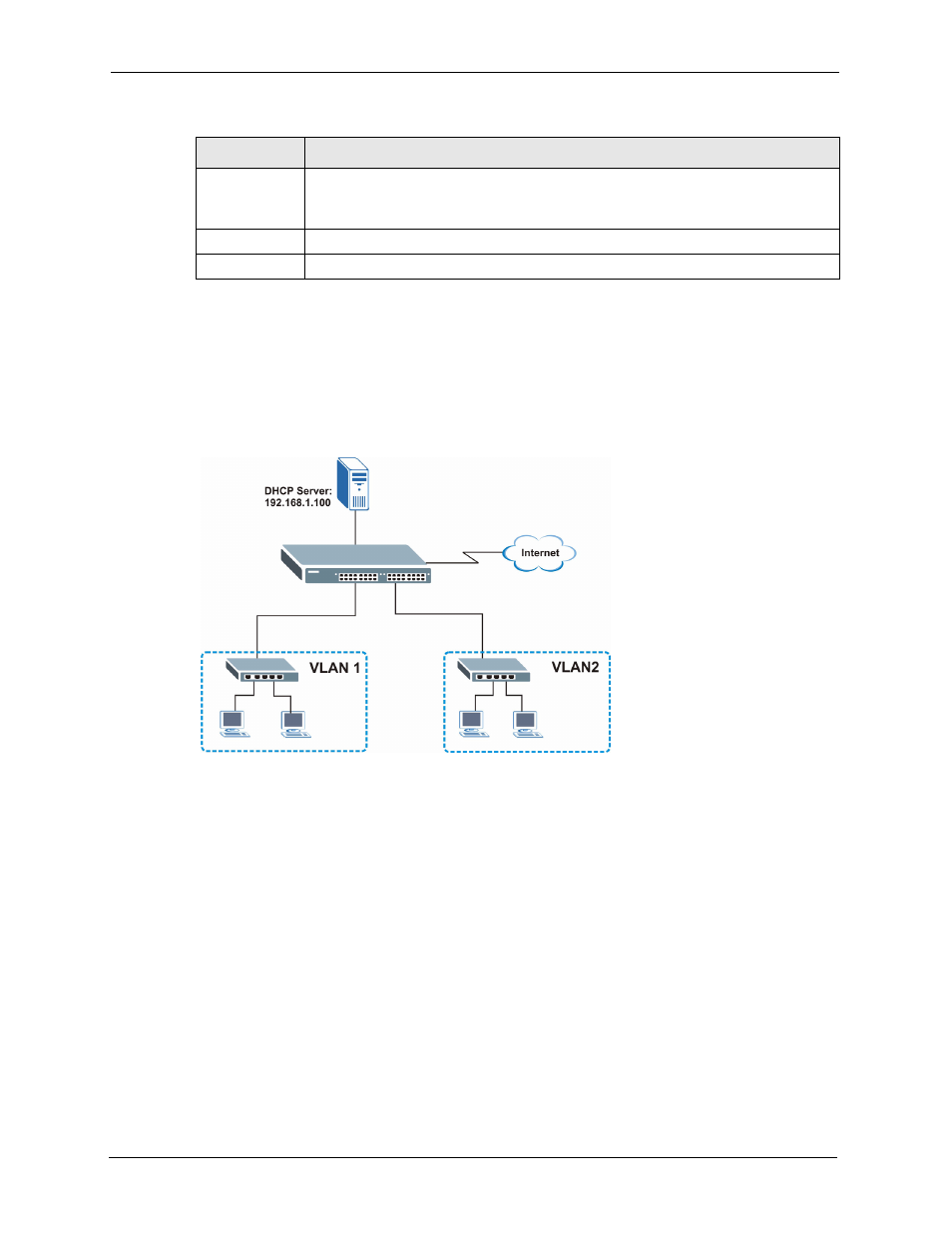

Figure 59 DHCP Relay Network Example
Configure the DHCP relay settings for the two VLANs in the DHCP Relay screen as shown.
DHCP Status This field displays the client IP pool starting address and the size of client IP pool if
the Type field displays Server.
This field displays the IP address of a DHCP server if the Type field is Relay.
Delete Click Delete to remove the selected entry.
Cancel Click Cancel to clear the Delete check boxes.
Table 36 DHCP: Relay (continued)
LABEL DESCRIPTION
