ES-4024A User’s Guide

44

Chapter 3 Hardware Overview

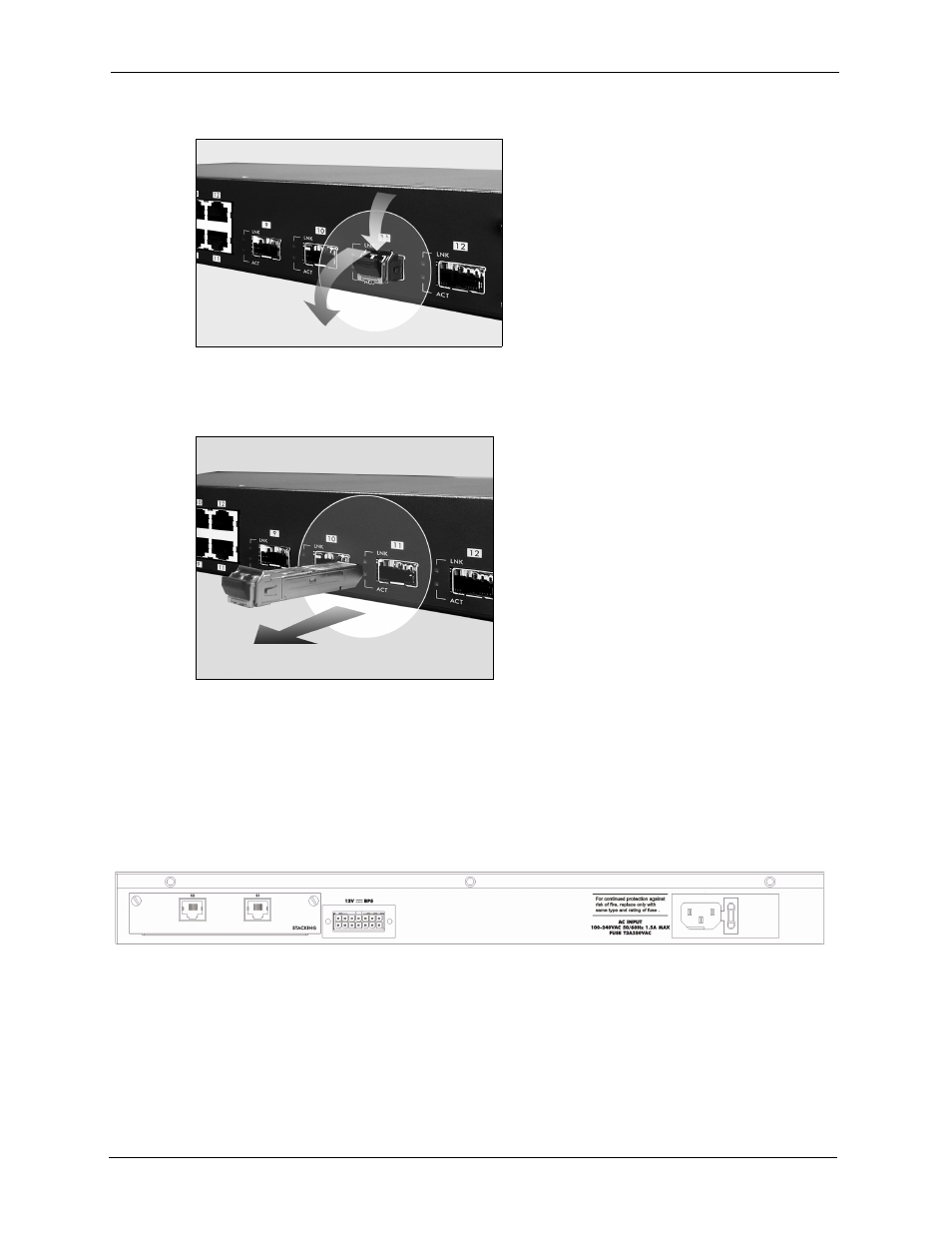

Figure 12 Opening the Transceiver’s Latch Example

2 Pull the transceiver out of the slot.

Figure 13 Transceiver Removal Example

3.2 Rear Panel

The following figure shows the rear panel of the switch. The rear panel contains the stacking
ports, a connector for backup power supply (BPS) and the power receptacle.

Figure 14 Rear Panel

3.2.1 Power Connector

Make sure you are using the correct power source as shown on the panel.
