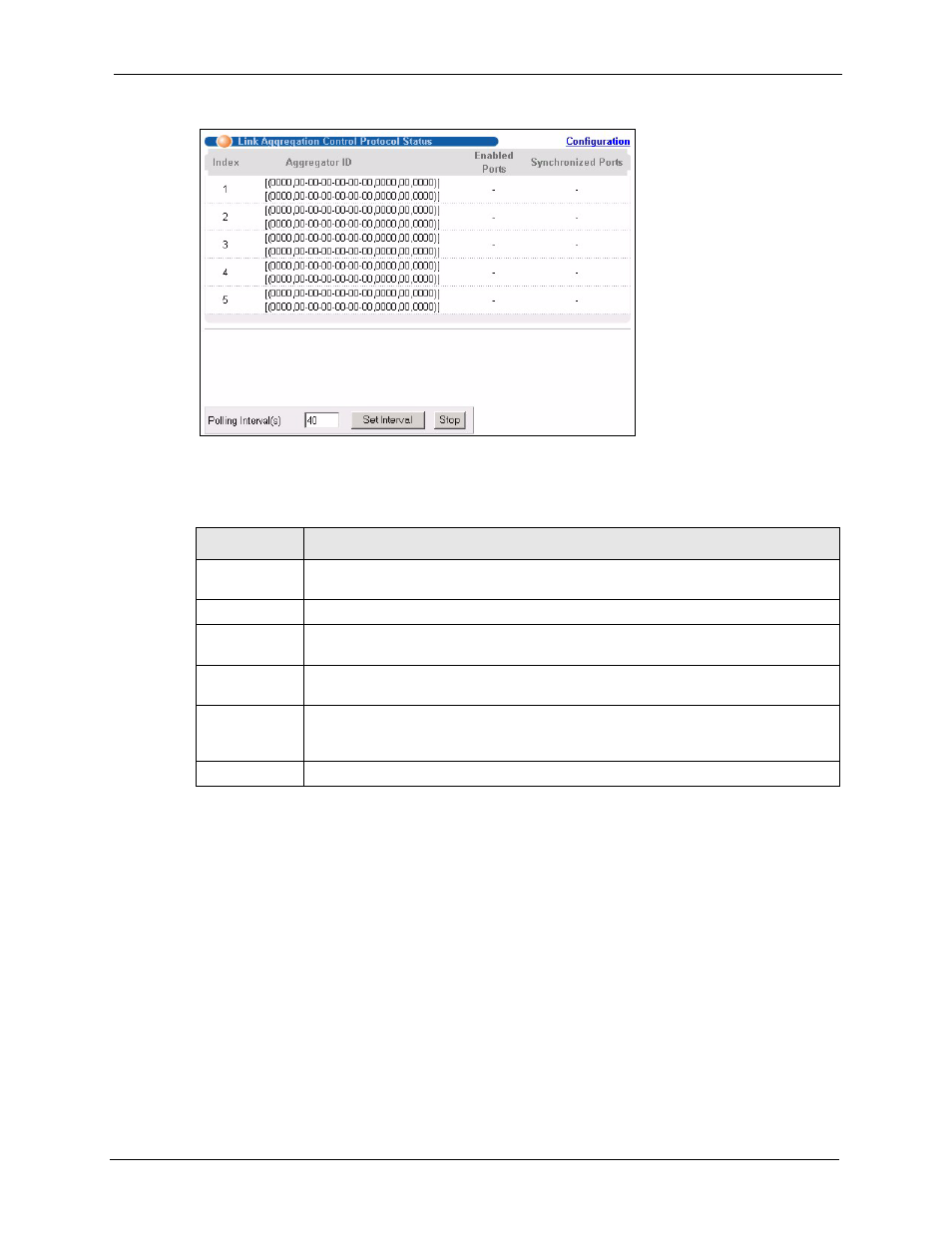

Figure 48 Link Aggregation Control Protocol Status
The following table describes the labels in this screen.
15.3 Link Aggregation Setup
Click Configuration in the Link Aggregation Control Protocol Status screen to display the
screen shown next.
Table 30 Link Aggregation Control Protocol Status
LABEL DESCRIPTION
Index This field displays the trunk ID to identify a trunk group, that is, one logical link
containing multiple ports.
Aggregator ID Refer to Section 15.1.2 on page 108 for more information on this field.
Enabled Port These are the ports you have configured in the Link Aggregation screen to be in the
trunk group.
Synchronized
Ports
These are the ports that are currently transmitting data as one logical link in this trunk
group.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change
the refresh interval by typing a new number in the text box and then clicking Set
Interval.
Stop Click Stop to halt statistic polling.
