ES-4024A User’s Guide

Chapter 23 VRRP

149

23.3 Configuring VRRP

Follow the instructions in the follow sections to configure VRRP on the ES-4024A.

23.3.1 IP Interface Setup

Before configuring VRRP, first create an IP interface (or routing domain) in the IP Setup
screen (see the

Section 7.7 on page 75

for more information).

Click Advanced Application, VRRP and click the Configuration link to display the VRRP
Configuration screen as shown next.

Note: You can only configure VRRP on interfaces with unique VLAN IDs.

Routing domains with the same VLAN ID are not displayed in the table
indicated.

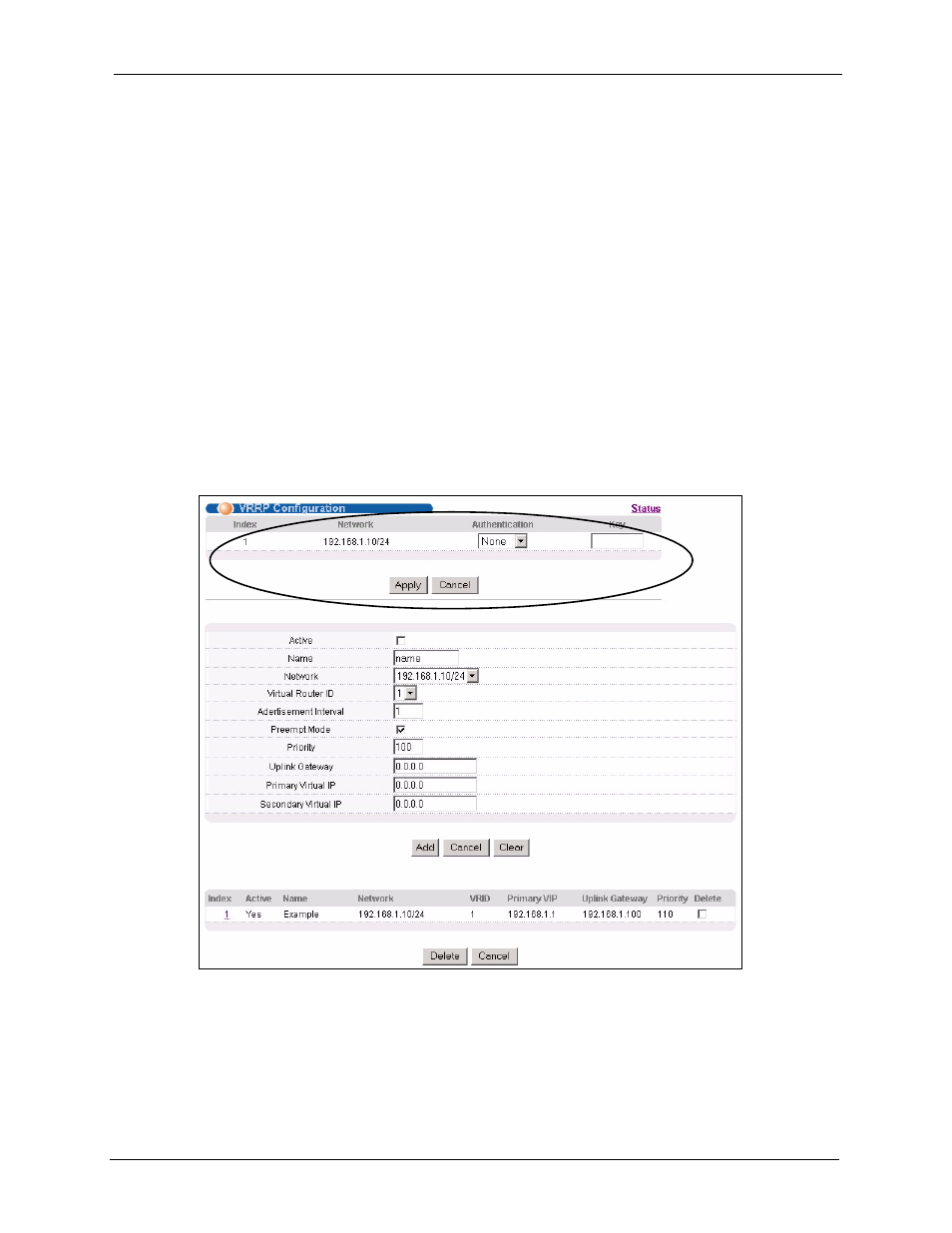

Figure 78 VRRP Configuration: IP Interface

The following table describes the labels in this screen.
