Chapter 20 Classifier

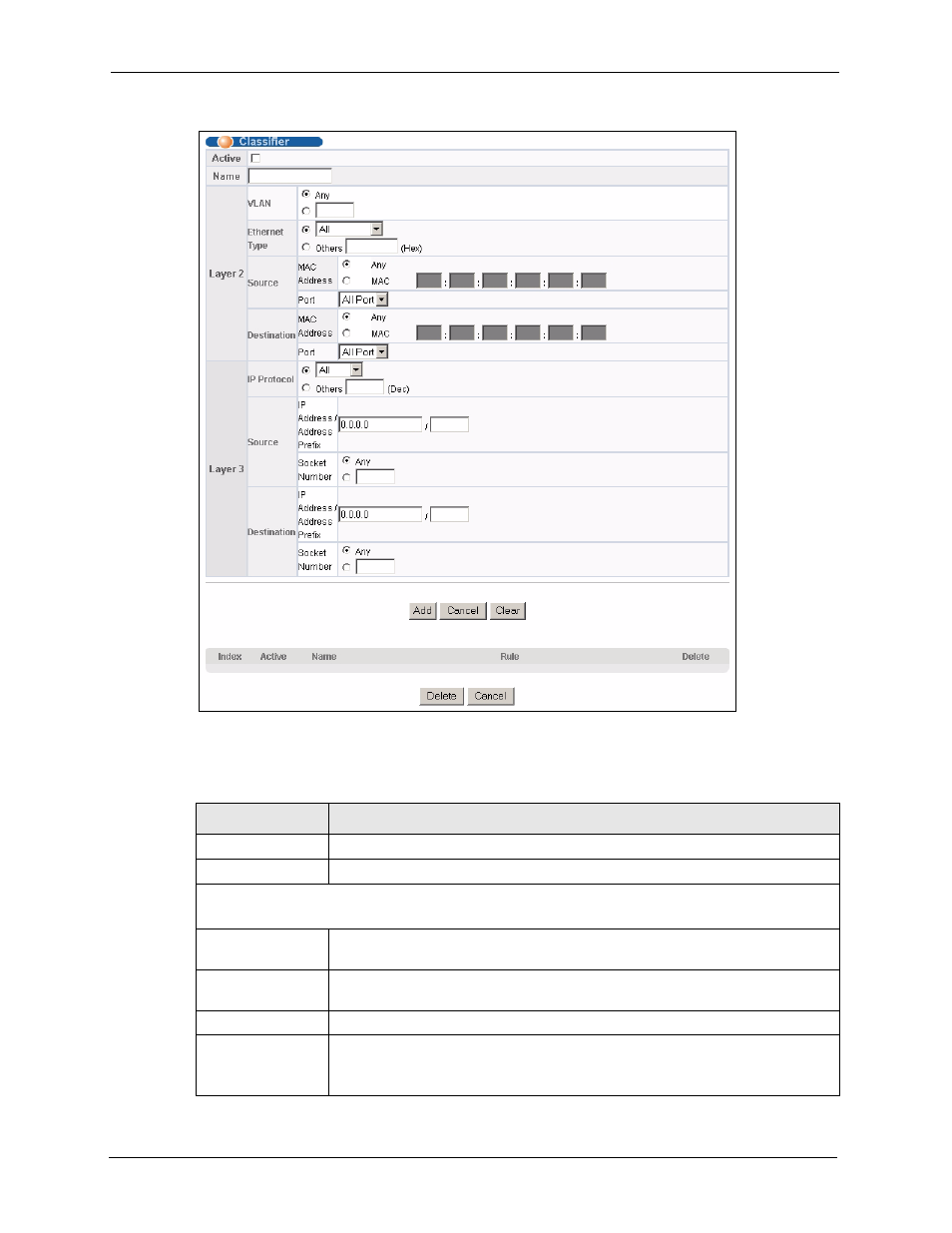

Figure 68 Classifier

The following table describes the labels in this screen.

Table 44 Classifier

LABEL

DESCRIPTION

Active

Select this option to enable this rule.

Name

Enter a descriptive name for this rule for identifying purposes.

Layer 2
Specify the fields below to configure a layer 2 classifier.

VLAN

Select Any to classify traffic to/from any VLAN or select the second option and

specify the source/destination VLAN ID in the field provided.

Ethernet Type

Select an Ethernet type or select Other and enter the Ethernet type number in

hexadecimal value. Refer to

for information.

Source

MAC Address

Select Any to apply the rule to all MAC addresses.
To specify a source, select the second choice and type a MAC address in valid

MAC address format (six hexadecimal character pairs).
