ES-4024A User’s Guide
Chapter 23 VRRP 153

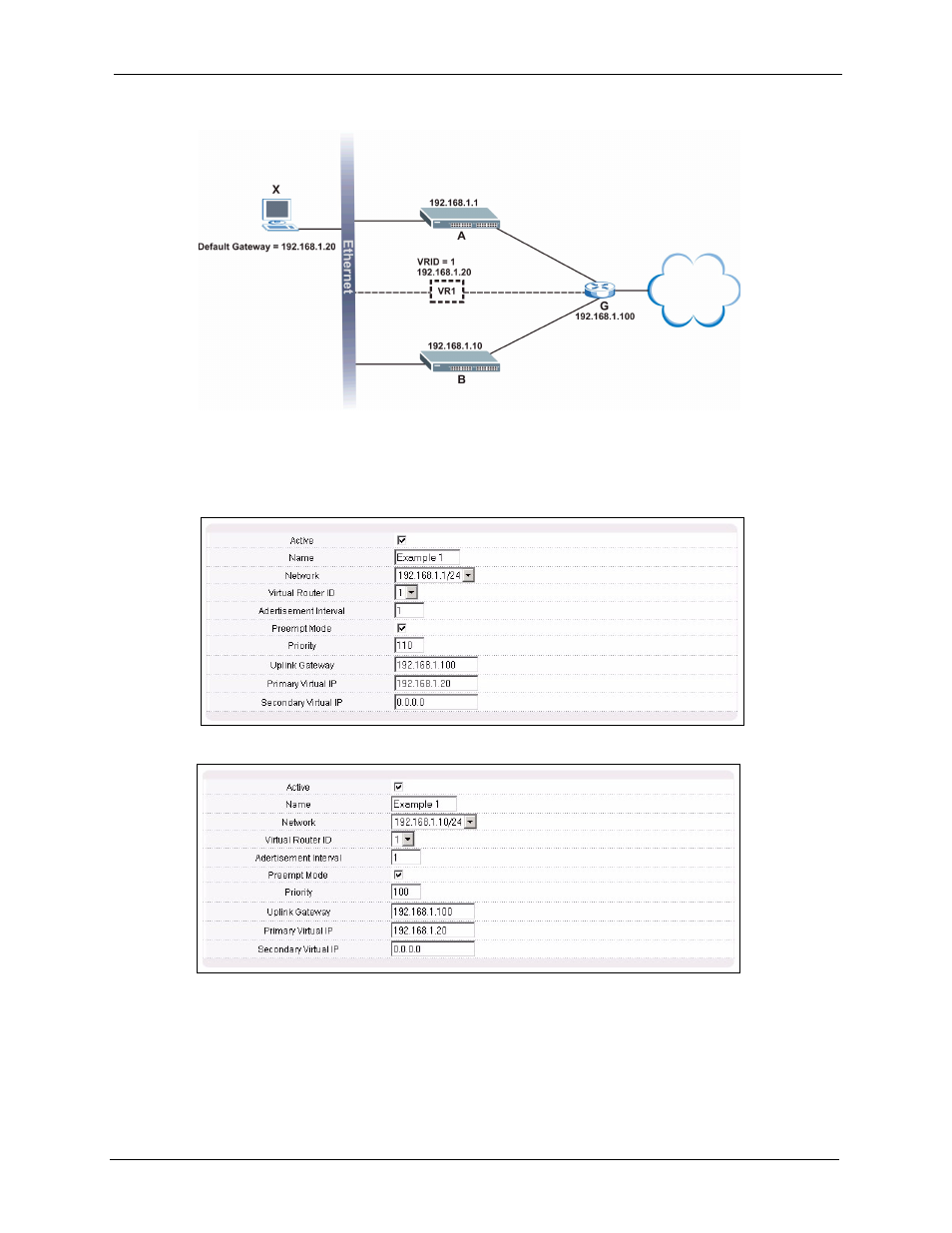

Figure 81 VRRP Configuration Example: One Virtual Router Network
You want to set switch A as the master router. Configure the VRRP parameters in the VRRP
Configuration screens on the ES-4024As as shown in the figures below.
Figure 82 VRRP Example 1: VRRP Parameter Settings on Switch A
Figure 83 VRRP Example 1: VRRP Parameter Settings on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for both
switches are shown next.
