18.2.1 DHCP Server Configuration Example
The follow figure shows a network example where the switch is used to assign network
information to the DHCP clients in the RD and Sales network.

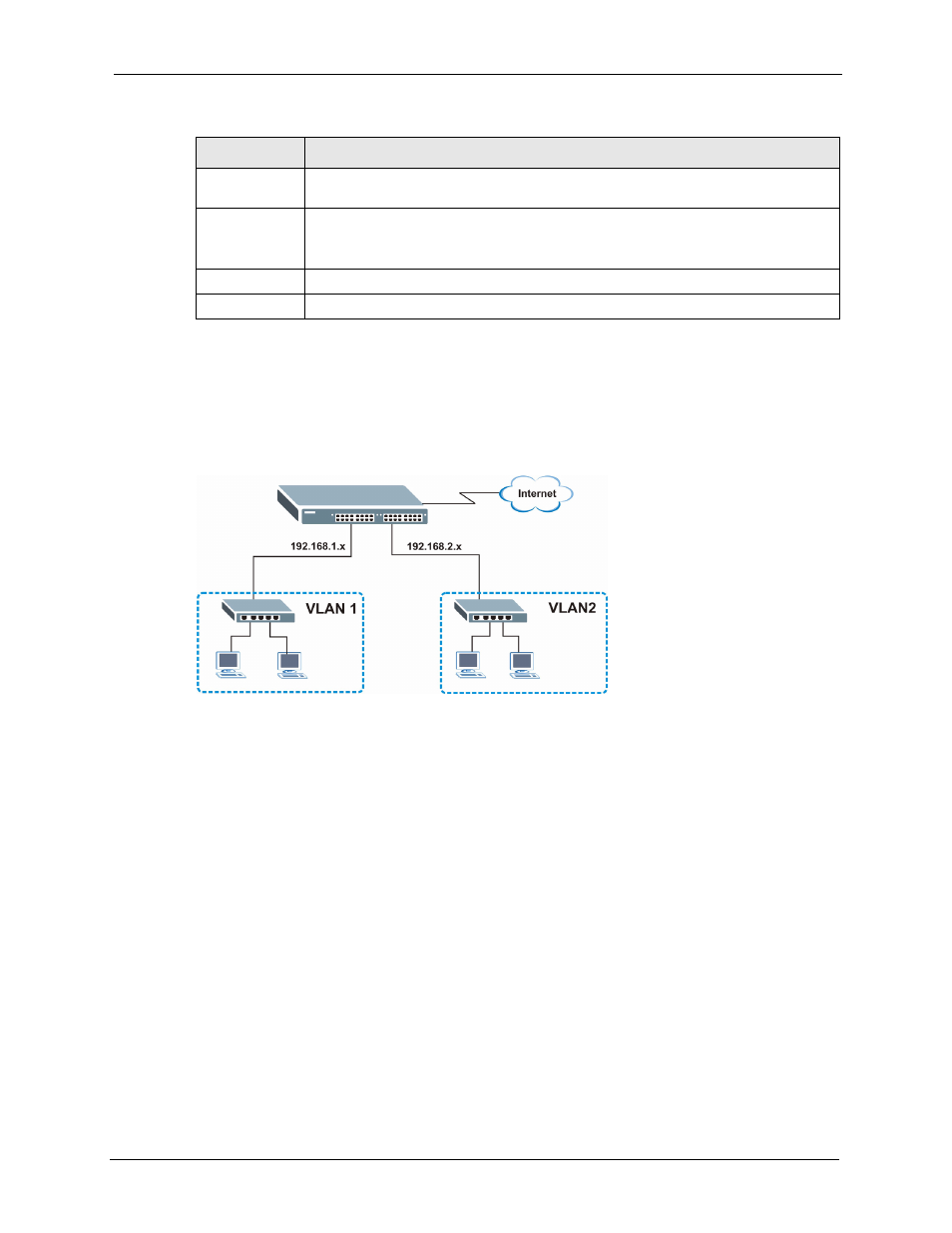

Figure 56 DHCP Server Network Example
In the DHCP Server screen, configure two DHCP client IP address pools for the two
networks. The following shows an example.
Type This field displays the type of the DHCP mode (Server or Relay) for this entry. None
indicates the rule is inactive.
DHCP Status This field displays the client IP pool starting address and the size of client IP pool if
the Type field displays Server.
This field displays the IP address of a DHCP server if the Type field is Relay.
Delete Click Delete to remove the selected entry.
Cancel Click Cancel to clear the Delete check boxes.
Table 35 DHCP: Server (continued)
LABEL DESCRIPTION
