ES-4024A User’s Guide
146 Chapter 22 Queuing Method

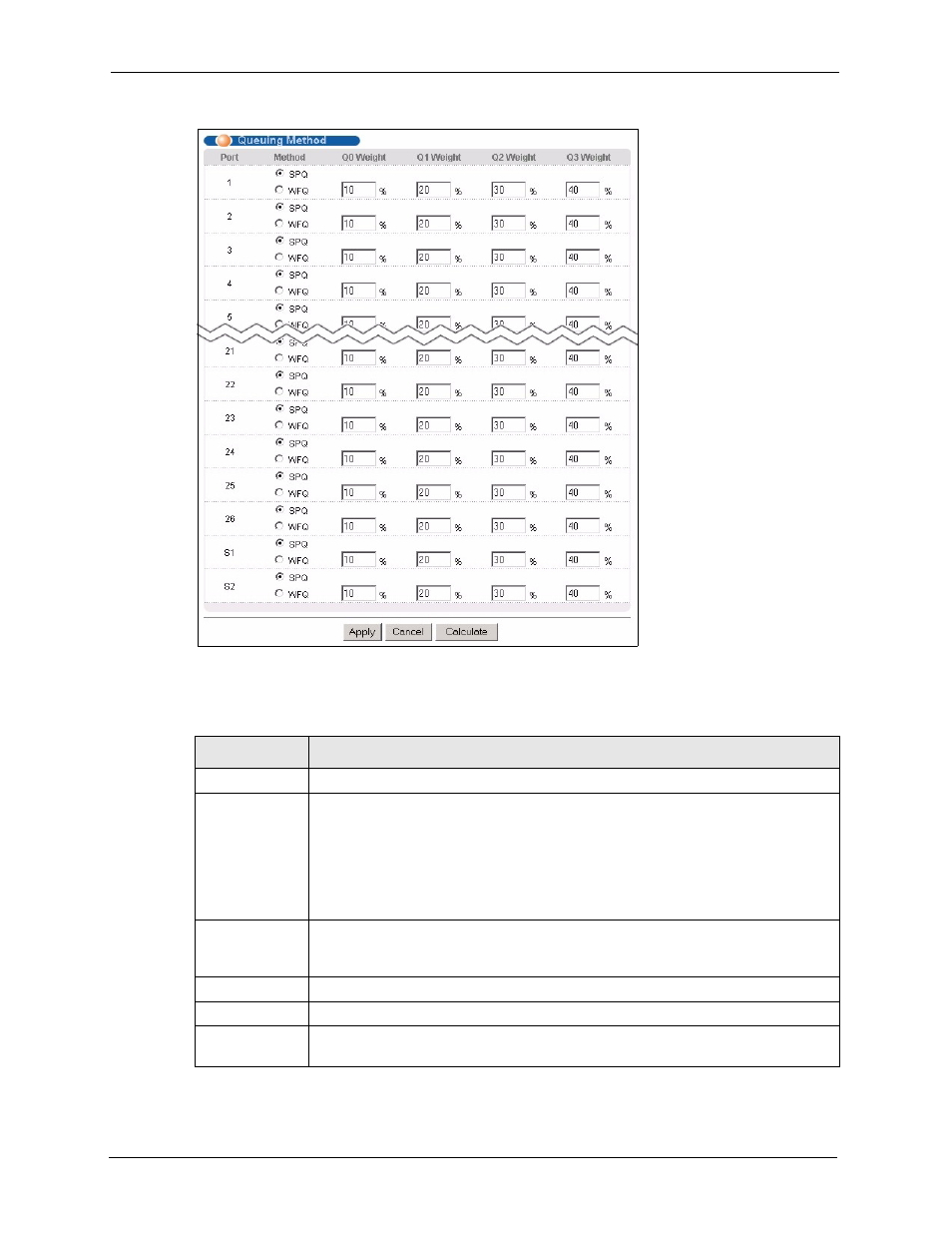

Figure 75 Queuing Method
The following table describes the labels in this screen.
Table 51 Queuing Method
LABEL DESCRIPTION
Port This label shows the port you are configuring.
Method Select SPQ (Strict Priority Queuing) or WFQ (Weighted Fair Queuing).
Strict Priority Queuing (SPQ) services queues based on priority only. When the
highest priority queue empties, traffic on the next highest-priority queue begins. Q3
has the highest priority and Q0 the lowest.
Weighted Fair Queuing (WFQ) services queues based on their priority and queue
weight (the number you configure in the queue % field). Queues with larger weights
get more service than queues with smaller weights.
Q0~Q3 Weight
% When you select WFQ, enter the queue weight here. Bandwidth is divided across the
different traffic queues according to their weights. Queues with larger weights get
more service than queues with smaller weights.
Apply Click Apply to save your changes back to the switch.
Cancel Click Cancel to begin configuring this screen afresh.
Calculate Click Calculate to make sure the WFQ queuing weights total to 100%; if not an error
message is displayed.
