Page 40
ES-4024A User’s Guide
Chapter 2 Hardware Installation and Connection
39

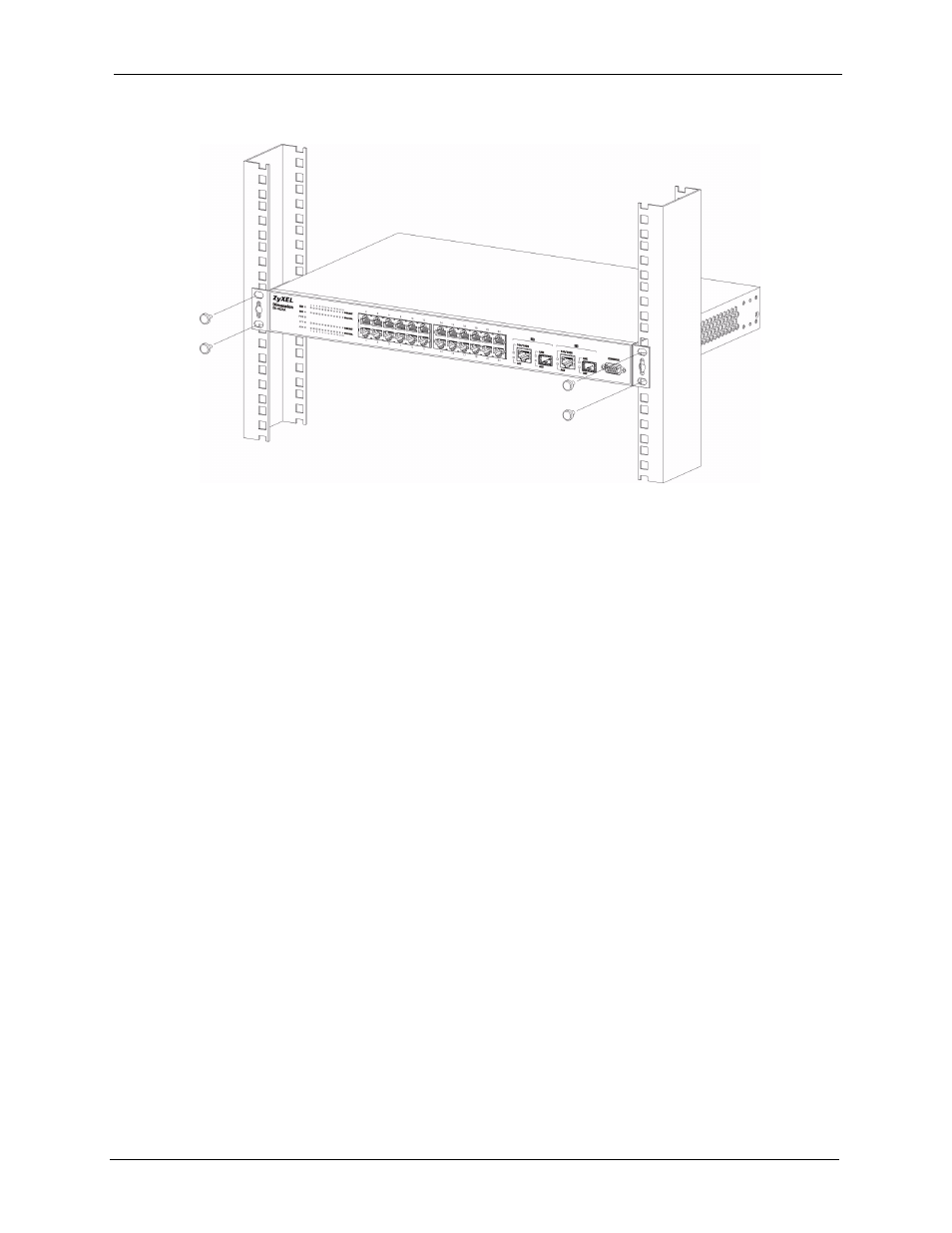

Figure 8 Mounting the ES-4024A on a Rack
2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting
bracket holes into the rack.
3 Repeat steps
and
to attach the second mounting bracket on the other side of the rack.
