ES-4024A User’s Guide
Chapter 3 Hardware Overview 47

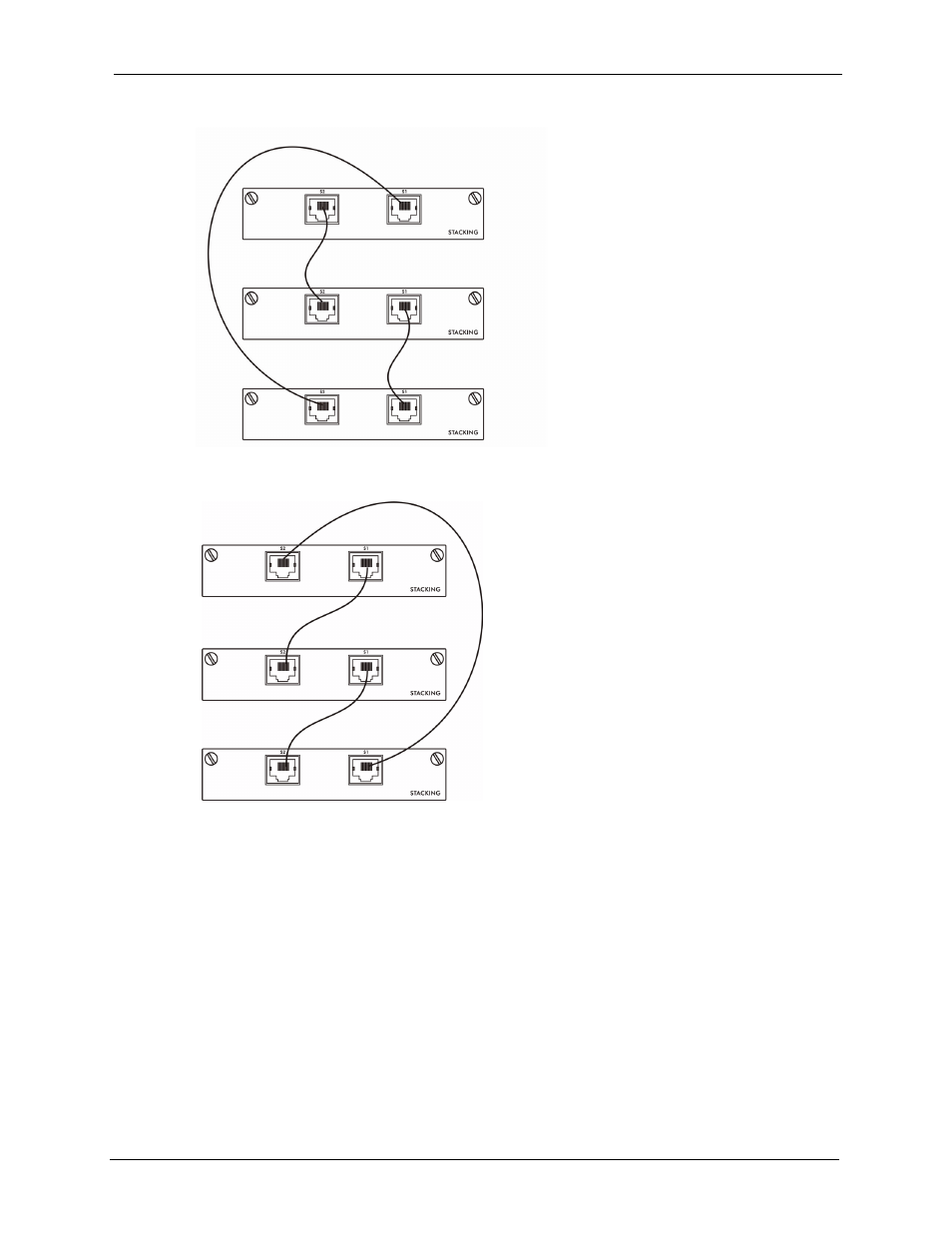

Figure 16 Stacking Example 2
Figure 17 Stacking Example 3
See the chapter on CLI for information on configuring the stacking module (as well as other
ports) using line commands.
3.5 Uplink Scenario Example
Use Ethernet cables when daisy-chaining/uplinking the switches. See the following figure for
an example uplink connection using the stacking module. You must uplink to a Gigabit switch
using a category 5 Ethernet cable supporting Gigabit line rate when uplinking using the
stacking module.
