ES-4024A User’s Guide
Chapter 18 DHCP 121

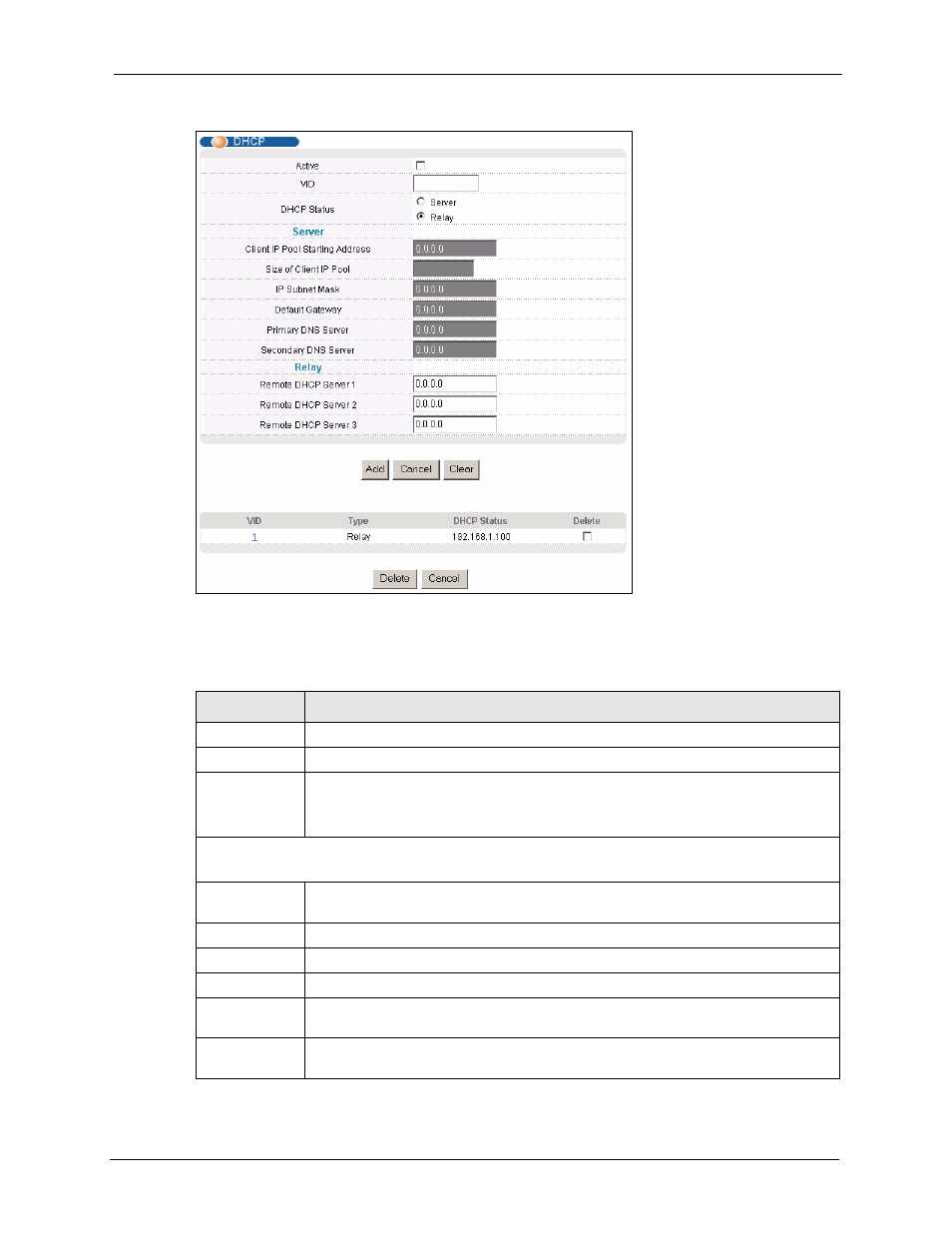

Figure 58 DHCP: Relay
The following table describes the DHCP relay related labels in this screen.
Table 36 DHCP: Relay
LABEL DESCRIPTION
Active Select this check box to enable the DHCP settings.
VID Enter the ID number of the VLAN group to which this DHCP settings apply.
DHCP Status Select Sever to set the ES-4024A to act as a DHCP server.
Select Relay to set the ES-4024A to act as a DHCP relay.
Then set the corresponding fields below.
Relay
The fields are editable when you select Relay in the DHCP Status field.
Remote DHCP
Server 1.. 3
Enter the IP address(es) of the DHCP server(s).
Add Click Add to insert the settings as a new entry in the summary table.
Cancel Click Cancel to reset the fields to your previous configurations.
Clear Click Clear to reset the fields back to the factory defaults.
VID This field displays the ID number of the VLAN group to which this DHCP settings
apply.
Type This field displays the type of the DHCP mode (Server or Relay) for this entry. None
indicates the rule is inactive.
