6287 ALLY PLUS User’s Manual Page 4-12

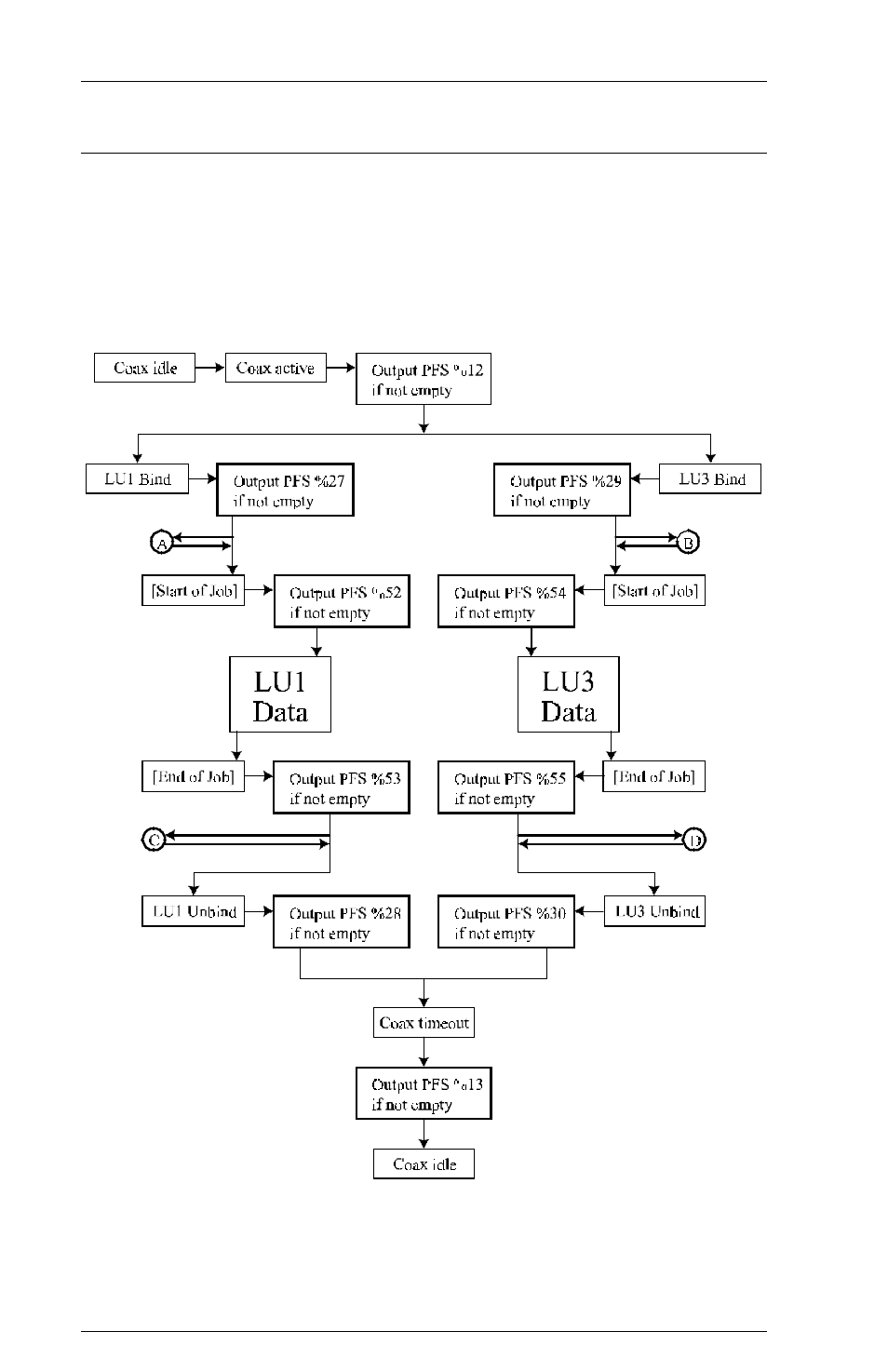

A, B, C and D are entry and exit points where data can branch to or from a
CUT or DFT Local Copy, or an alternate host print job. Examples are
illustrated on the following pages.
Job Boundary PFS Examples
The following pages contain examples of host and alternate host data
streams. The examples show where the job boundaries are placed, assuming
that the PFSs have been programmed.
Standard Coax Host Print Job
