Page 2-3 INSTALLATION
Connections
The following section describes and illustrates how to make the required
and optional physical connections between the ALLY PLUS and the other
components of the system. Be certain to use AGILE 6287 ALLY PLUS
cables for connections to printer(s) and alternate host(s). Approved cables
are listed in the following chart:
AGILE 6287 ALLY PLUS CABLE CHART
AGILE P/N DESCRIPTION
830650-1 Standard Parallel Output (DB-25 P/Centronics 36) 6'
830680-1 ALLY+ Parallel Alternate Host (DB-25 P/DB-25 P) 6'
830730-1 ALLY+ Serial COM Port Adapter (DB-25 P) 1'
830750-1 ALLY+ Serial 4045/HP LJIII (DB-25 P) 7'
830760-1 ALLY+ Serial Zeta Plotter (DB-25 P) 7'
830770-1 ALLY+ Serial Norcom 1700 (DB-25 S) 7'
830780-1 ALLY+ Serial HP-7550 (DB-25 P) 7'
830790-1 ALLY+ Serial Alternate Host (DB-25 S) 7'
830800-1 ALLY+ Serial Alternate Host (DB-9 S) 7'
830810-1 ALLY+ Serial Alternate Host (Unisys PC DB-25 S) 7'

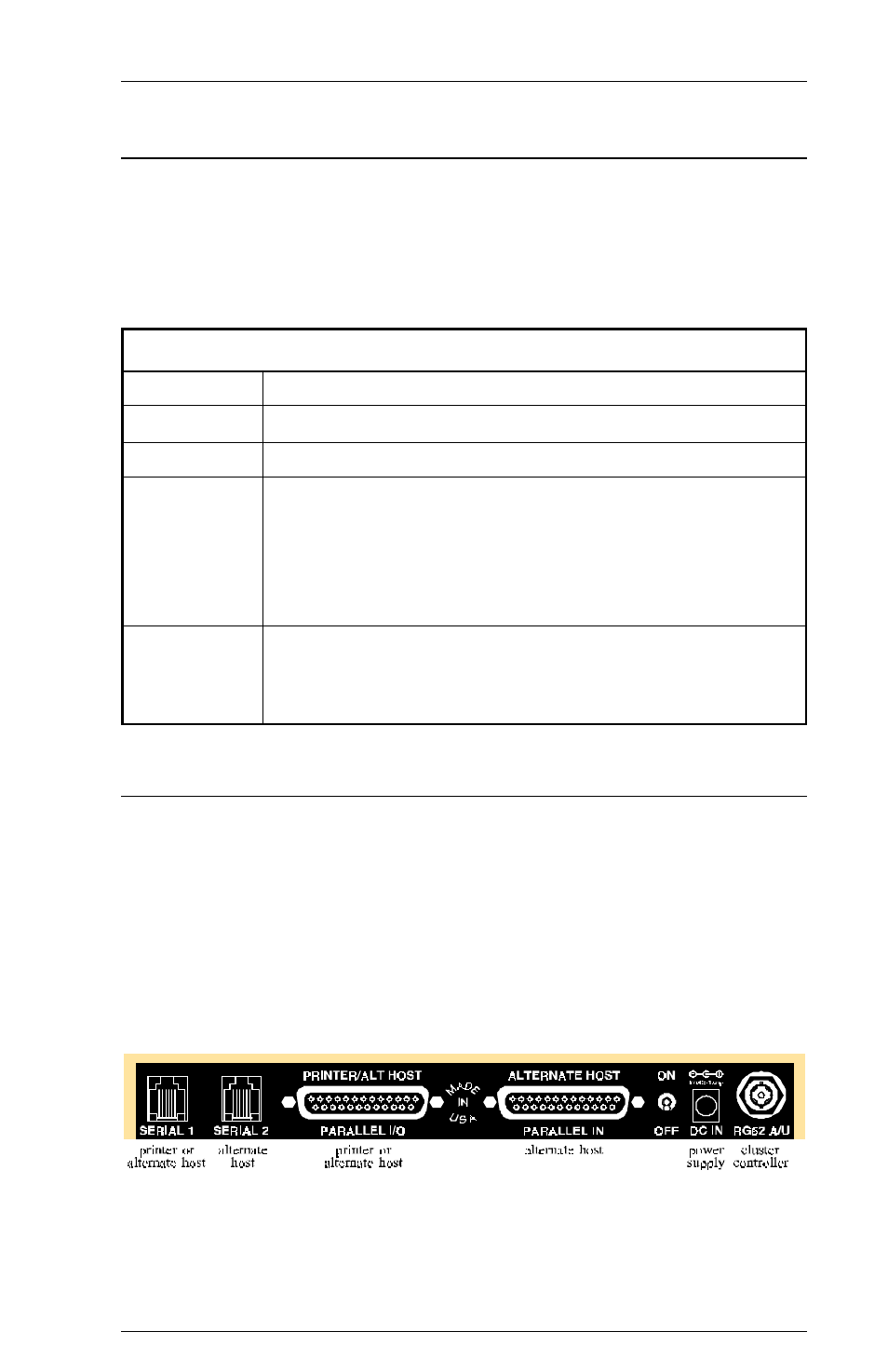

6287 ALLY PLUS Rear Panel
The rear panel of the ALLY PLUS provides an on/off switch, an AC power
adapter outlet, a coax port for connection to the establishment controller
(RG62 A/U), a Centronics parallel printer port (PARALLEL I/O), an RJ-12
serial printer port (SERIAL 1), a parallel alternate host port (PARALLEL
IN) and an RJ-12 serial alternate host port (SERIAL 2). The PARALLEL
I/O port and the SERIAL 1 port are I/O ports, so they may be used as
secondary alternate host ports instead of printer ports.
