6287 ALLY PLUS User’s Manual

Page 12-28

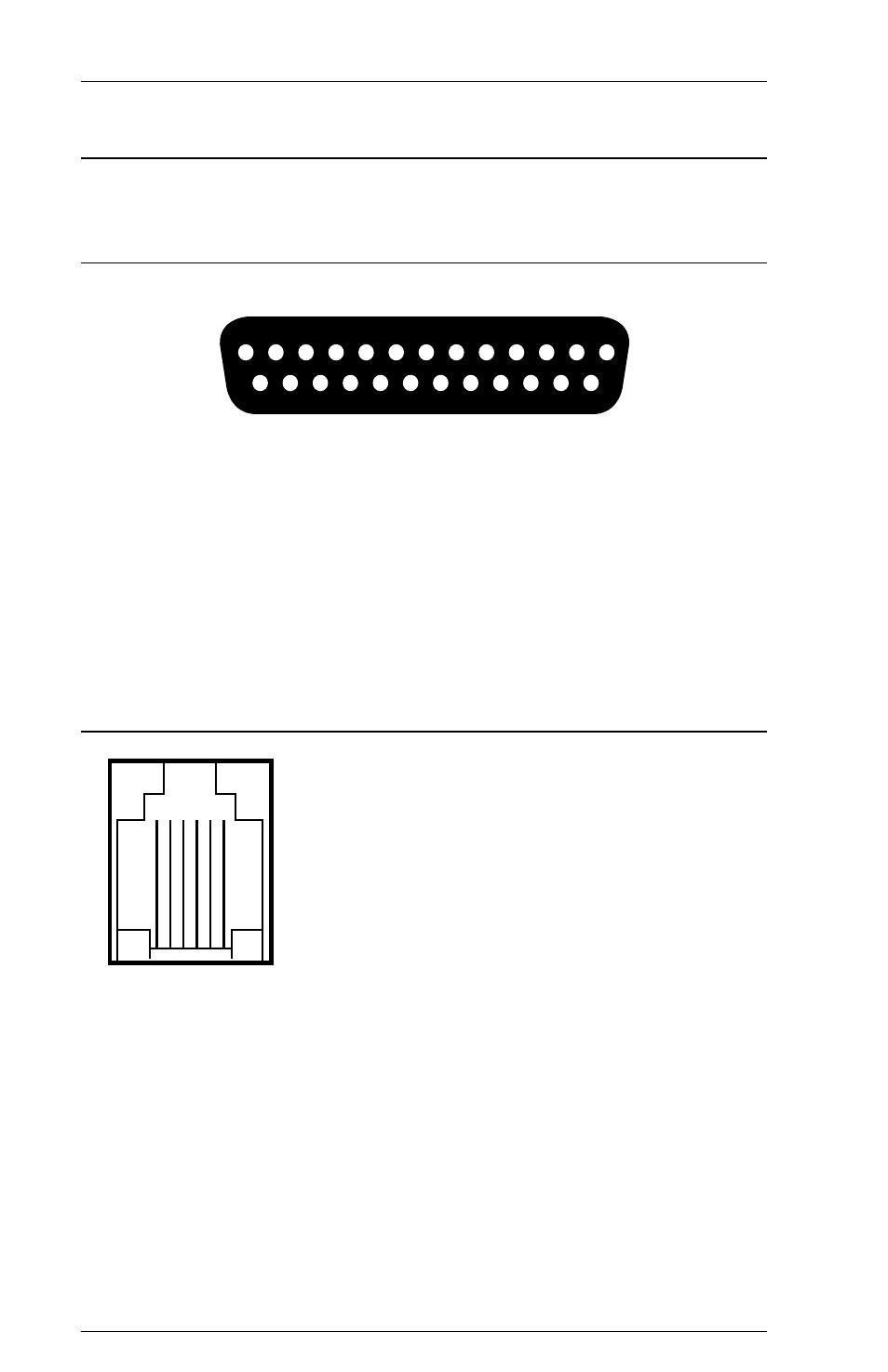

Pin-out Charts

These charts illustrate the pin-outs of each of the ALLY PLUS I/O ports.

Parallel Ports

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

Serial Ports

1 = Strobe

6 = Data 5

11 = Busy

2 = Data 1

7 = Data 6

12 = Printer Error

3 = Data 2

8 = Data 7

13 = Select

4 = Data 3

9 = Data 8

15 = Fault

5 = Data 4

10 = Acknowledge

16 = Init

1 2 3 4 5 6

1 = NC
2 = TXD

→

(Transmit Data)

3 = RXD

←

(Receive Data)

4 = CTS

→

(Clear To Send)

5 = RTS

←

(Ready To Send)

6 = GND (Ground)
