6287 ALLY PLUS User’s Manual Page 2-4

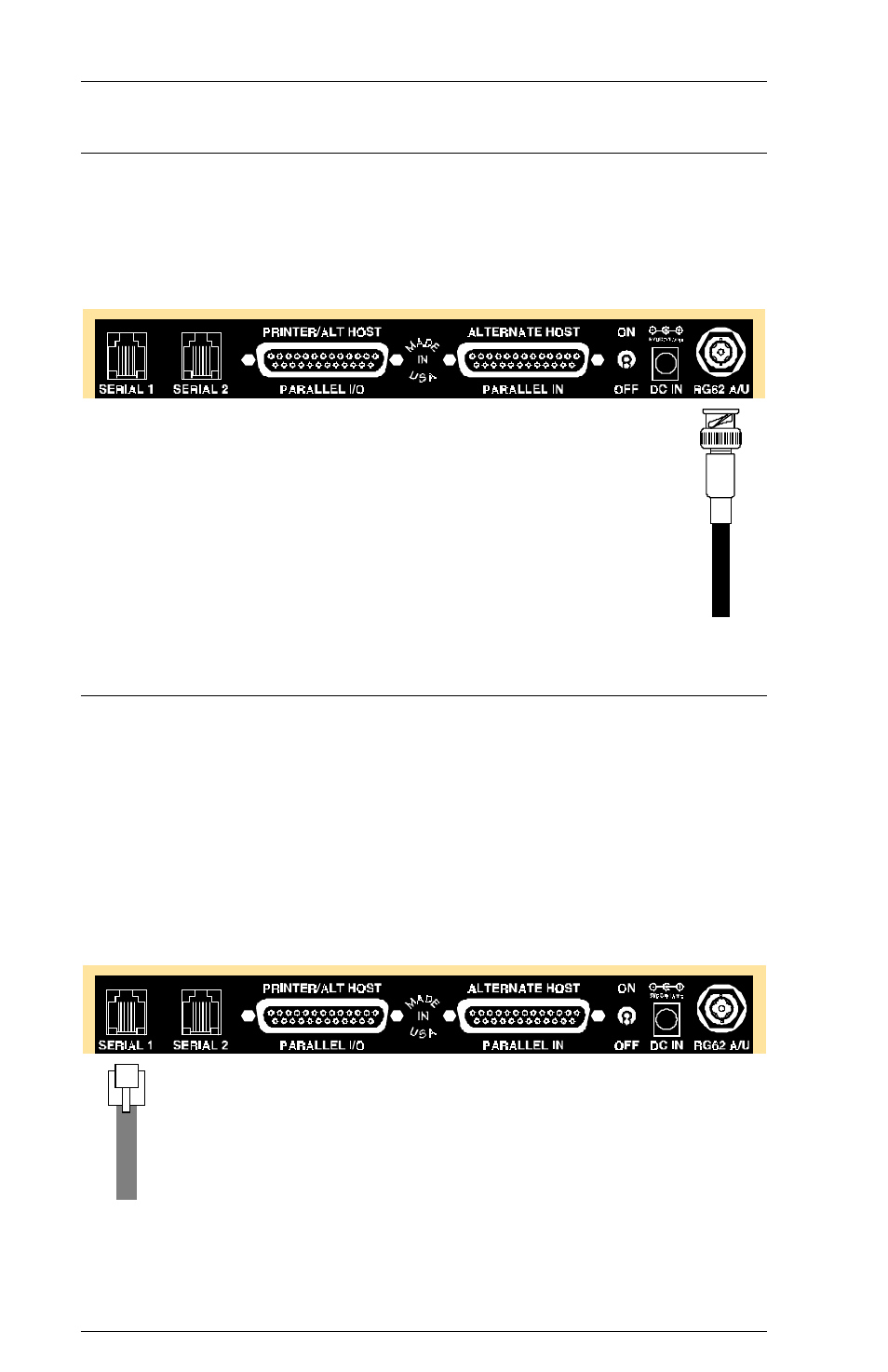

6287 ALLY PLUS Connection to Establishment Controller
Attach the device end of an RG62 A/U coax cable to the coax connector on
the rear panel of the ALLY PLUS. Rotate the cable connector 1/4 turn
clockwise to lock it in place. Attach the EC end of the coaxial cable to the
establishment controller at the coax port designated for the ALLY PLUS.
6287 ALLY PLUS Connection to Printer/Plotter
Insert the device end of the AGILE printer cable into the connector on the
rear of the printer. Then connect the ALLY PLUS end of the AGILE printer
cable to the proper output port of the ALLY PLUS. Secure the cable to the
printer using the clips (parallel) or screws (serial) provided. If using the
AGILE COM port adapter with a serial cable, connect the serial port end of
the cable to the AGILE COM port adapter, then connect the adapter to the
SERIAL 1 port on the ALLY PLUS. The FCC requires all printer interface
cables to be properly shielded.
(serial printer connection to ALLY PLUS)
