CHAPTER 6 PERIPHERAL HARDWARE FUNCTION
92 User’s Manual U10676EJ3V0UM

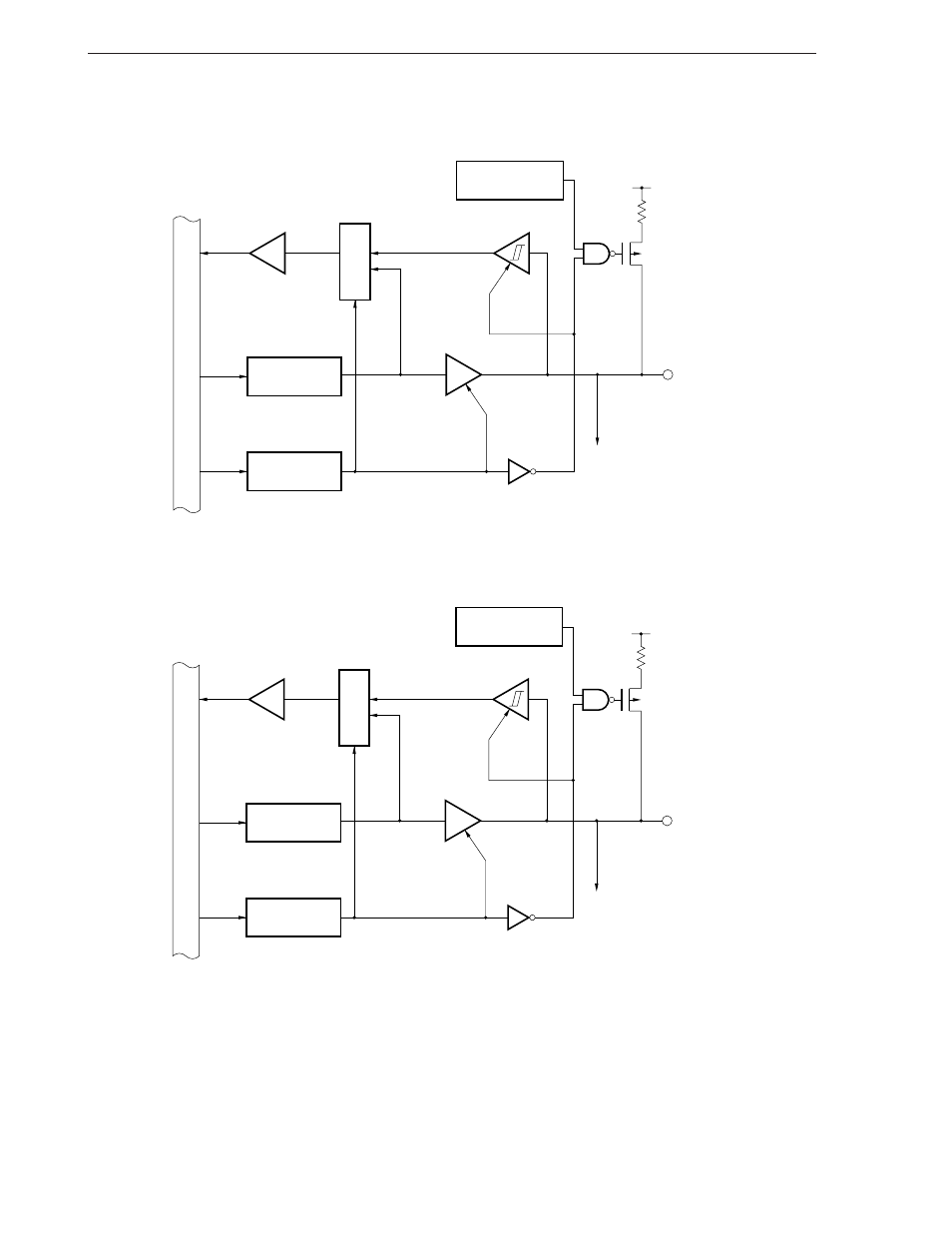

Figure 6-6. P62 Configuration
Input buffer
Output latch
PM62
POGA bit 6
V DD
Pull-up resistor
P-ch
P62/PTH00
PTH00
Internal bus
MPX
Output buffer
Input buffer with
hysteresis characteristics
Figure 6-7. P63 Configuration
Input buffer
Output latch
PM63
POGA bit 6 V DD
Pull-up resistor
P-ch
P63/PTH01
PTH01
Internal bus
MPX
Output buffer
Input buffer with
hysteresis characteristics
