Chapter 9 – Modem (Transparent) Mode

Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354A)

83

Scenario 2 – Serial Tunneling in Transparent
Mode

In this scenario, two MultiConnect IP modules in transparent mode aid in the communication between two
serial devices that are connected to the RS-232 interface (S0) of the MultiConnect IP modules. Serial
tunneling is achieved in the transparent mode where raw data is communicated.

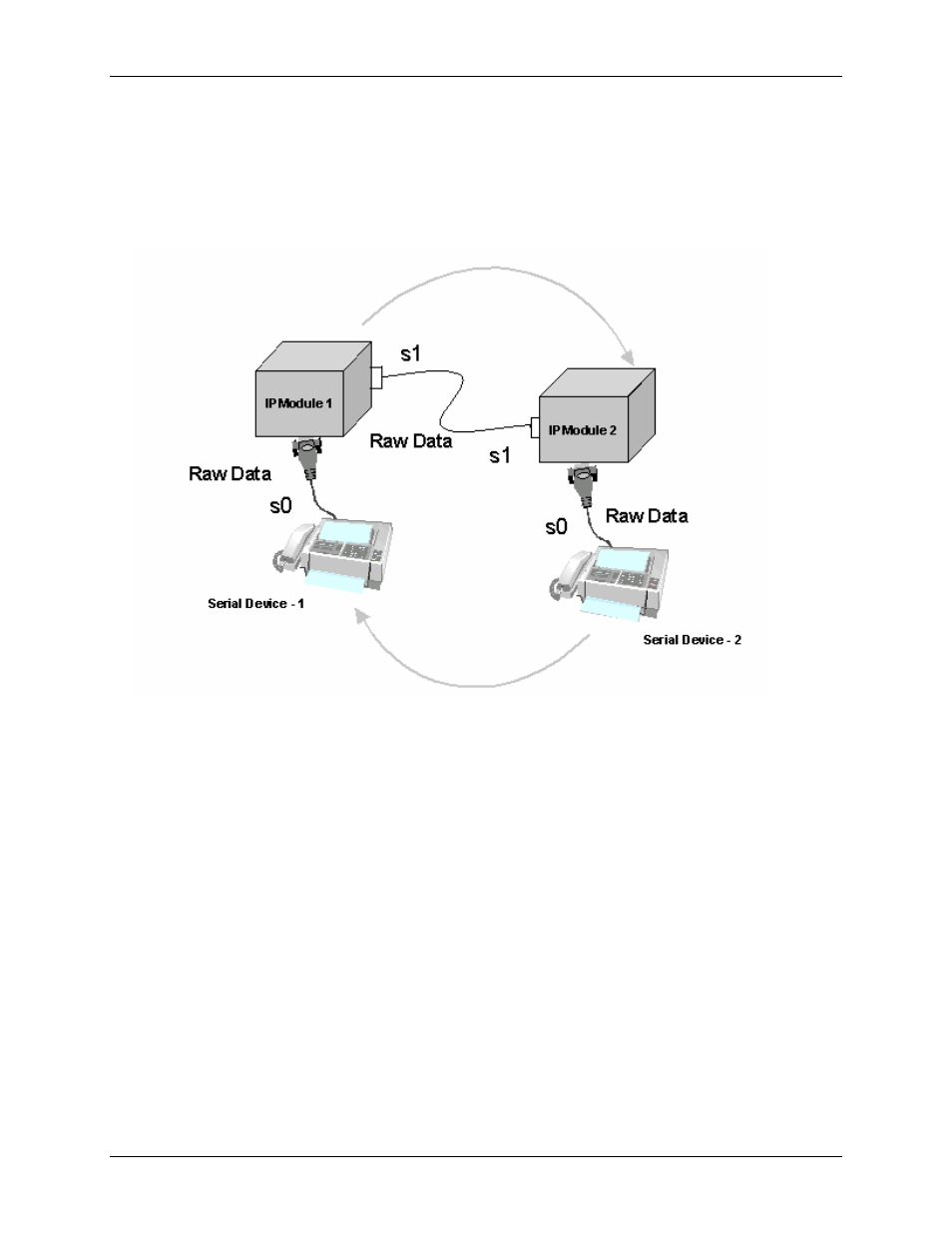

Serial Tunneling in Transparent Mode
