Chapter 2 – Installation

Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354A)

13

Connecting the Power

The adapters are powered in one of two ways:

Through the DSR Pin of the RS-232 Cable

Adapters powered this way are shipped with an RS-232 cable that has a power pin instead of a
DSR pin.

Through an External Power Supply

Adapters powered this way are shipped with a universal power supply and its accompanying power
cord and an RS-232 cable that has a DSR pin instead of a power pin.

Connecting the External Power

1.

Plug the power supply cable with attached transformer block into the power connector on the
back of the MultiConnect adapter.

2.

Plug the AC cord receptacle into the transformer block. Plug the other end into a power outlet.

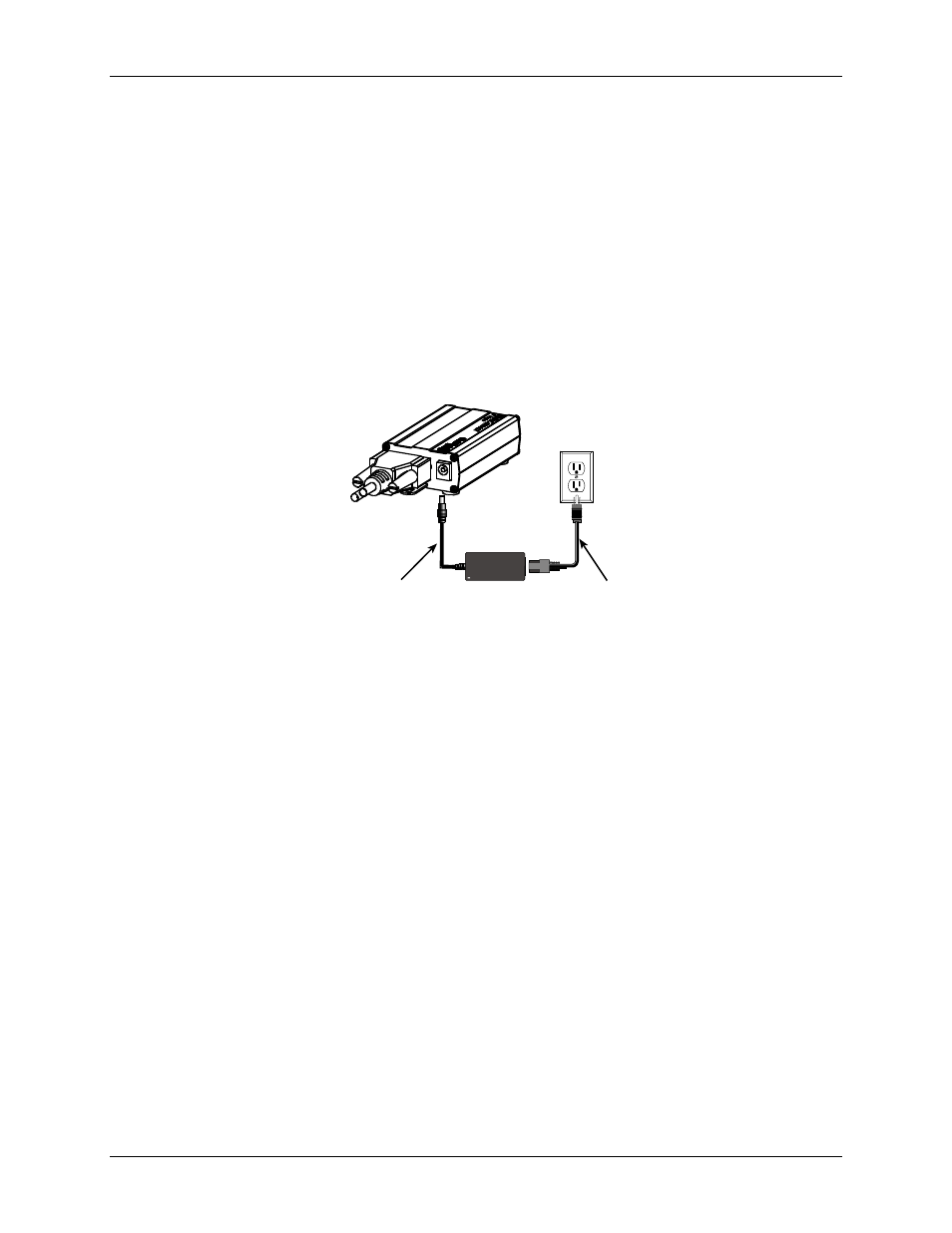

Plug Power Supply Cable with

Transformer into the Back of

the Adapter

Plug AC Cord into

Transformer Block

and Outlet

One end of

RS-232

Shown

Here
