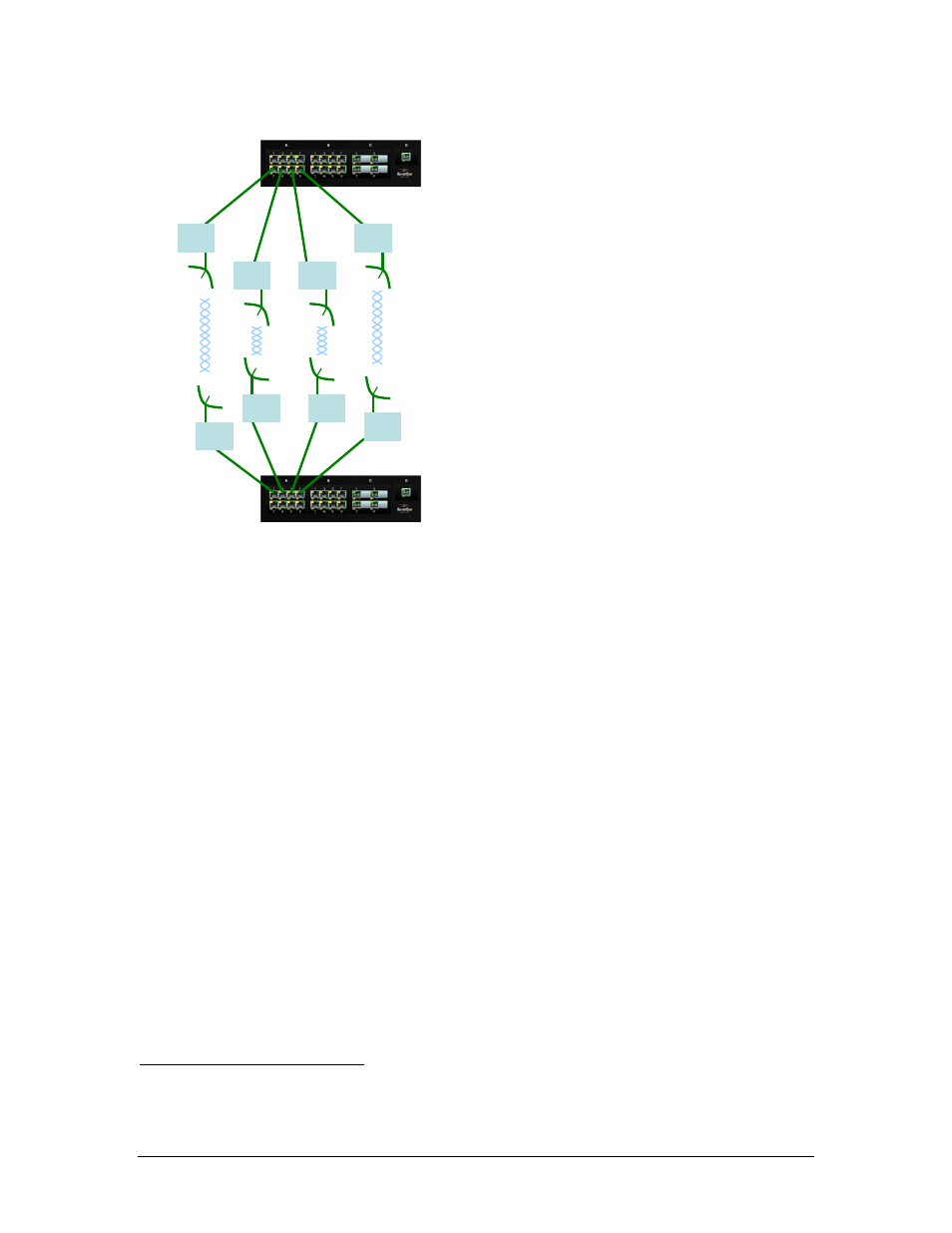

110 – Creating a reliable infrastructure using wireless bridges (between two facilities) and LACP.
“A” indicates a Wi-Fi wireless Bridge or other wireless Bridges.
The list of commands to configure, edit and manage LACP on the Magnum 6K family of
switches is the following:
Syntax lacp - enable the LACP configuration module within CLI
Syntax lacp - enable or disable LACP 7
Syntax add port= [priority=<0-65535>] – add the specified list of ports
to form the logical LACP trunk. Default value for priority is 32768. The lower the value assigned
to priority, the higher the priority. The port with the highest priority is the primary port.
Syntax del port= - delete specified ports from the LACP membership
Syntax edit port= [priority=] - edit the membership of the
ports specified. The priority can be from 0 – 65535
Syntax show lacp –
displays the status and other relevant LACP information
Some other definitions are worth noting are primary port. Primary port is the port
over which specific traffic like Multicast (IGMP), unknown Unicast and
broadcast traffic is transmitted. As shown by the add port command, the port with
7 Before enabling, please ensure that the correct ports are configured. If network connectivity is lost due to a port being
configured as a LACP port, you will need to physically access the switch via the console to correct this error.
