PTQ-PDPMV1 ♦ Quantum Platform Configuring the Processor with Unity Pro
PROFIBUS DP Master Network Interface Module for Quantum User Manual
ProSoft Technology, Inc. Page 69 of 306
August 12, 2014

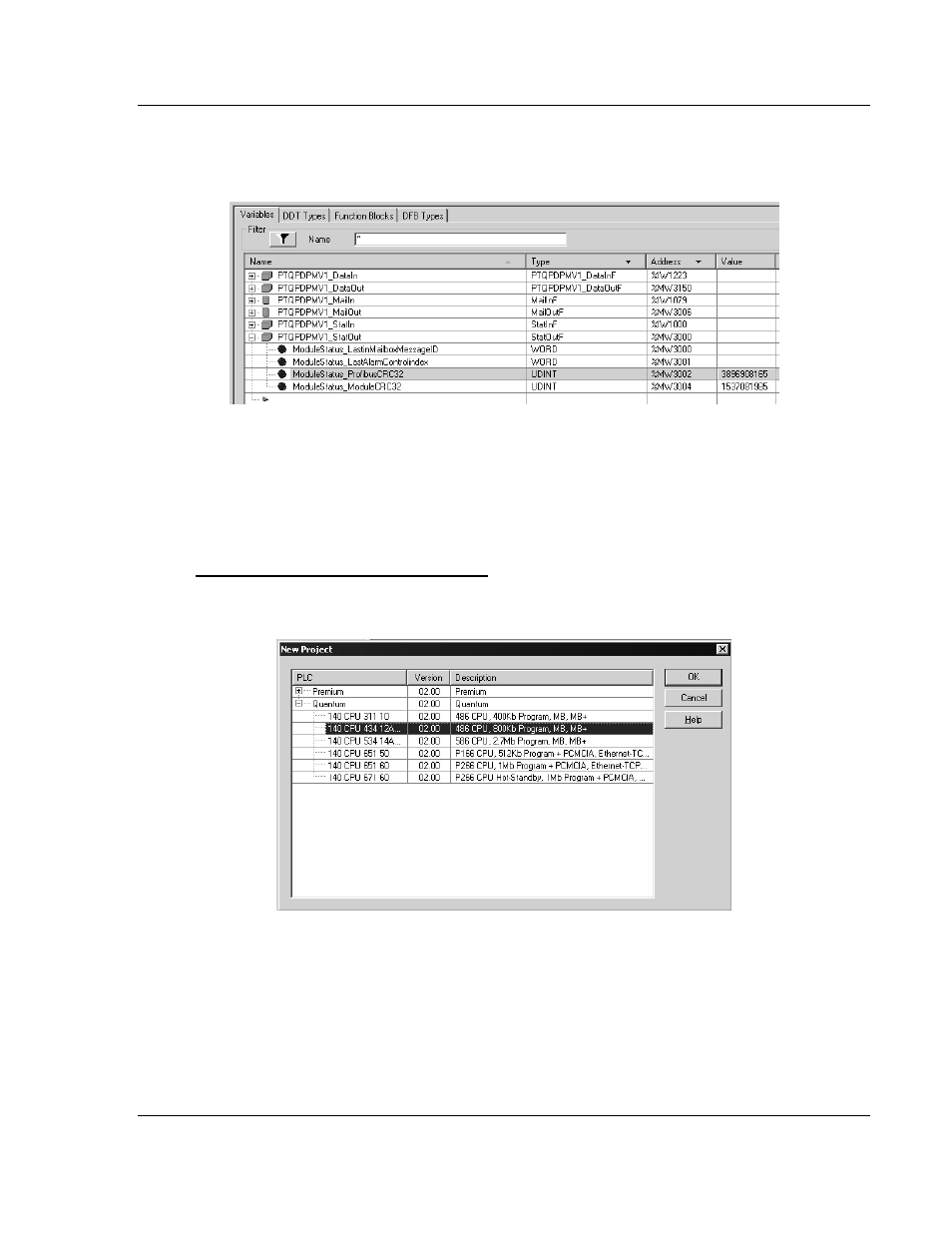

3 Go to the U NITY P RO V ARIABLES T AB and select the _StatOut variable and
expand the structure to expose the ModuleStatus_ProfibusCRC32 element.
Under the Value column area, paste the copied checksum.
4 Repeat steps 2 and 3 above for the module checksum value. P ASTE the
value into ModuleStatus_ModuleCRC32 variable.
5 Download the new values in the program to the processor.
3.1.2 Setting Up General Unity Pro Project Settings
To set up general Unity project settings
1 Start Unity Pro. Open the F ILE menu, and then select N EW . This action opens
the New Project dialog box.
2 The New Project dialog box shows a list of processors that it can configure.
Choose the processor you are configuring from the list, and then click OK to
open the Project Browser.
