5 All the files required for your Concept application will be now located at
C:\project\DFB.

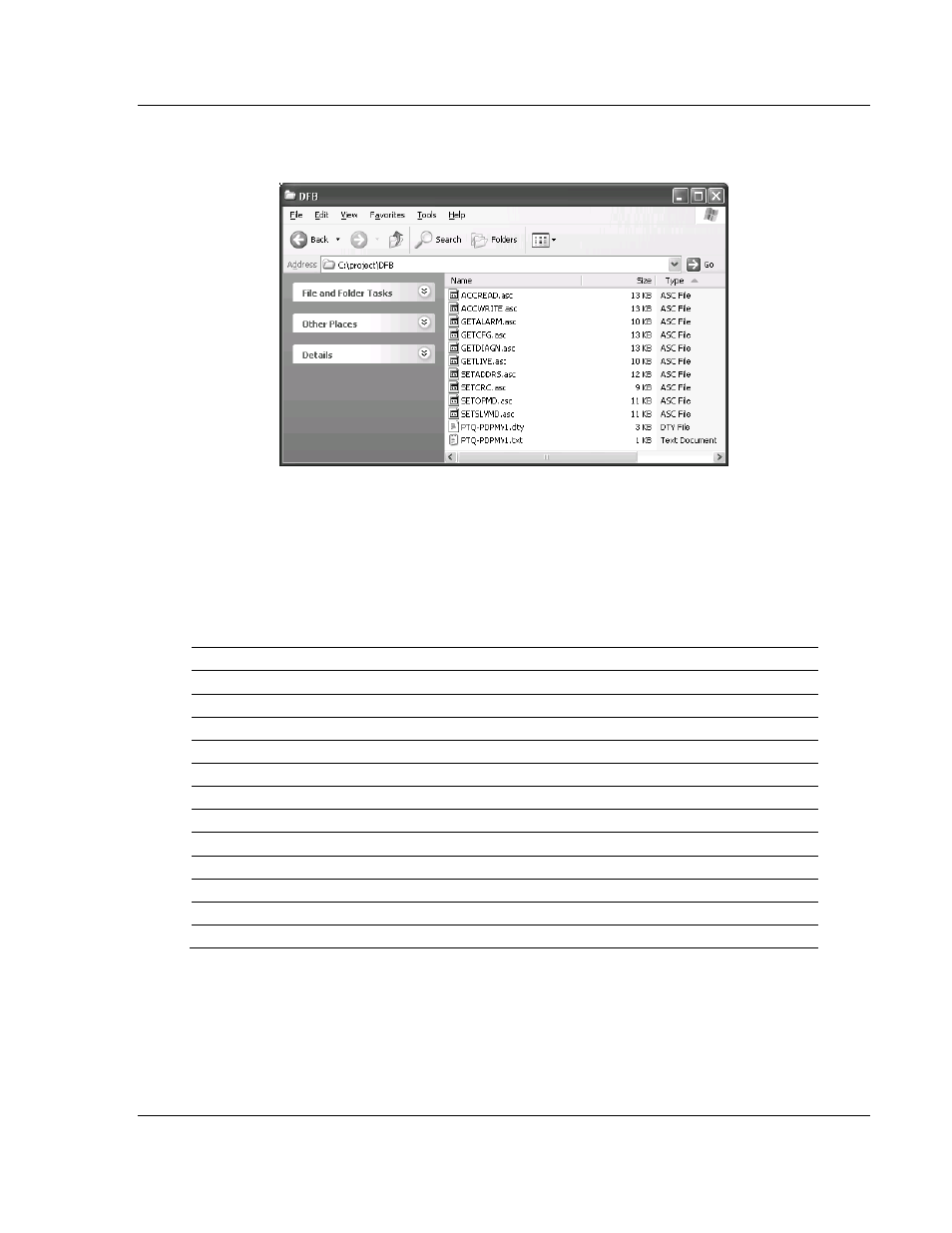

The following section provides a general overview of the files that were exported.
4.4.1 -.ASC files
Each function block is available in ASCII format. These files can be converted
through the Concept Converter tool in order to be used in the Concept project.
Refer to Backing Up the Project (page 54) for file locations.
File Name Description Required/Optional
1
ACCREAD.ASC Acyclic Read Mailbox Optional
ACCWRITE.ASC Acyclic Write Mailbox Optional
GETALARM.ASC Alarm Mailbox Optional
GETCFG.ASC Get Configuration Mailbox Optional
GETDIAGN.ASC Get Diagnostics Mailbox Optional
GETLIVE.ASC Get Live List Mailbox Optional
SETADDRS.ASC Set Slave Address Mailbox Optional
SETCRC.ASC Set CRC (not mailbox - used to sync CRCs) Required
SETOPMD.ASC Set Operating Mode Mailbox Optional
SETSLVMD.ASC Set Slave Mode Mailbox Optional
SETSLVS.ASC Start/Stop Slaves Dynamically Optional
ColdBT.ASC Remote Coldboot from PLC Optional
1
Optional means that you should import this function block only if your application
requires that specific mailbox. The status and PROFIBUS data will be available
even if no optional mailbox function blocks are imported into your project. The
SETCRC.ASC function block is required to synchronize the input and output
CRCs (page 128) while configuring the module.
