Configuring the Module PTQ-PDPMV1 ♦ Quantum Platform
User Manual PROFIBUS DP Master Network Interface Module for Quantum
Page 30 of 306 ProSoft Technology, Inc.
August 12, 2014

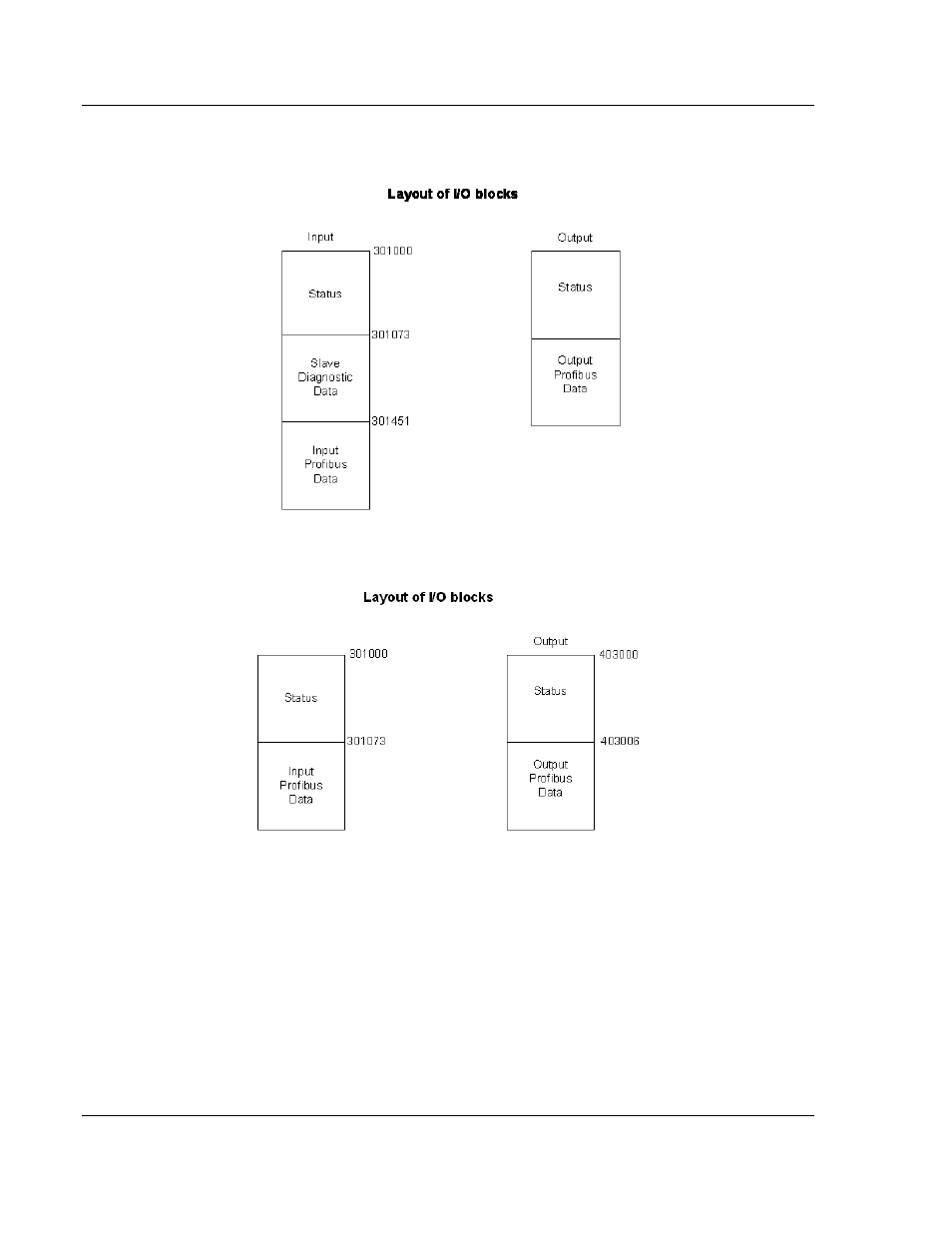

The following diagram shows the layout of the I/O blocks if Mailbox Messaging is
set to N
O , and Slave Diagnostics to Y ES .
The following diagram shows the layout of the I/O blocks if Mailbox Messaging is
set to N
O , and Slave Diagnostics to N O .
In ProSoft Configuration Builder, the Show Concept Map and Show Unity Map
commands show the layout of the entire input and output backplane blocks.
Refer to Input and Output Data Block Format (page 251) for detailed information
on the contents of these blocks, and a discussion of how various configuration
options change the layout of these blocks.
