To view the variables that were created during this procedure, open the P ROJECT

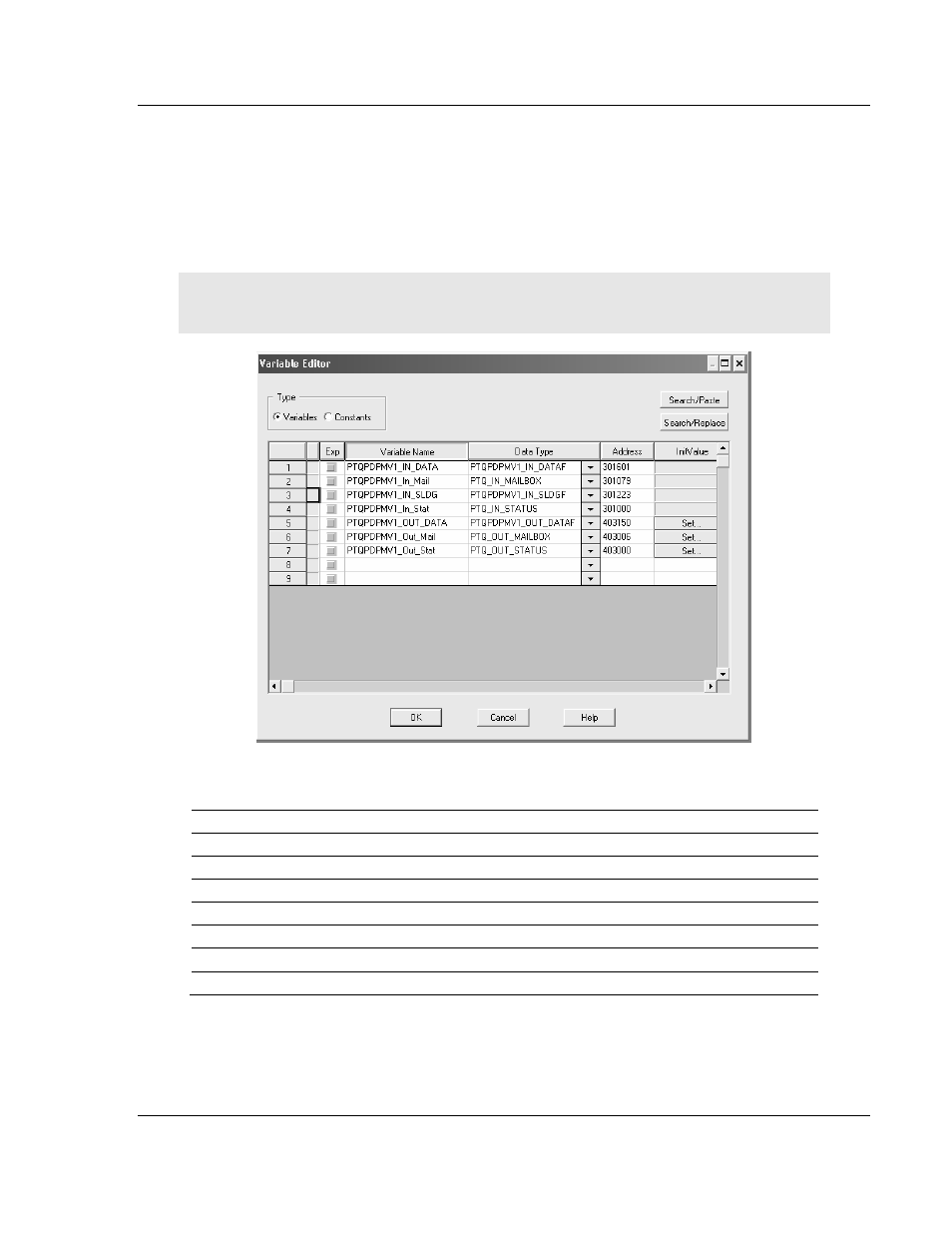

menu, and then choose V ARIABLE D ECLARATIONS . The following illustration
shows a variable for Slave Diagnostics (PTQPDPMV1_SLDG), which is an
optional selection. Refer to PTQ Input and Output Data Blocks (page 251) for
detailed information on the structure of these blocks and how they are affected
by various configuration options.
Note: The memory addresses will match the settings configured through ProSoft Configuration
Builder.
The following variables are available for your application.
Variable Transferred From Transferred To Description
PTQPDPMV1_In_Stat PTQ-PDPMV1 Quantum Status Data
PTQPDPMV1_In_Mail PTQ-PDPMV1 Quantum Mailbox Buffer
PTQPDPMV1_IN_DATA PTQ-PDPMV1 Quantum Input PROFIBUS Data
PTQPDPMV1_Out_Stat Quantum PTQ-PDPMV1 Status Data
PTQPDPMV1_Out_Mail Quantum PTQ-PDPMV1 Mailbox Buffer
PTQPDPMV1_OUT_DATA Quantum PTQ-PDPMV1 Output PROFIBUS Data
PDQPDPMV1_IN_SLDG PTQ-PDPMV1 Quantum Slave Diagnostic Data
Status: The status data can be used to monitor the status of the module and the
PROFIBUS network (input). The function blocks also use the status data for
handshaking purposes during the mailbox handling (input and output).
