72 KARRERA — Installation & Service Manual
Section 4 — System Cabling
ClipStore Cabling
Overview
The Karrera system uses an Ethernet connection for communications with
ClipStore (K2 Summit/Solo,
Figure 34 on page 61 ). Connect an Ethernet
cable from the Karrera Frame, either directly or through a dedicated
Ethernet switch, to the bottom left (of the four) 100BT/1000BT Ethernet
ports on the Summit/Solo backplane.
Note For a detailed cabling description, see the K2 Summit/Solo manuals included
in the packaging.
ClipStore Video Cabling
The ClipStore channels on the server backplane are labeled C1-C4
(Channel 1 through Channel 4 on the Summit) from left to right (
Figure 41 ).
The Solo backplane is not labeled, Channel 1 is on the left and Channel 2 is
on the right when facing the backplane.
ClipStore requires SDI connections for both video and key— two connec-
tions In/Out per channel (C1 in
Figure 41 ) for recording and playback. For
playback only, two SDI connections to Out 1 and Out 2 are all that is
required per channel (C2 in
Figure 41 ).

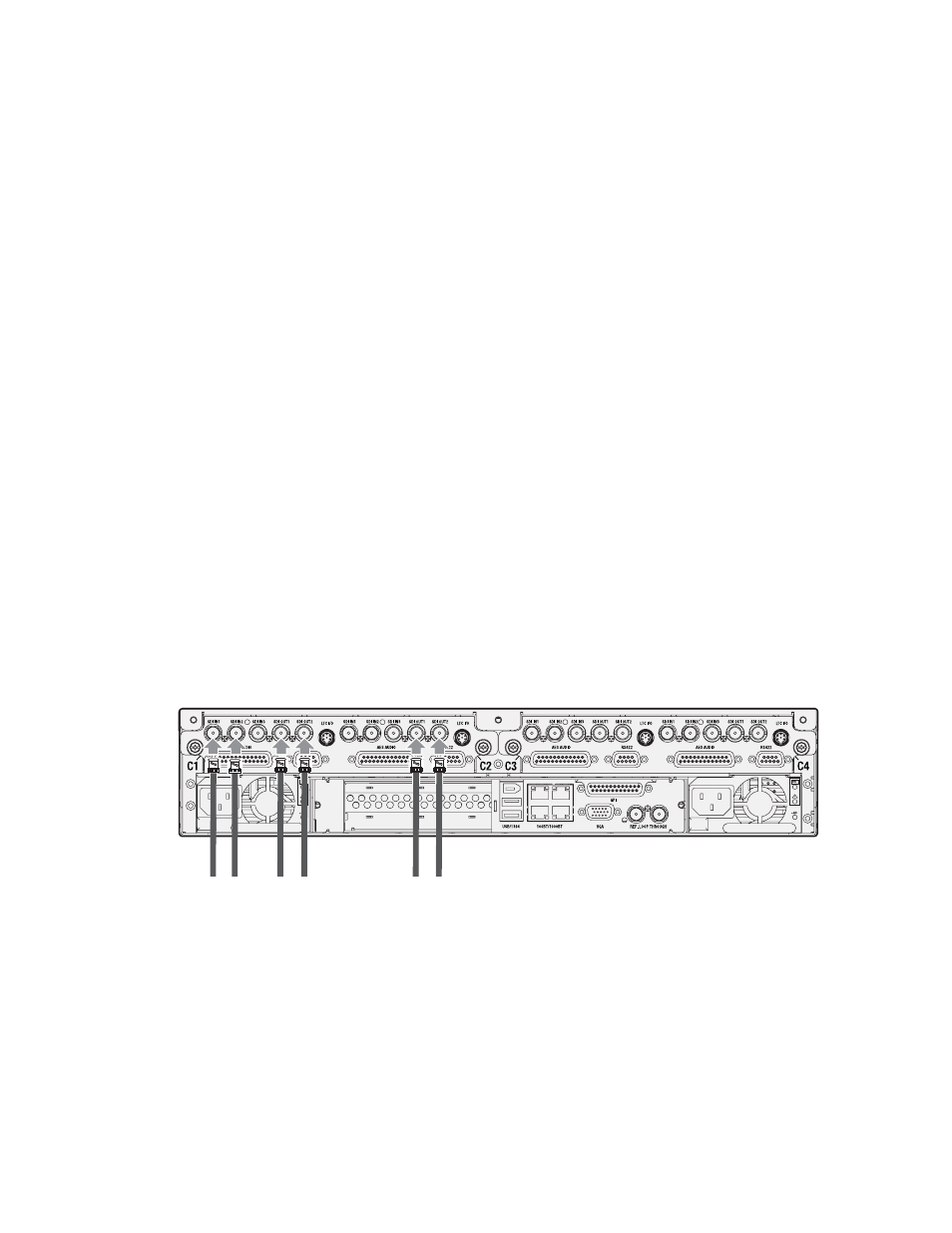

Figure 41. ClipStore Backplane Connections
The ClipStore server (4-channel Summit/2-Channel Solo) can be connected
directly to the frame (
Figure 42 ). It is also possible to connect to the Clip-
Store directly from a router and not use any switcher outputs.
8623266_95
Video/Key
In
(Record/Play)
Video/Key
Out
Video/Key
Out
(Play Only)
