Figure 7. Karrera Single Suite Compact Frame Example
Multiple Suites and Control Surfaces
A Karrera system can be subdivided into two suites, if desired, each of
which can have two control surfaces. Hardware resources in the Video Pro-
cessor Frame can be assigned to an individual suite during configuration,
essentially creating two separate switchers from one Karrera system
(
Figure 8 ).

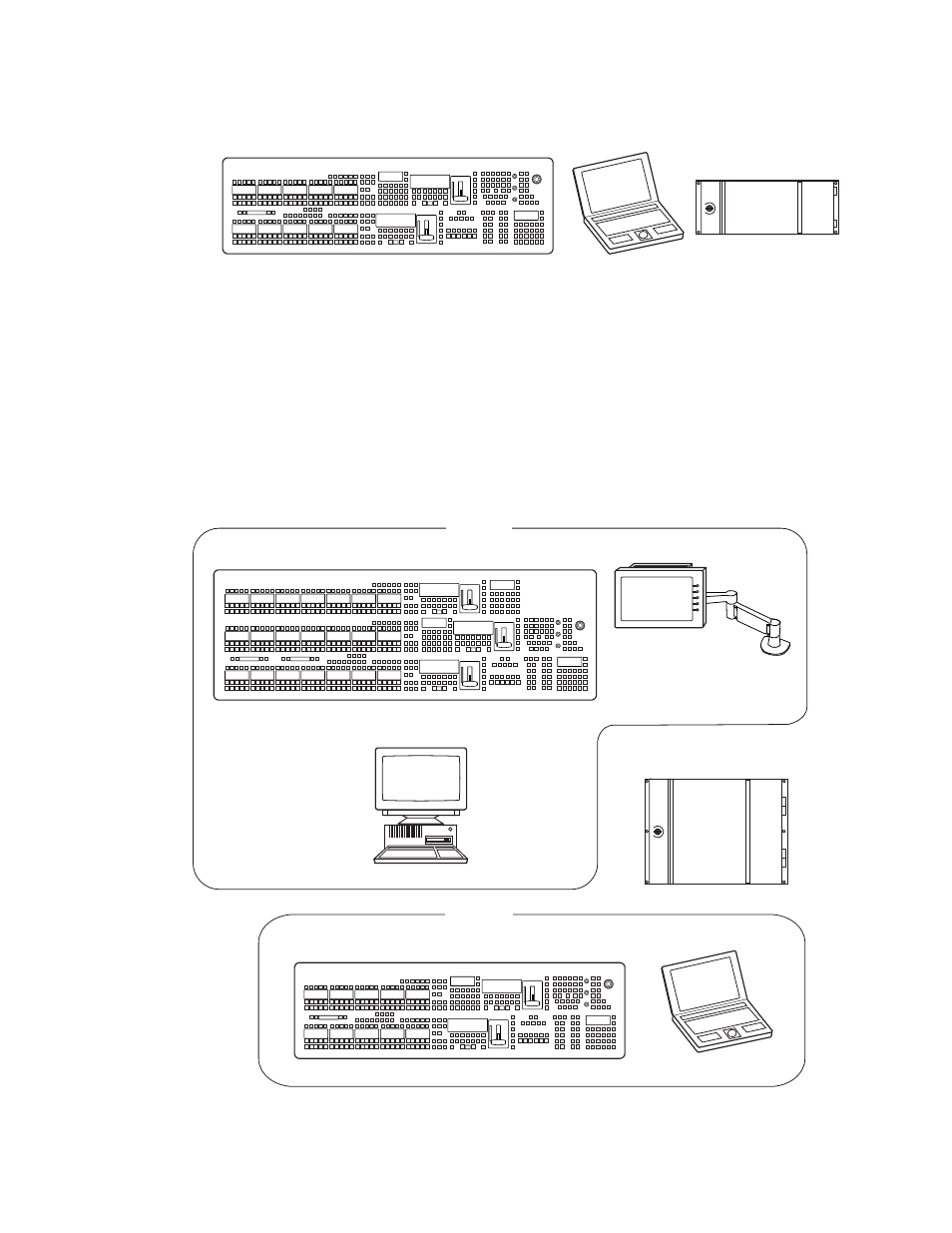

Figure 8. Karrera Multi-Suite Standard Frame Example
8808_01
Karrera 2-ME 25 Control Panel
Karrera 4-RU
Video Processor Frame
Karrera Menu on PC
(Customer Supplied PC)
Optional Touch Screen
Karrera Menu Panel with
with Fanless PC and
Articulated Arm
8808_02
Karrera 3-ME 35 Control Panel
Suite 1
Karrera 2-ME 25 Control Panel
Shared Karrera 8-RU
Video Processor Frame
Karrera Menu on PC
(Customer Supplied PC)
KSP 1-ME
Soft Panel Option
(Customer Supplied PC)
Suite 2
