74 KARRERA — User Manual
Section 3 — Video Mix/Effects

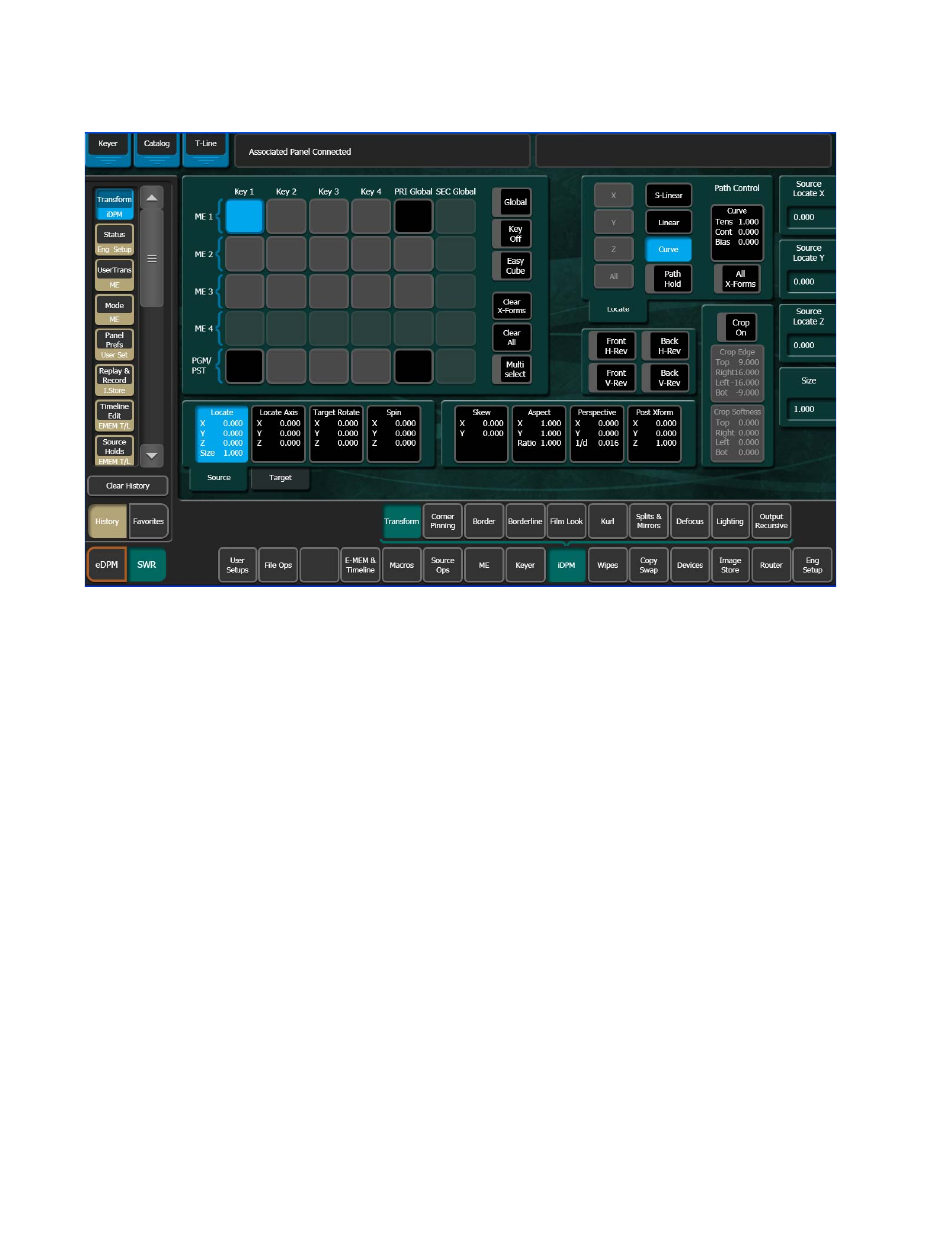

Figure 31. Transform Menu
The Joystick ( X , Y , Z , Size ) can be controlled from the menu with the soft
knobs or keypad entry.
Transforms Menu Delegation
The Transform menu contains a data pad matrix in the upper left for dele-
gation (
Figure 31 ). Data pads for keyers with iDPMs assigned will be
active. Inactive keyers will be grayed out. Touch an active data pad to del-
egate the menu to control one of the up to 16 keyers, or to control a
Global
Channel (see Global Channel Assignments ). The keyer data pads
themselves indicate whether Crop is enabled, Global Assignment is on, and
if the Key Signal is off.
Global Channel Assignments
The Primary Global and Secondary Global Channels are assigned in the
iDPM, Transform menu, however the Secondary Global channel requires
configuration in the ME, Mode menu (see Secondary Global Channel
on
page 77 ).
When a keyer is assigned to a Global Channel, it is also affected by trans-
forms of that Global Channel, permitting the easy creation of complicated
multi-channel moves. Multiple keyers can be assigned to a Global channel,
allowing coordinated moves of all the assigned keyers.
