KARRERA — User Manual 115
eDPM Operations
To access the eDPM menu, touch Source Ops , eDPM.

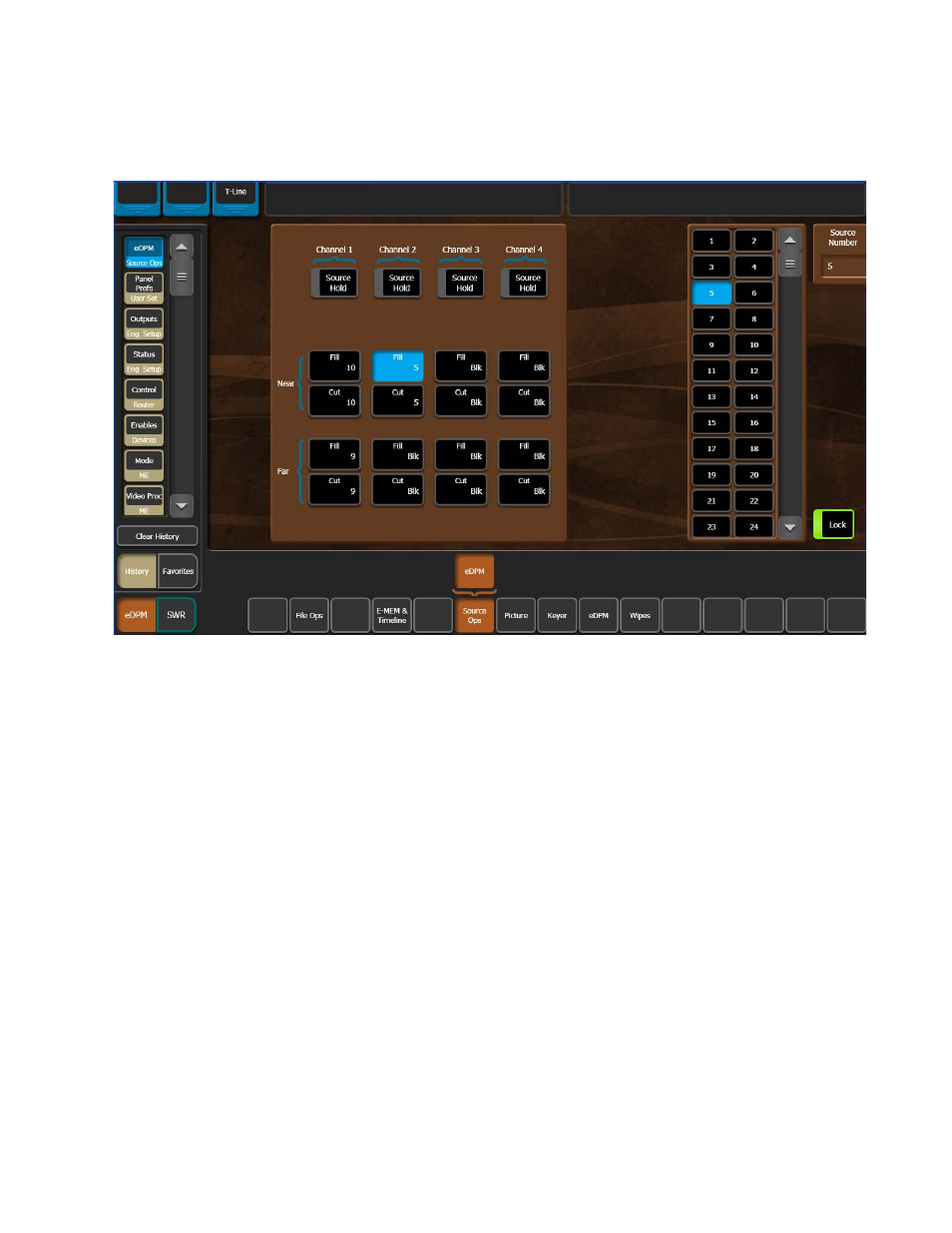

Figure 57. eDPM Source Ops, eDPM Menu
To assign sources in the eDPM Mode Source Ops, eDPM menu (also avail-
able in the Switcher Source Ops menu):
1. Touch the input channel button for the channel you wish to assign a
source (Channel 1-4).
2. Scroll and touch the source you wish to assign to the eDPM channel
from the Sources scrolling list (
Figure 57 , right side of menu).
Note If you touch an eDPM Fill button first, then a source, the Cut and Fill signal
for that channel will be the same. Touch the Cut button to assign a different
source for the Cut button (split key).
3. Repeat Steps 1 and 2 for up to four input sources for each eDPM
channel.
Button Mapping eDPMs to an ME
Map the eDPM outputs to the source select buttons on the MEs in the User
Setups, Panel Prefs, Button Mapping menu (see Button Mapping
on page 23 ).
