Overview

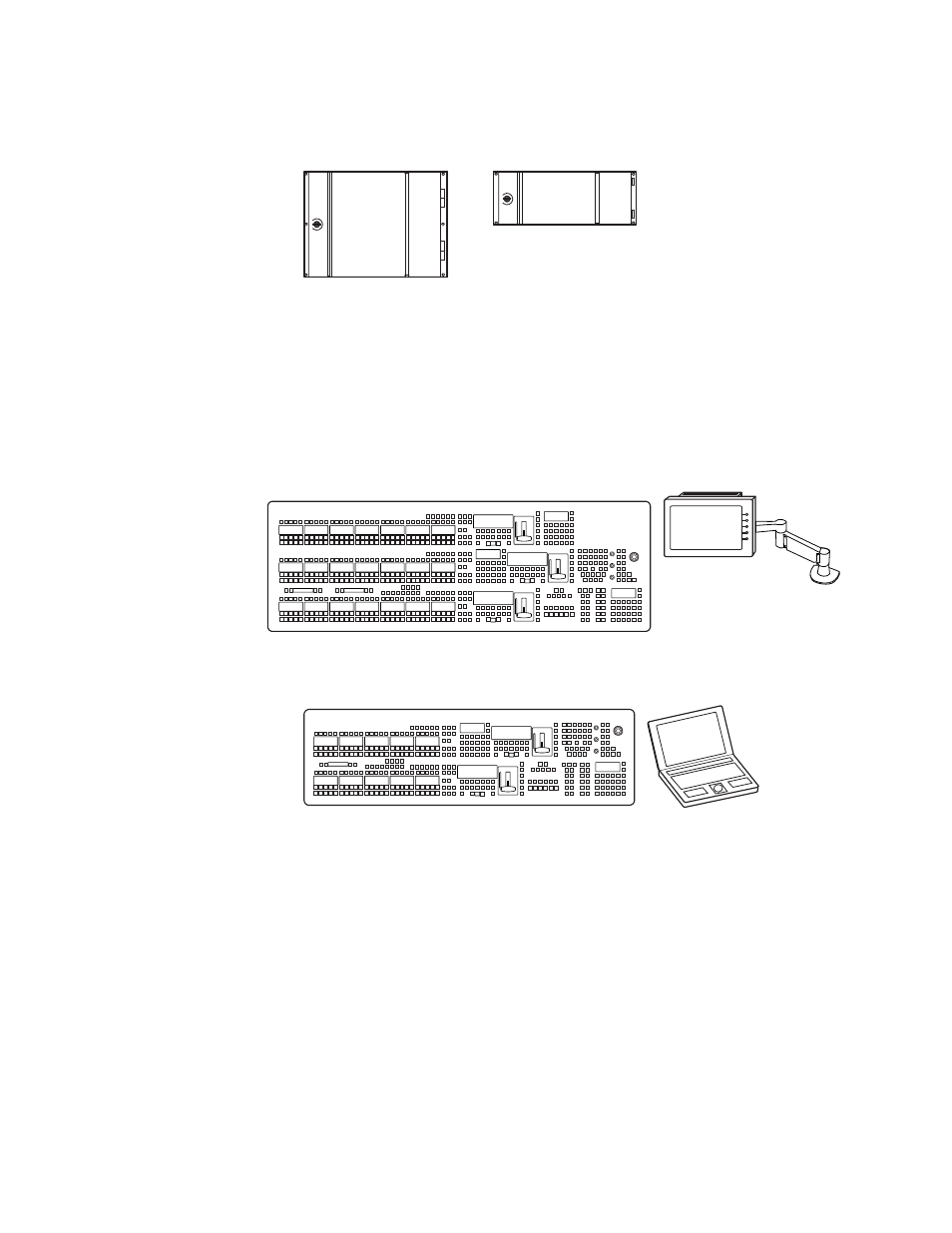

Figure 1. Karrera Video Processor Frames
Karrera Control Surfaces
A Karrera control surface typically consists of a Control Panel and a Menu
application. Representative Karrera control surfaces are shown in the fol-
lowing illustrations.
Figure 2. Karrera 3-ME 35 Control Surface
Figure 3. Karrera 2-ME 25 Control Surface
Karrera Menu Application
The Karrera Menu application software provided with every Karrera
system can be run on a standard PC. This software accesses all the function-
ality of a Karrera system, permitting mouse and keyboard control from a
laptop, or remote control from any location on the network.
8623266_06_K
rr
Karrera 8-RU
Video Processor Frame Karrera 4-RU
Video Processor Frame
Optional Touch Screen
Karrera Menu Panel with
Fanless PC
Menu Panel
Articulated
Arm
8623266_02_K
rr
Karrera 3-ME 35 Control Panel
8623266_03_K
rr
Karrera 2-ME 25 Control Panel
Karrera Menu on PC
(Customer Supplied PC)
