411

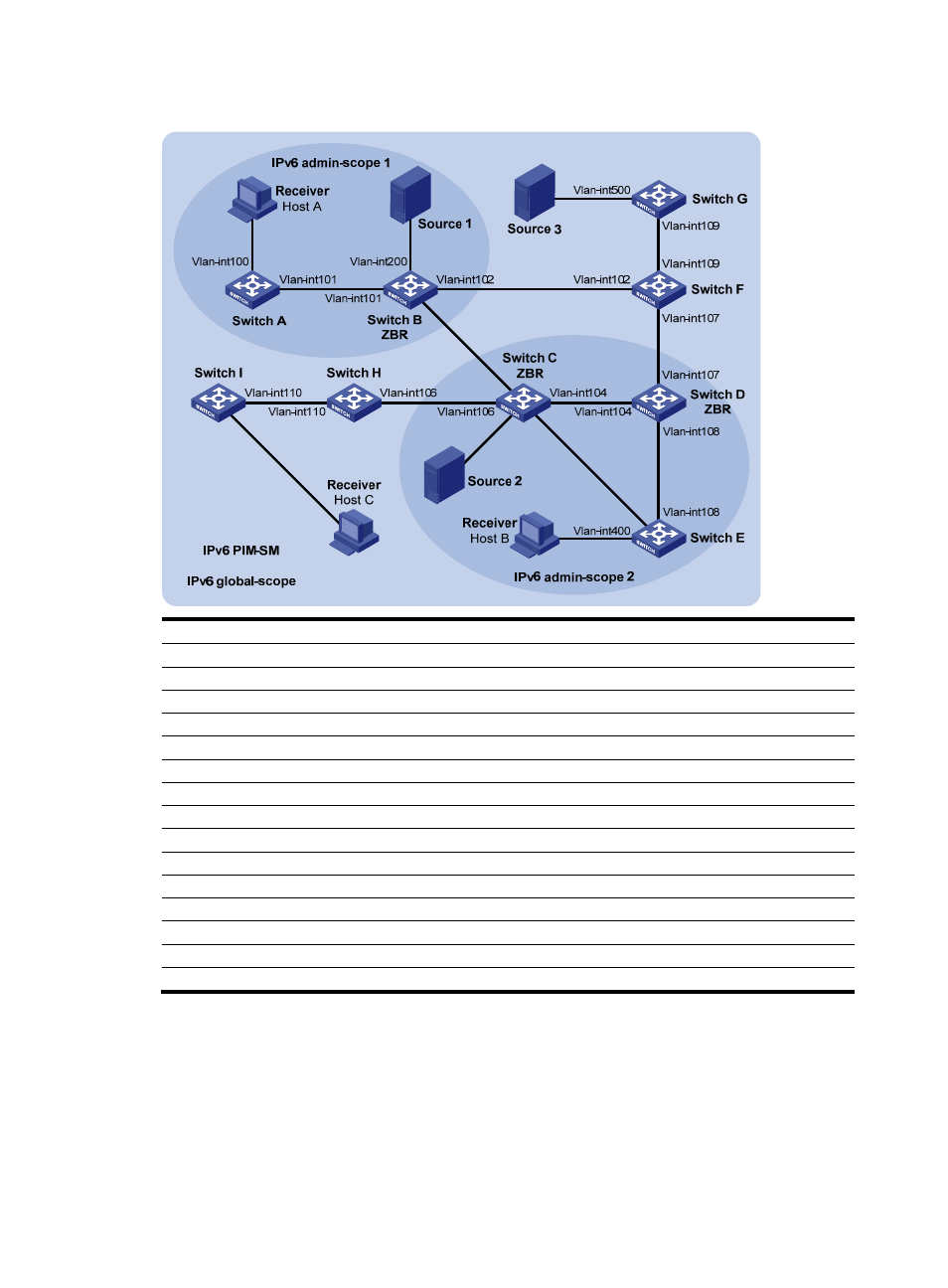

Figure 107 Network diagram for IPv6 PIM-SM admin-scope zone configuration
Vlan-
int1
05
Vl
an
-int103
Vl
an
-int300
Vlan-
in
t105
Vl
an-
int600
Vlan-
int1
03
Device Interface IPv6 address Device Interface IPv6 address
Switch A Vlan-int100 1001::1/64 Switch D Vlan-int104 3002::2/64
Vlan-int101 1002::1/64 Vlan-int108 6001::1/64
Switch B Vlan-int200 2001::1/64 Vlan-int107 6002::1/64
Vlan-int101 1002::2/64 Switch E Vlan-int400 7001::1/64
Vlan-int103 2002::1/64 Vlan-int105 3003::2/64
Vlan-int102 2003::1/64 Vlan-int108 6001::2/64
Switch C Vlan-int300 3001::1/64 Switch F Vlan-int109 8001::1/64
Vlan-int104 3002::1/64 Vlan-int107 6002::2/64
Vlan-int105 3003::1/64 Vlan-int102 2003::2/64
Vlan-int103 2002::2/64 Switch G Vlan-int500 9001::1/64
Vlan-int106 3004::1/64 Vlan-int109 8001::2/64
Switch H Vlan-int110 4001::1/64 Source 1 — 2001::100/64
Vlan-int106 3004::2/64 Source 2 — 3001::100/64
Switch I Vlan-int600 5001::1/64 Source 3 — 9001::100/64
Vlan-int110 4001::2/64
Configuration procedure
1. Configure IPv6 addresses and unicast routing.
Configure the IPv6 address and prefix length for each interface as per Figure 107 . (Details not shown)
Configure OSPFv3 on the switches in the IPv6 PIM-SM domain to ensure network-layer reachability
among them. (Details not shown)
2. Enable IPv6 multicast routing and IPv6 administrative scoping, and enable IPv6 PIM-SM and MLD.
