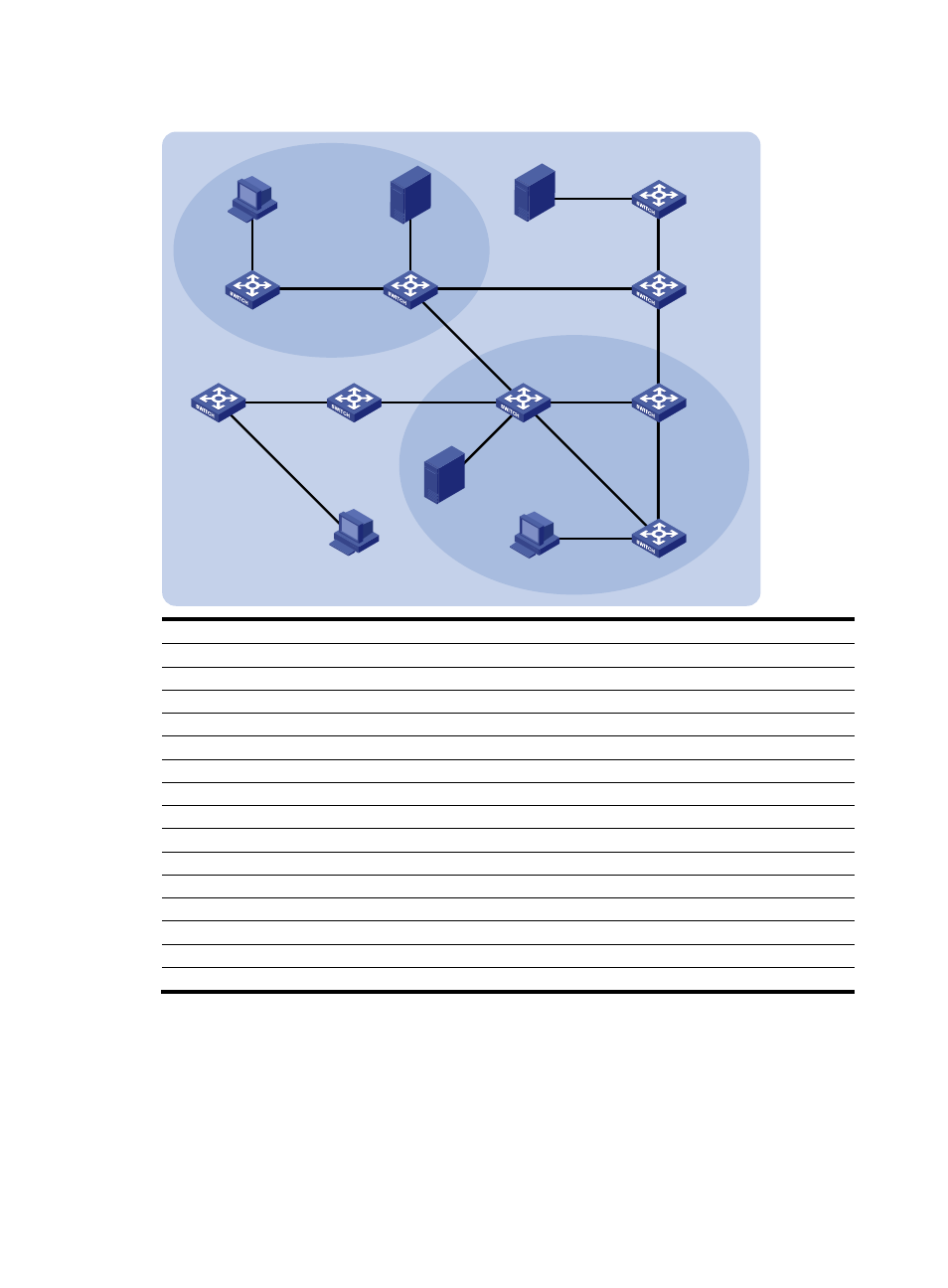

Figure 55 Network diagram for PIM-SM admin-scope zone configuration
Switch A Switch B
ZBR
Switch C
ZBR
Switch D
ZBR
Switch E
Switch H Switch I
Switch F
Switch G
Source 3
Source 1
Source 2
Receiver
Host A
Vlan-int104
Vl
an-
int1
05
Vl
an
-int103
Vl
an
-int300
Vlan-int106 Vlan-int104
Vlan-int108
Vlan-int107
Vlan-int107
Vlan-int109
Vlan-int109
Vlan-int500
Vlan-
in
t1
05
Vlan-int108
Vlan-int400
Vlan-int110
Vlan-int110 Vlan-int106
Vl
an-
in
t600
Vlan-int100 Vlan-int200
Vlan-
int1
03
Vlan-int102 Vlan-int102 Vlan-int101
Vlan-int101
Admin-scope 2
PIM-SM
Global-scope
Admin-scope 1
Receiver
Host B
Receiver
Host C
Device Interface IP address Device Interface IP address
Switch A Vlan-int100 192.168.1.1/24 Switch D Vlan-int104 10.110.4.2/24
Vlan-int101 10.110.1.1/24 Vlan-int108 10.110.7.1/24
Switch B Vlan-int200 192.168.2.1/24 Vlan-int107 10.110.8.1/24
Vlan-int101 10.110.1.2/24 Switch E Vlan-int400 192.168.4.1/24
Vlan-int103 10.110.2.1/24 Vlan-int105 10.110.5.2/24
Vlan-int102 10.110.3.1/24 Vlan-int108 10.110.7.2/24
Switch C Vlan-int300 192.168.3.1/24 Switch F Vlan-int109 10.110.9.1/24
Vlan-int104 10.110.4.1/24 Vlan-int107 10.110.8.2/24
Vlan-int105 10.110.5.1/24 Vlan-int102 10.110.3.2/24
Vlan-int103 10.110.2.2/24 Switch G Vlan-int500 192.168.5.1/24
Vlan-int106 10.110.6.1/24 Vlan-int109 10.110.9.2/24
Switch H Vlan-int110 10.110.10.1/24 Source 1 — 192.168.2.10/24
Vlan-int106 10.110.6.2/24 Source 2 — 192.168.3.10/24
Switch I Vlan-int600 192.168.6.1/24 Source 3 — 192.168.5.10/24
Vlan-int110 10.110.10.2/24
Configuration procedure
1. Configure IP addresses and unicast routing.
Configure the IP address and subnet mask for each interface as per Figure 55 . (Details not shown)
Configure OSPF on the switches in the PIM-SM domain to ensure network-layer reachability among them.
(Details not shown)
2. Enable IP multicast routing and administrative scoping, and enable PIM-SM and IGMP.
