Redundant System Installation
High-Power TWTA Satellite Terminals
3–4
Rev 1
1

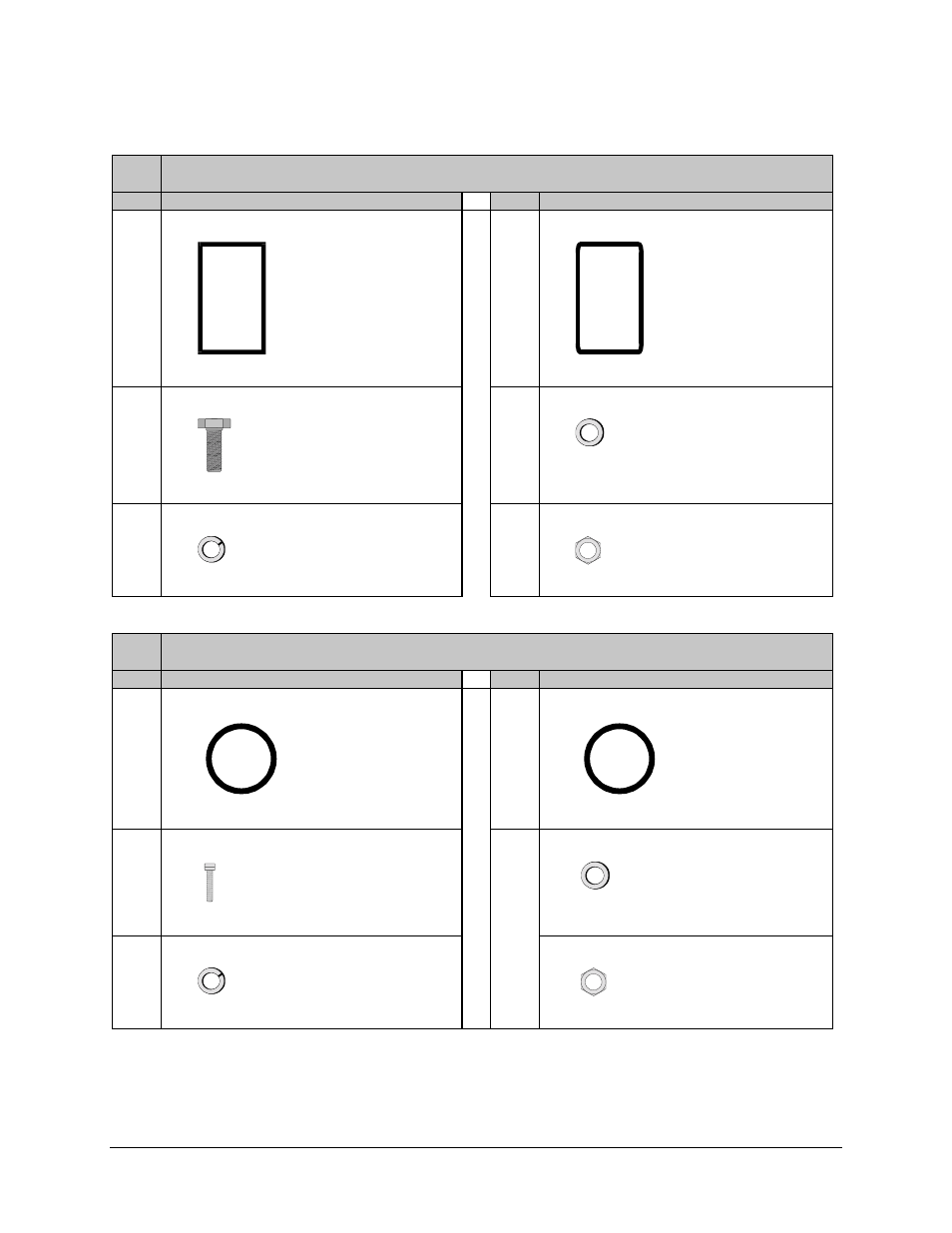

C-band waveguide connector kit (EFData Part # KT5115), which includes:
Qty.
Description
Qty.
Description
1
Gasket — full-thickness.
EFData Part # FP/5195.
1
Gasket — half-thickness.
EFData Part # HW/GKT-CPR137G.
8
10-32 x 1” bolt.
EFData Part # 03P1097.
16
#10 flat washer.
EFData Part # HW/10-FLT.
8
1/4” split lockwasher.
EFData Part # HW/10-SPLIT.
8
10-32 hex nut.
EFData Part # HW/10-32HEXNUT.
1
Ku-band waveguide connector kit (EFData Part # KT/2820), which includes:
Qty.
Description
Qty.
Description
2
O-Ring, -024, BUNA, black.
EFData Part # 32P1037.
2
O-Ring, black neoprene.
EFData Part # 32P1039.
8
6-32 x 7/8” socket head cap screw.
EFData Part # HW/6-32X7/8SHCS.
16
#6 flat washer.
EFData Part # HW/6-FLT.
8
#6 split lockwasher.
EFData Part # HW/6-SPLIT.
8
6-32 hex nut.
EFData Part # HW/6-32HEXNUT.
