Single Thread System Installation High-Power TWTA Satellite Terminals
2–6 Rev.1

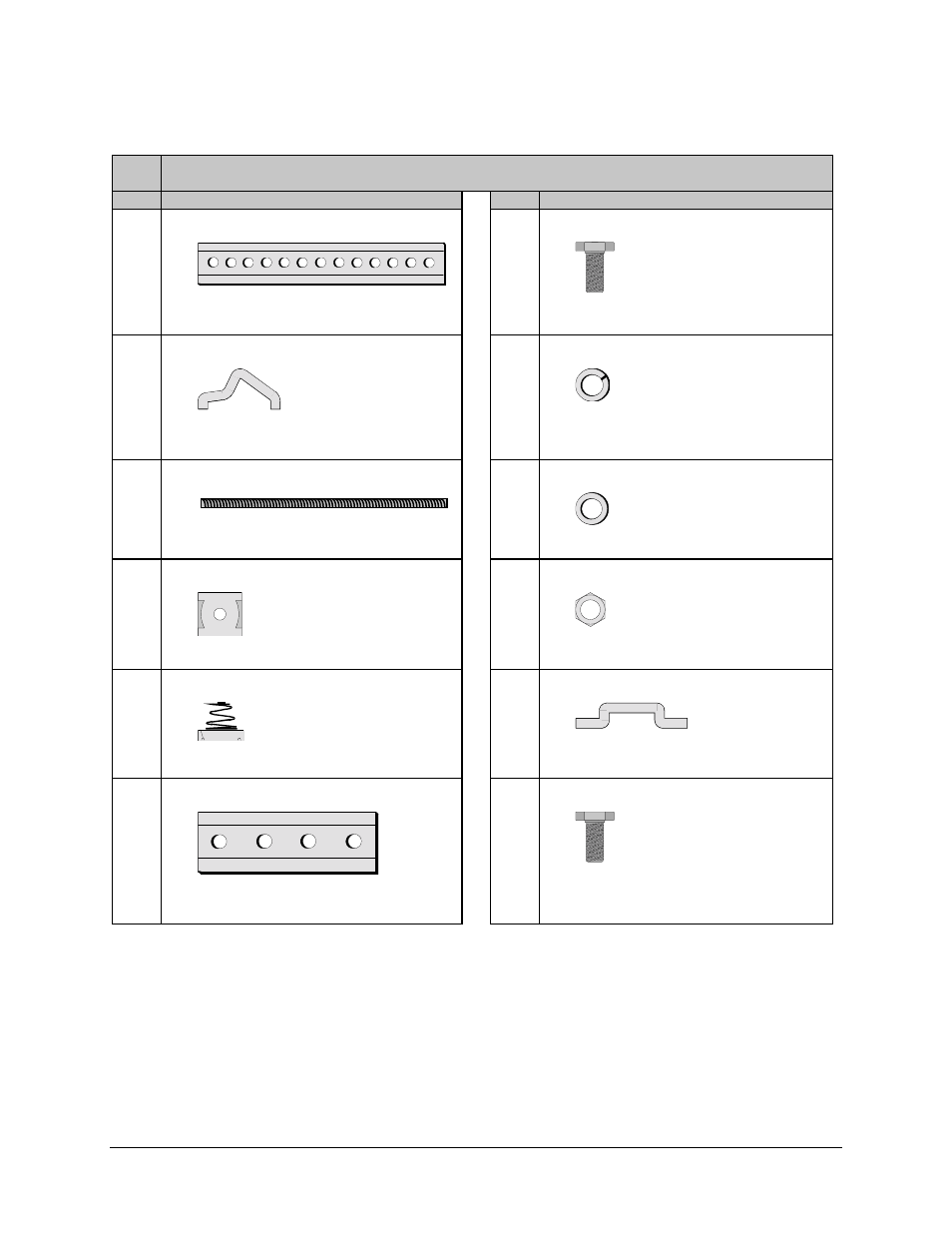

1 Hardware kit (EFData Part # KT/5032), which includes:
Qty. Description Qty. Description
4 Unistrut — 14” long.
EFData Part # FP/3595.
Used for round and square pole mount only.
4 5/16-18 x 1” bolt.
EFData Part # HW/5/16-18X1BLT.
8 Pipe block.
EFData Part # HW/BLK-PIPE2-8.
Used for round pole mount only.
24 5/16” split lockwasher.
EFData Part # HW/5/16-SPLIT.
4 Threaded rod, 5/16-18 x 14”.
EFData Part # HW/RD5/16-18X14.
Used for round and square pole mount only.
24 5/16” flat washer.
EFData Part # HW/5/16-FLT.
8 Flat fitting plate, 5/16”.
EFData Part # HW/FIT-PLT-5/16.
16 5/16-18 hex nut.
EFData Part # HW/5/16-18HEXNT.
16 5/16-18 spring nut.
EFData Part # HW/5/16-18SPNUT.
2 Spar support bracket.
EFData Part # FP/3175.
Used for spar mount only.
2 Unistrut — 8” long.
EFData Part # FP/3481-1.
Attaches directly to TWTA.
8 5/16-18 x 1.25” bolt.
EFData Part # HW/5/16-18X1.25.
